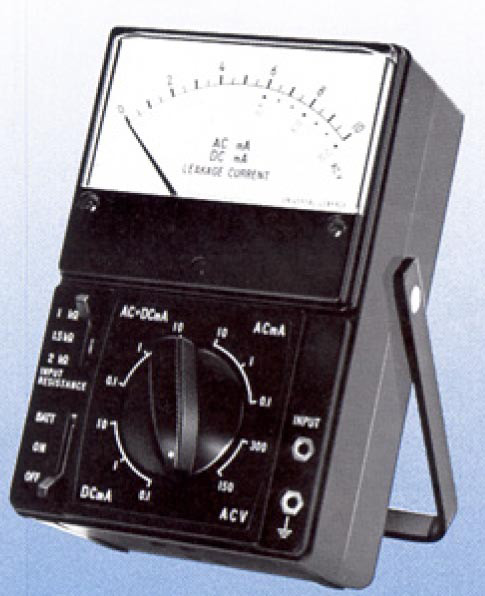

YOKOGAWA Tester analogic scurgeri curenti 322610 (Analog)

Cod: YOKOGAWA 322610




Brosura produs PDF, 0.52 Mb


Descriere

Handy Universal tester for checking electrical appliance
Leakage Current Tester (AC/DC)



Features:

  • Three input resistance ranges - 1,1.5 and 2 kO
  • Four functions - AC current, DC current. DC + AC current and AC voltage measurements
  • ± 2.5% full scale accuracy
  • 100µA full scale value
  • Shockproof indicator using taut band movement
  • Built-in overload protection circuit
  • Handy and easy to carry
  • Shielded case, resistant to high-frequency fields





Examples of Application Areas

  • Electrothermal appliances
    Room heating (electric stove), cooking (toaster), hair-dressing (electric curling iron, hair dryer and curlers).
  • Motor operated appliances
    electric fan, floor polisher, washing machine, electrical pump, refrigerator, electric drill, vending machine, lawn mower and electrical toys.
  • Light source appliances
    Duplicator, projector, photographic enlarger, and electrical disinfector.
  • Electronic appliances
    TV receiver, microwave ranges, and high-frequency welding machine.
  • Other appliances
    Burglar alarm, medical and dental equipment, noise suppressor, and portable generator.
