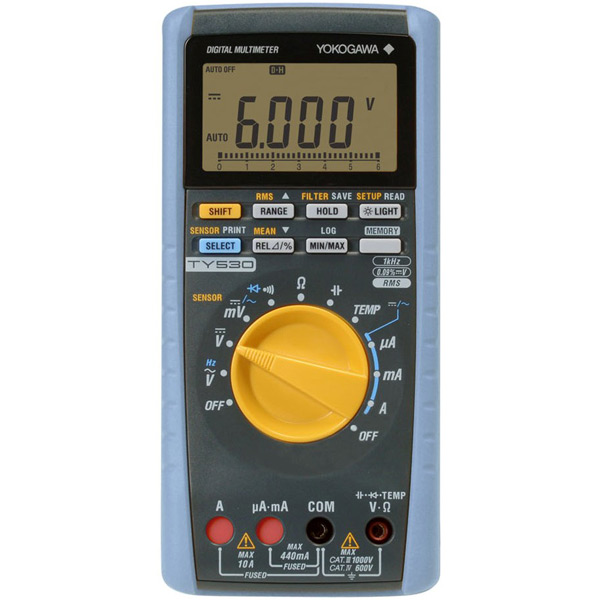

3.5-digit (6000-count dual display, 31-segment bar graph display), RMS type Measurement Functions: Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature, Logging-mode memory for 1600 data (TY530 only)

Features:

High Precision
Basic accuracy 0.09%
True RMS measurement
Ensured Field Site Safety
Conforms to safety standards EN61010-1, 1000V CAT III, 600V CAT IV
Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
New Functions for Yokogawa Middle Class DMMs
Current direct reading function provided by current clamp sensor (optional)
Low-pass Filter (LPF)
Logging-mode memory for 1600 data
USB communication, application software (Optional DMM communication package) TY530 only
Closed Case Calibration
3-year Warranty

Alte produse YOKOGAWA

YOKOGAWA AQ6360 TELECOM PRODUCTION OPTICAL SPECTRUM ANALYZER 1200 - 1650 NM

• Wavelength range: 1200 to 1650 nm
• Wavelength resolution: 0.1 to 2 nm
• High wavelength accuracy: ±0.02 nm
• High dynamic range: 55 dB
• Wide measurement range: +20 to -80 dBm

YOKOGAWA AQ1000 REFLECTOMETRU FIBRA OPTICA IEFTIN

• Wavelengths: 1310 / 1550 nm
• Dynamic ranges: 32 / 30 dB
• Size: 185 mm (W) � 116 mm (H) � 56 mm (D) ( 7.3" (W) � 4.6" (H) � 2.2" (D) )
• Weight: 660 g ( 1.46 Lbs )

YOKOGAWA DIGITAL RESISTANCE METER 7556

• Wide operating rangeability (1 Ohm range to 100 M Ohm range)
• Full remote controlability via the standard RS232C serial, or optional GP-IB interfaces
• Software based calibration
• Printer output of measurement, and statistical analysis results

YOKOGAWA GS200 DC VOLTAGE / CURRENT SOURCE

• Voltage source up to ±32 V and current source up to ±200 mA
• 51/2-digit, 120000-count output resolution
• Voltage and current simple monitoring feature (optional)
• Programmable output up to 10,000 points
• Built-in USB mass storage device
• Channel expansion through synchronous operation

YOKOGAWA CLESTE POWERMETRIC MASURATORI PUTERE CW10 (SINGLE-PHASE)

• AC / DC Power up to 600 kW, AC / DC Voltage max. 1000 V, AC / DC Current max. 600 A
• True RMS for AC .
• Harmonics 1st to 25th order
• Power fluctuation using the ACA Inrush and Peak hold functions.
• Frequency, Resistance, Continuity, Diode check, Power factor.

YOKOGAWA - MINI MANOMETRU MT10

• High reliability (with silicon resonant sensor)
• Compact
• Accuracy: ± (0.04% of rdg + 0.03% of F.S.) (130 kPa model)

YOKOGAWA DIGITAL INSULATION TESTER MY40

• 3 1/2-digit LCD;
• For each rating, you can save as many as 20 measurements at desired memory address numbers.
• Four AA (R6P) batteries the tester retains the measured resistance for approximately 5 seconds after the MEAS switch is turned off.

YOKOGAWA PROCESS MULTIMETER CA450

• Simultaneous 24 V loop power and mA measurement
• HART mode setting with loop power (250 OHM resistance)
• High accuracy signal measurement: DC mA 0.05%/30.000 mA
• Handheld DMM function
• Peak/Hold function for DCS power peak-to-peak measurement

YOKOGAWA AQ7280 OTDR REFLECTOMETRU MODULAR TESTARE FIBRA OPTICA

• Reliability: Robust design for operating under harsh field conditions. Proven operating system assuring stability, prompt response, and superior protection against software virus attacks.
• Ease-Of-Use: Dual operation mode by multi-touch touchscreen and hard-key buttons. Fully automatic measurement and easy-to-read analysis reports through new software applications.
• Speed: Lightning startup time. Multi-tasking operation to enhance productivity. Immediate reporting via wireless connectivity.

YOKOGAWA MULTIFUNCTION CALIBRATOR CA71 CA51

• Autostep function
• Changes the output value in step form based on the setting from the divided output (n/m) function. Changes can be sourced automatically every 10% or 25%.
• Online communication (CA71 only) RS-232C-compliant optically isolated interface
• Sweep function
• Linearly increases or decrease the output. The increasing/decreasing time can be set to either 16 or 32 seconds.
• Memory function
• Source values and measurements forming individual value sets can be saved to or read from the Handy Calibrator's internal memory (maximum 50 value sets).
• Temperature monitor function
