Corelator detectie si localizare precisa scurgeri apa Seba Sebalog Corr

Cod: Seba-KMT Sebalog-Corr




Brosura produs PDF, 1.2 Mb


Descriere

Sebalog Corr



  • Correlation with up to 8 sensors at the same time
  • GPS navigation directly to the leak
  • Radio communication to the sensors

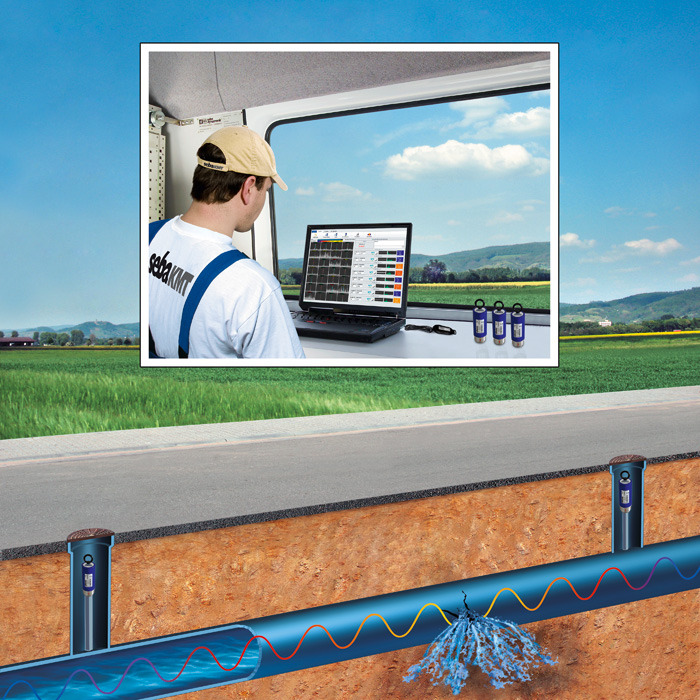

  • No staff needed for night measurement
  • Sound velocity assistant (V-assistant)
  • Unique pinpointing mode

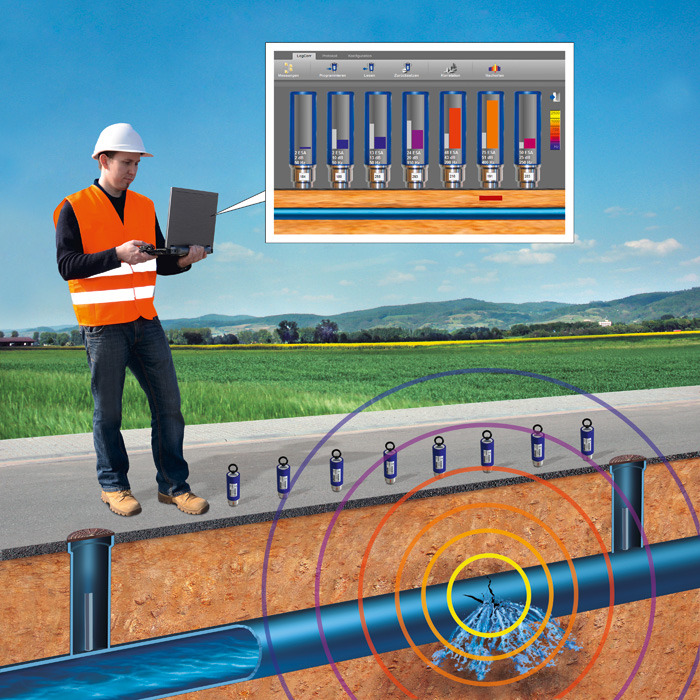

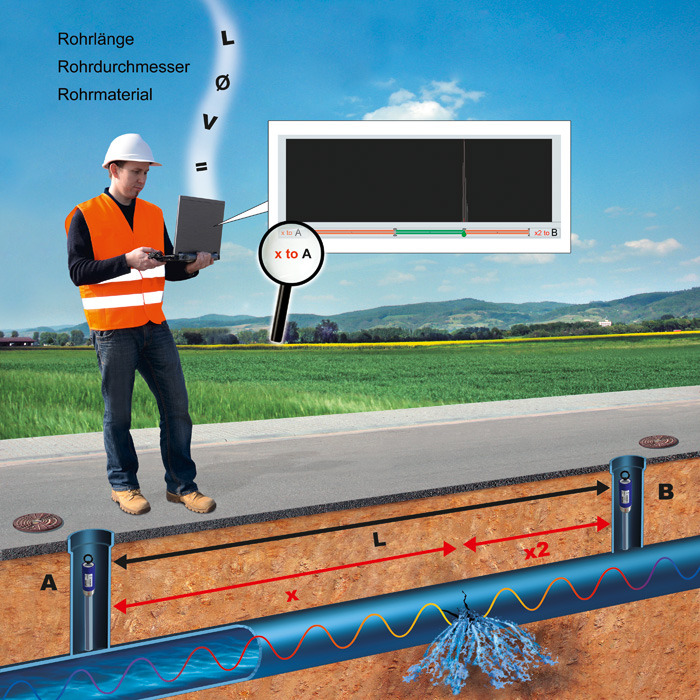

Sebalog Corr is the new generation of leak pinpointing. This hybrid form of a field correlator and a set of noise loggers combines the independent operation mode and the high number of the loggers sensors with the correlators ability to calculate the exact distance to the leak using the sound it makes. This form of leak detection allows the user to locate even the most difficult leaks quickly and precisely, thus saving valuable time and money. The unique pinpointing feature enables the operator to confirm correlations directly on site.

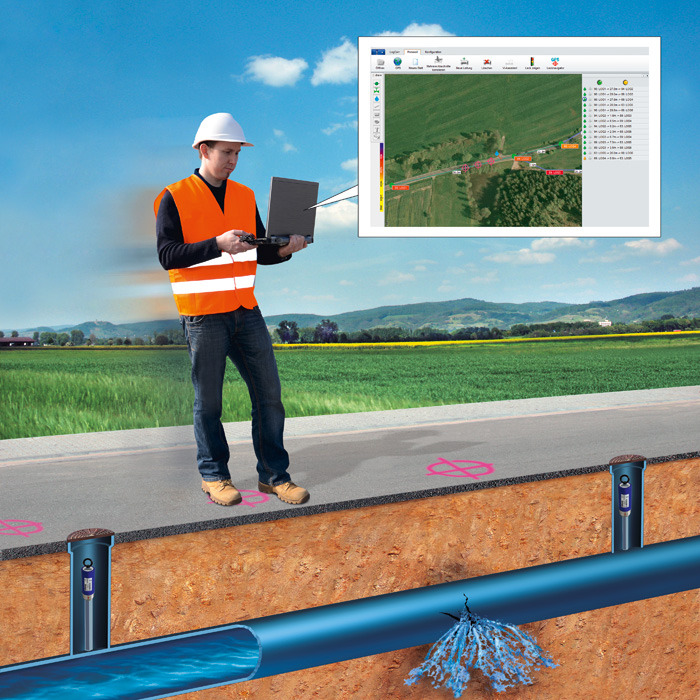

One of the most remarkable features of Sebalog Corr is the leak navigator. Just like a navigation system, the GPS-based leak navigator leads the user to the previ-ously correlated leak position. During navigation, the position of the user is continuously displayed on the map so that he knows exactly in which direction he should go to reach the leak.

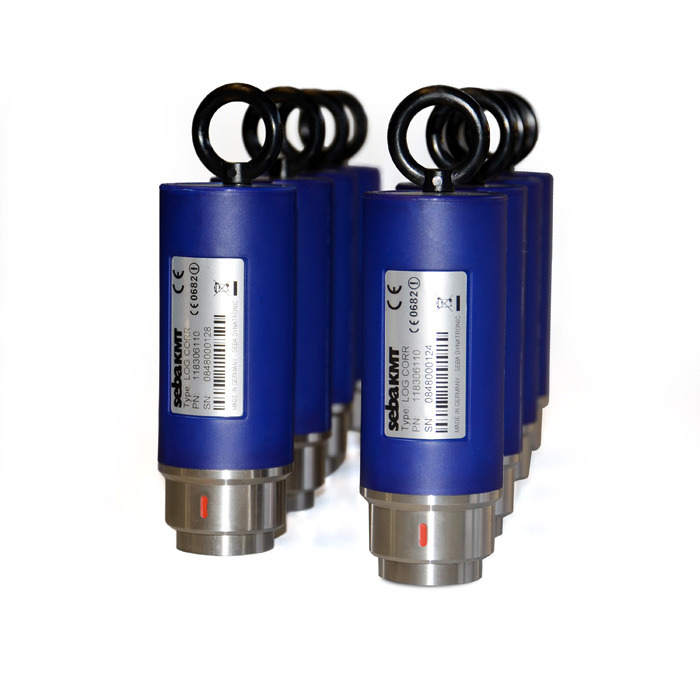

Due to their small size, Sebalog Corr’s sensors fit even into the smallest valve chambers. The chamber lids can be closed during the measurement. Accident risks are thus eliminated, and measurements can be carried out with no additional protection for traffic or pedestrians.

Key benefits:

  • Interfata wirless USB
  • GPS navigation directly to the leak
  • Radio communication to sensors
  • No staff needed for night measurement
  • Unique pinpointing mode





Accesorii standard

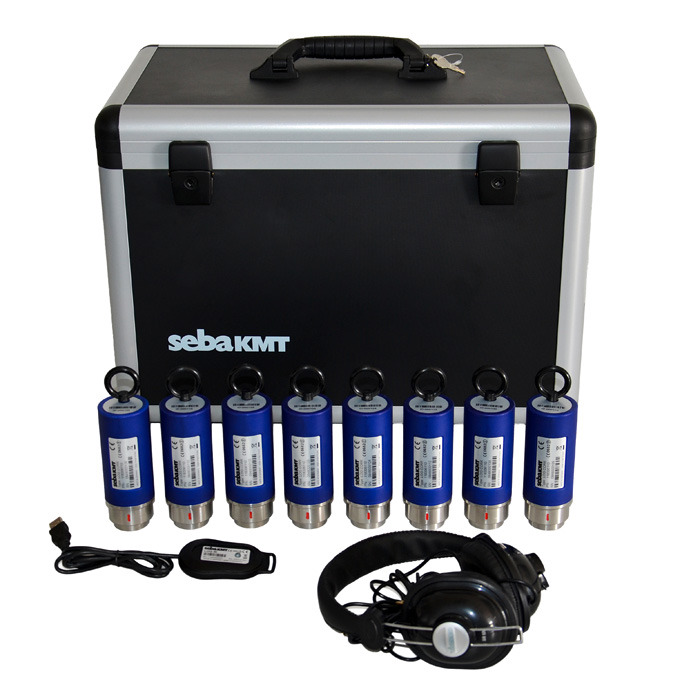

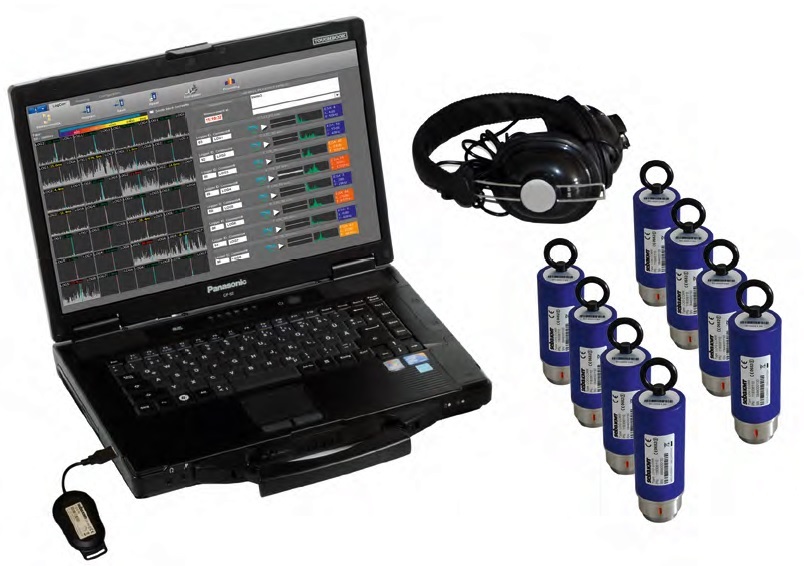

Scope of delivery

»» 3, 6 or 8 sensors

»» 3, 6 or 8 angle adapter

»» 3, 6 or 8 tripod adapter

»» Radio interface Sebalog RI with USB cable

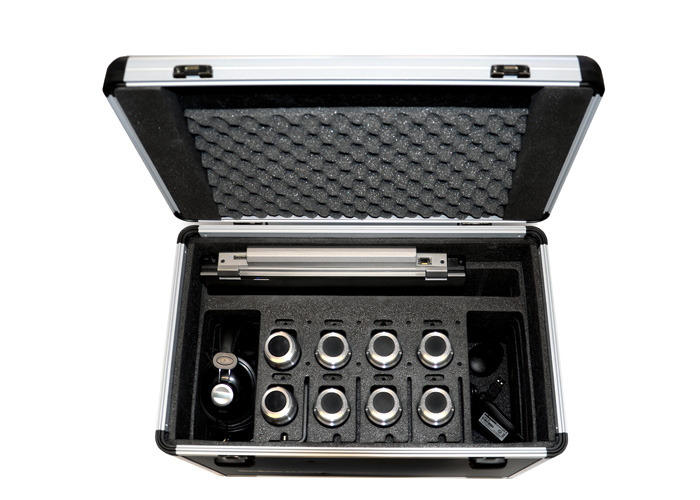

»» Carrying case

»» Application software

»» GPS receiver

»» Headset

»» Manual



Optiuni recomandate





Alte produse SEBAKMT

SISTEM INCERCARE CABLURI MEDIE TENSIUNE SEBA VFL SINUS 45KV

• VLF sine wave 45 kV with integrated tanDelta
• compact, robust, and portable
• high-performance test and diagnostic system for medium voltage cables
• Performs cable withstand testing, cable diagnosis, and sheath fault pinpointing
• Automatically adjusts the test frequency to the cable length
• Eliminates hazards to the user and guarantees limited damage to the cable
• Easy field operation with no need for external computer



SISTEM LOCALIZARE EXACTA DESCARCARI PARTIALE DEFECTE CABLURI MEDIE TENSIUNE SEBA PD LOC

• Localizarea exacta a descarcarilor partiale în retele cu cabluri mixte
• Localizarea defectelor în mansoanele cablurilor monofilare
• Operare usoara în teren



DETECTOR PORTABIL SCAPARI SI SCURGERI DE APA SEBAKMT HL50-BT

• Operare simplă cu doar două butoane funcţionale
• Filtru de frecvenţă
• Întotdeauna gata de utilizare datorită bateriei reîncărcabile
• Micfoane externe de sol pot fi conectate pentru detectarea profesională a scurgerilor



RECEPTOR AUDIOFRECVENTA LOCALIZARE TRASEU CABLURI, SELECTIE SI IDENTIFICARE, DEFECTE MANTA SEBA FERROLUX FLE 10

• Ergonomic si cu greutate redusa pentru o operare comoda
• SignalSelect pentru identificarea clara a traseului chiar si în zone congestionate
• Soft PC extins PC pentru evaluarea datelor de masura



DETECTOR GAZE ARSE DE LA CABLURI DEFECTE INGROPATE FARA SCOATEREA DE SUB TENSIUNE SEBA FAULT SNIFFER

• Customers can stay connected
• Fault location with no supply interrupt
• Reliable avoidance of incorrect excavations
• Fast and easy location of faults
• Can be used on straight or branched networks
• Handy size, easy to transport
• No pre-location required
• Accuracy in the decimetre range
• Sensitive to several specifi c gases and therefore suitable for any insulation material

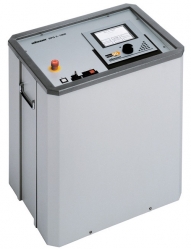

SISTEM DE LOCALIZARE DEFECTE PE CABLURI DE MEDIE SI JOASA TENSIUNE SEBA SFX 5-1000
