Trusa incercari cablu cu joasa frecventa Seba VLF CR-20

Cod: Seba-KMT VLF-CR-20




Brosura produs PDF, 0.79 Mb


Descriere

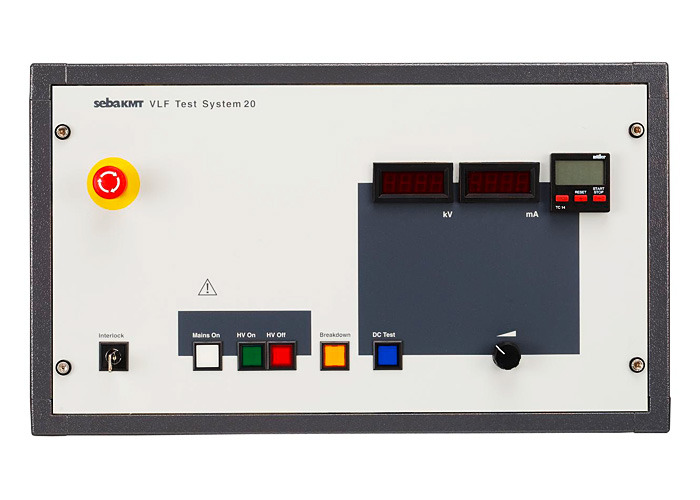

VLF CR-20

In accordance with most regulations, cables and joints must be tested after installation or repair. For this test the breakdown strength of the cable is tested.

The portable VLF Test System 20 kV of Seba KMT can be used to test the cables in conjunction with the according local regulations for operating voltage levels up to 11 kV for new cables and 16 kV for aged cables at 3 µF cable capacity.

By using the patented Seba KMT 0.1 Hz Cosine Square Wave Voltage, weak and for further operation critical spots in PE, XLPE but also in paper cables are brought to a controlled breakdown very fast without causing additional damage or ageing to the cable insulation.

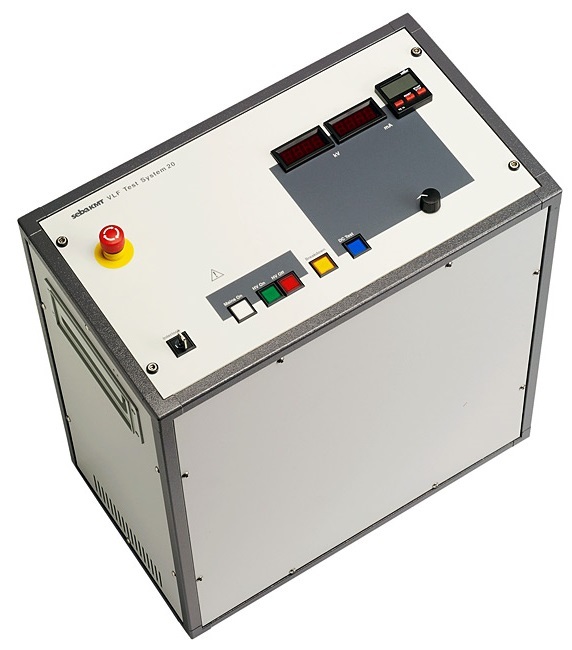

The weight of 50 kg make the VLF Test System 20 kV a powerful, universal and at the same time portable unit.

_ The patented change over principle in combination with

the recycling of energy stored in the cable capacity

results, in comparison to other methods, in a lower

weight, less energy consumption and much higher test

capacity.

_ The high test capacity of 3 µF permits the simultaneous

testing of all three phases.

_ The method is officially recommended by the two VDE

Standards 0276-620 and 0276-621.

_ Independent researches shows that VLF test is done

most effectively with the 0.1 Hz cosine square wave

shape compared to any other VLF wave shape or

frequency.

_ VLF is the most economic method for testing PE and

XLPE cables. DC test is not applicable for these cable

types.

_ controlled output voltage



Accesorii standard

Scope of Delivery

_ Basic unit

_ AC mains cable

_ Earthing cable 4 m

_ HV-connection cable 4 m

_ Accessory bag

_ Operating manual



Optiuni recomandate

Options

_ Breakdown recognition and automatic shut-down.

_ VLF / DC leakage current measurement
