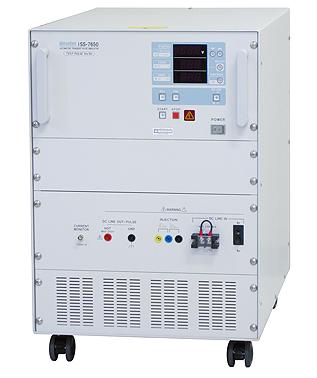

Pulse 5a and Pulse 5b generating unit
A built-in 60V/30A Coupling Network allows independent operation.
Capacitive - resistive (inductive) discharge circuitry in strict conformity with the standard and with the actual car environment.
Equipped with a programmable clip circuit that can produce Pulse 5b clipped waveform in steps of 0.1V without externally attaching a zener diode.
Pulse 5b clipped waveform is pre-eminent in smoothness.
Serial or parallel pulse coupling selectable.
Pulse repetitions controller provided (30s to 999s and 1 to 999 pulses)

SPECIFICATION

Parameters		Specifications
Counter		1~ 999 Count, 7 Segment LED
Cycle Timer		30s ~ 999s , 1s step 7 Segment LED
Interlock		Control by External Input, Contact Point or Open Collector L Level: 0V ~ 0.4V , H Level: 2V ~ 4V
Warning Lamp		Option Model: 11-00008A
Current Monitor	Output Unit	10mV/A
	Characteristic Freq	DC ~ 150kHz, Approx. -3dB
	Error Tolerance	±5% (DC Measure Value) ±0.8Amax (Offset) at 25°C
	Withstanding Voltage	DC60V (BNC Terminal Exterior: FG)
	Form	BNC Terminal (Oscilloscope Wave Verification 1M ohm Input)
Circuit Breaker		Rated Current 40A
Remote Control From PC	Interface	Option: Optical Interface Unit Model: 07-00022A
	Software	Option: Remote Control Software Model: ISS-7601
	Compatible OS	Windows XP
DUT capacity		DC60Vmax, 30Amax
Power supply		AC100V, 110V, 120V, 200V, 220V, 240V ±10% (50/60Hz)
Operating temperature and humidity		23°C±5°C / 25~75% (No dewing shall occur.)
Dimensions		(W) 430 X (H) 670 X (D) 660 mm (Projections excluded)
Weight		Approx. 100kgs
Power consumption		Charging: Approx. 600VA, Standby: Approx. 150VA
Standard accessories		Instruction manual Spare fuse 6.3A Interlock plug DC injection selection plug Current monitor coaxial cable DC input cable 2m Output cable 2m Short lead cable (for waveform verification)

Pulse 5a	12V system	24V system
Output Voltage (Us)	20V ~ 100V±10% (0.5V step)	20 ~ 200V±10% ( 0.5V step)
Output Resistance (Ri)	0.5 ohm ~ 8 ohm (0.5 ohm step)	1 ohm ~ 8 ohm (0.5 ohm step)
Duration (td)	40ms, 100ms, 200ms, 350ms, 400ms ±20%	100ms, 200ms, 350ms, 400ms ±20%
Rise time (tr)	10ms-5ms/ +0ms	10ms-5ms/+0ms

Pulse 5b	12V system	24V system
Output Voltage (Uss)	10V ~ 40V ±10% (0.1V step)
Open Voltage (Us)	100V>=Us>Uss	200V>=Us>Uss
Duration (td)	Varies dependent on Pulse 5a (1ms step)
