Simulator descarcare electrostatica circuite semiconductoare ESD NoiseKen ESS-6002/ 6008

Cod: NoiseKen ESS-6002/ 6008



Brosura produs PDF, 1.08 Mb


Descriere

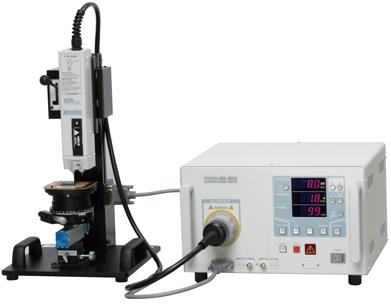

The ESS-6000 series ESD simulators are testers specifically designed to carry out ESD sensitivity testing of semiconductor devices to standards such as MIL-STD-883, EIAJ ED-4701 and others. Included are the Human Body Model (HBM) and Machine Model (MM) probes.

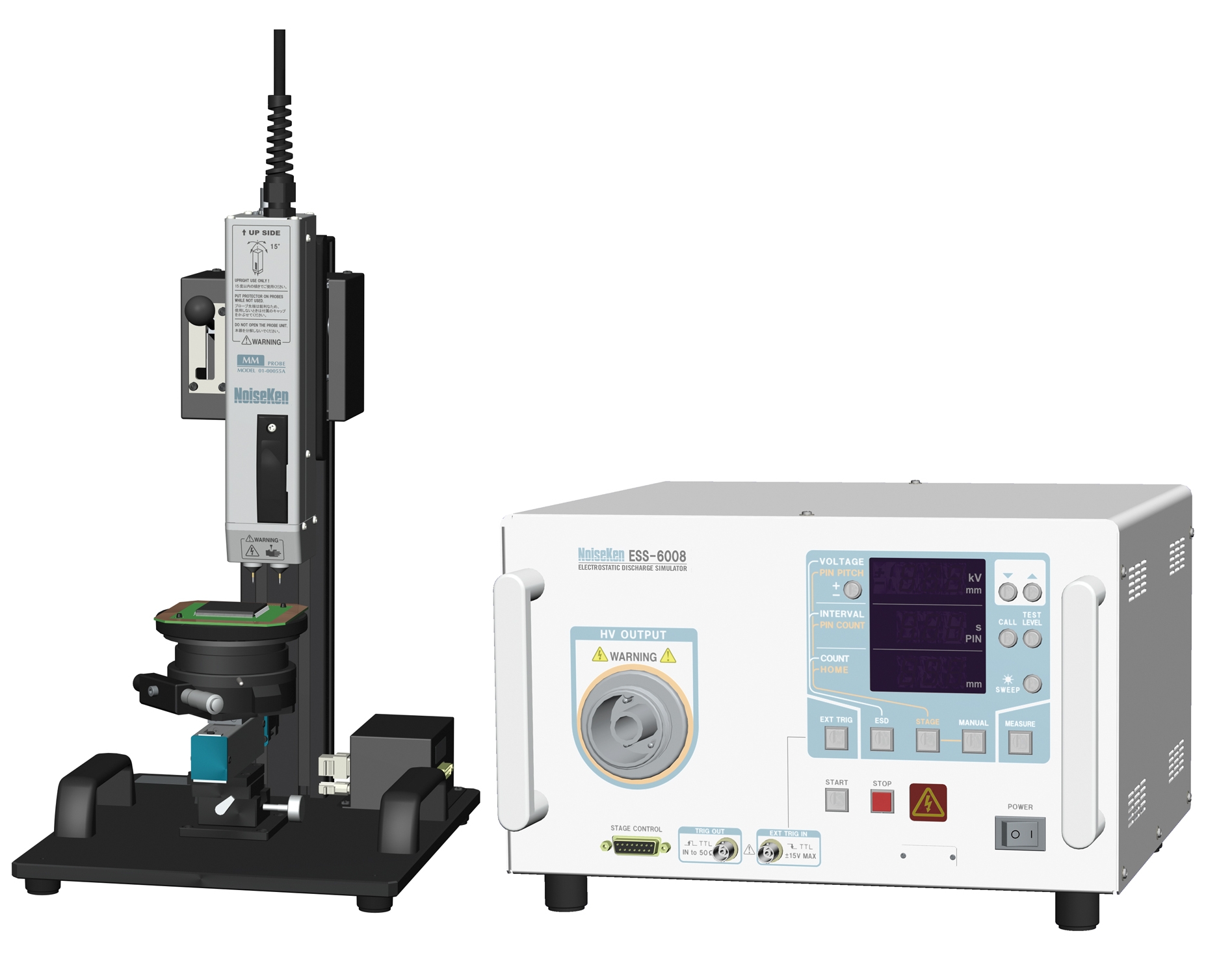

As a DUT interface, select either Free Type Probe Stand where virtually any package type can be connected by means of a pair of miniature test leads or Semi-automatic Precision Type Probe Stand providing automatic and precise pin-to-pin feeding with a minimum 0.01mm resolution.



  • ESS-6002 Output voltage: 10V ~2.0kV ±10% (1V step)
  • ESS-6008 Output voltage: 100V ~ 8.0 kV±10% (10V step)
  • A simple probe stand and test fixture plus a pair of miniature test leads meeting many different kinds of device packages <Free Board Type>
  • Narrow pitch DUT can be tested in semi-automatic manner <Semi-automatic Precision Type>
  • Each probe has a coaxial interface with an external measuring instrument.
  • External trigger input and output terminals are provided.



COMPLIANT STANDARDS



Human Body Model (HBM)

Machine Model (MM)

AEC-Q100-002-Rev.D Jul.2003

AEC-Q100-003-REV-E  Jul.2003

ESDA ANSI/EOS/ESD-STM5.1-2001

ESDA ANSI/ESD STM5.2-1999

IEC 61340-3-1Ed.1.0 2002

IEC 61340-3-2 Ed.1.0-2002

IEC 60749-26 Ed.1.0 2003

IEC 60749-27 Ed.1.0 2003

JEDEC JESD22-A114E Jan 2007

JEDEC JESD22-A115A Oct.1997

JEITA EIAJ ED-4701/300 Aug.2001 Test Method304

JEITA EIAJ ED-4701/300 Aug.2001

MIL-STD-883G Method 3015.7 Mar.1989







Main Unit (Models: ESS-6002/ESS-6008)


Item

Specifications

ESS-6002

ESS-6008

Output voltage

10V ~2.0kV ±10% (1V step)

100V ~ 8.0 kV±10% (10V step)

Polarity

Positive & Negative

Discharge Repetition

0.3~99s (0.1s step to 10S, 1s step over 10S)

Number of discharge

1~99 or continuous

Automatic output voltage ramping

Available

Dimensions and weight

(W)340 x (H)199 x (D)300 mm (projection excluded)

Weight

Approx. 6 kgs



Free Type probe Stand <Model:18-00075A>

Item

Specifications

Dimensions and weight (stand)

(W)200 x (H)330 x (D)290 mm
Approx. 1.5 kgs

Dimensions and weight (test fixture)

(W)100 x (H)27 x (D) 180 mm (projection excluded)
Approx. 0.2 kgs.

Vise gap

110 mm

Other

V-shape block (Polyoxynethylene) included





Semi-automatic Precision Type Probe Stand  <Model:18-00076A>

The precision mechanism offers a 0.01 mm movement resolution for the probe electrodes (hot and ground pins), enabling ESD pulses to be exactly applied to each target pins in turn.

Item

Specifications

Dimensions and weight (stand)

(W)250 x (H)400 x (D) 300 mm
Approx. 7 kgs.

Maximum DUT size

40 mm x 40 cm, minimum lead pitch: 0.4 mm

X axis

Manual, by dovetail groove and feed screw mechanism, Distance: 20mm

Y axis

Motor drive (maximum speed 13 mm/s) by stepping motor & ball screw mechanism
Distance: 40mm, Y resolution: 0.01 mm

T axis

Manual, 360°

Z axis

Manual, 20 mm, hand press (spring built-in)

Origin adjustment

Manual
