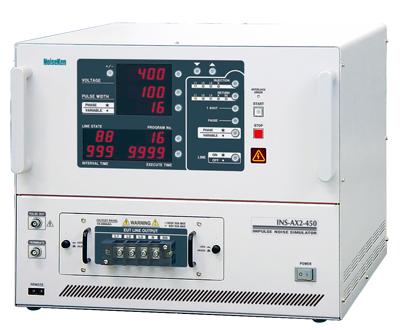

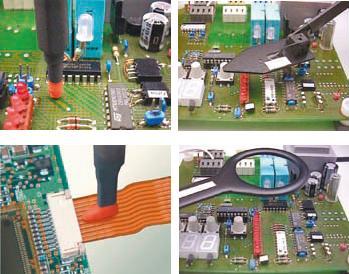

Simulator impulsuri zgomot testare EMC NoiseKen INS-AX2

Cod: NoiseKen INS-AX2



Brosura produs PDF, 2.93 Mb


Descriere

The INS-AX2 series simulators are the advanced version of the conventional manually operated INS-4020/4040 simulators, maintaining the identical interference signal characteristics while offering a new level of ease of use.





  • INS-AX2-220/250 : 0.01 ~ 2.00kV±10% at 0.01kV step Pulse output voltage
  • INS-AX2-420/450 : 0.01 ~ 4.00kV±10% at 0.01kV step Pulse output voltage
  • An innovative,motor driven coaxial switch mechanism eliminates the need to manually plug and unplug coaxial connectors, allowing a preset test sequence to be carried out seamlessly including pulse width and coupling mode changes, automatic voltage ramp and others.
  • As well as manual control, the simulator can be remote-controlled through a fiber optic computer interface. A Windows control software package is supplied as an included accessory.
  • Floating output
  • 8 pulse widths installed: 10ns, 50ns, 100ns, 200ns, 400ns, 500ns, 800ns and 1000ns
  • Internal switchable terminators
  • Easily changeable and safety-interlocked outlet panel (EUT interface)
  • 3 channels EUT fail input





SPECIFICATIONS



Item

Model

INS-AX2-220/250

INS-AX2-420/450

Pulse output voltage

0.01 ~ 2.00kV±10% at 0.01kV step

0.01 ~ 4.00kV±10% at 0.01kV step

±0.04kV allowance for <0.1kV setting
When the output is terminated by the internal resistors.

Output polarity

Positive or negative

Pulse

Pulse width

50, 100, 200, 400, 500, 800, 1000ns ±10%, 10ns±3ns

Rise time

<1ns

Output impedance

50 ohm system (53.5 ohm)

Pulse repetition mode

Variable

10ms ~ 999ms±10%

16ms ~ 999ms±10%

Phase

Injection phase angle 0 to 360 degrees±10 degrees
EUT power supply:>AC90V, 50/60Hz±10%

1 shot

Single pulse generation, each time the 1 SHOT button is pressed.
Synchronized output with phase angle setting in PHASE mode

Power capacity of EUT

INS-AX2-220:
Single phase AC240V/DC65V 20A
INS-AX2-250:
3-phase (4-wire) AC500V/DC250V 50A
50/60Hz±10%

NS-AX2-420:
Single phase AC240V/DC65V 20A
INS-AX2-450:
3-phase (4-wire) AC500V/DC250V 50A
50/60Hz±10%

Power supply

AC 100V~240V±10%, 50/60Hz±10%

Power consumption

110VA

Operating temperature and humidity range

15 ~ 35°C, 25 ~ 75% (No dewing shall occur.)

Dimensions

W 430 x H 350 x D 470mm, projection excluded

Weight

INS-AX2-220: Approx. 30Kg
INS-AX2-250: Approx. 38Kg


INS-AX2-420: Approx. 30Kg
INS-AX2-450: Approx. 38Kg

Mercury relay unit

Model: 04-00014A

Model: 04-00015A



Accesorii standard

STANDARD ACCESSORIES



INS-AX2-220/420

INS-AX2-250/450

Outlet panel (Single phase terminal block type) Model:18-00067A AC240VDV65V20A max

Outlet panel (3-phase terminal block type) Model:18-00068A AC500VDV250V50A max

Power cable
Remote control software (CD-ROM) Model: 14-00033A
Optic-RS232C converter Model 07-00017A
Optical cable (5m)
D-sub conversion connector
Instruction manual (for the simulator and remote control software)



Optiuni recomandate

TRIANGULAR PULSE ADDITION (Factory Option)



Parameters
Specifications
Output pulse waveform
Triangular pulse
Pulse output voltage
2kV (220/250) and 4kV (420/450) max (when the output is terminated by the internal resistors)
Output polarity
 Positive or negative
Pulse
Duration
1µs±30%
Rise time
<40 ns





Alte produse NOISEKEN

SISTEM SCANARE/ MASURA EMISII RADIATII ELECTROMAGNETICE CAMP APROPIAT NOISEKEN EPS-3007

• Provides an amplitude versus frequency plot for each antenna probe position and field intensity distribution map by a single scan
• Electric and magnetic fields are separately detected
• 3D graphical representation and zoom capability for a given area
• Comparison before and after a modification or improvement
• Scanning by a single antenna probe to minimize error between each measurement point
• 3GHz maximum frequency response (option)
• Standard included three kinds of antenna probes (Probe A, Probe B and Probe C)


SIMULATOR EVENIMENTE TRANZITORII RAPIDE DECLANSATE NOISEKEN FNS-AX3

• 4.8kV maximum peak voltage
• 2MHz pulse repetition rate
• Conforming to IEC/EN 61000-4-4 (Second Edition-2004)
• Reverse polarity per burst
• Automatic ramp operation
• Manual, IEC level and sequence modes


GENERATOR IMPULSURI 2B, 4 SIMULARE TRANIZITORII TESTARE EMC AUTOMOTIVE NOISEKEN BP4610

• Pulse 2b and Pulse 4 generating unit
• +-60V 10A DC - 150kHz built-In bipolar amplifier
• Functions as the DUT power supply for testing with the other pulses
• Upgradeable to 15A or 30A by use of an optional external power supply

SIMULATOR IMPULSURI ZGOMOT TESTARE EMC NOISEKEN INS-4020/ 4040

• INS-4020 (2kV) : 0.01 ~ 2.00KV ±10% with 50 ohm load, 10V step
• INS-4040(4kV) : 0.01 ~ 4.00KV ±10% with 50 ohm load, 10V step
• Automatic ramp operation for output voltage, phase angle and repetition period
• Floating output
• Coupling mode selection by plugging the supplied coaxial connector to the selected port
• Easily changeable mercury relay unit


SIMULATOR DESCARCARI ELECTROSTATICE ESD NOISEKEN ESS-B3011/ESS-L1611

• ESS-B3011 : 0.2 to 30.0kV
• ESS-L1611 : 0.2 to 16.0kV
• EN/IEC 61000-4-2 Ed2 Compliant (B3011/L1611)
• ISO 10605 Ed2 Compliant (B3011/L1611)
• 3 pre-checking function taking the confirmable test into the account (B3011/L1611)
• Discharge detecting function to realize the air-discharge confirmation (B3011/L1611)
• Lightest Discharge Gun in the market to lighten the continuous operation (GT-30R)

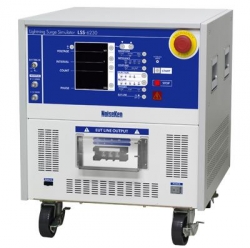

SIMULATOR IMPULSURI INALTA TENSIUNE ECHIPAMENTE DE ILUMINARE NOISEKEN LSS-6230
