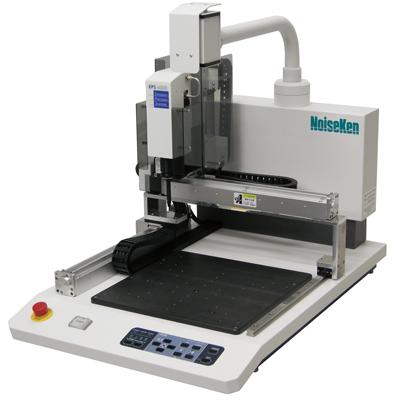

Sistem masura emisii radiatii electromagnetice placi PCB NoiseKen EPS-6000

Cod: NoiseKen EPS-6000



Brosura produs PDF, 0.41 Mb


Descriere

  • Measurable up to 8GHz in the frequency range
  • 4 axes (X, Y, Z, ?) measurements with minute step minimum 0.1m realized
  • Equivalent distance measurement to parts on PCBs even the heights are different

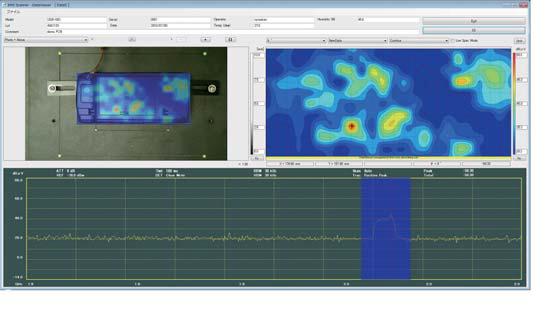

  • Composite figure of photo of the measured PCB and the measurement data realized
  • Rich magnetic field probes in the figures, sizes and Vertical/Horizontal directions

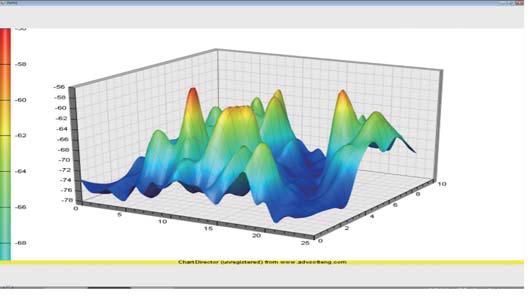

  • Versatile display for the measurement data as 2 dimensions, 3 dimension, and equiangular line realized
  • Comparison display with the previous measured data available
  • Many brands spectrum analyzers correspondent
  • Suitable for CISPR 22 (Oct. 2010) regulation





SPECIFICATIONS



Specifications

EPS-6000-3G

EPS-6000-6G

Measurement Method

Scanning with near field magnetic probe (height measurement laser attached)

Measurement Area

 (W)300 × (D)270 × (H)100mm, f0,45,90,135°

Min. Step

0.1 mm

Position accuracy (X, Y, Z)

±0.01mm (in one direction movement)

Position accuracy (?)

±1.0°

Measurement Frequency Range *

150kHz to 3GHz

100MHz to 6GHz (to 8GHz as option)

Measurement Probe

01-NVF020: Elliptic probe for detection in horizontal magnetic field 1mm

01-NVF010: Elliptic probe for detection in horizontal magnetic field 1mm

Dimensions

(W) 490 X (D) 670 X (H) 610 mm

Mass

39 Kg. (Only main unit. Spectrum analyzer and PC excluded)

Power Supply

AC 100V to 240V

Power Consumption

300W (Max.) (For spectrum analyzer excluded)

Operating Temperature

 0°C to 40°C (without dew)

Camera

 4 million pixel (High-definition camera)

Correspondent Spectrum Analyzer

See the following table ("Correspondent spectrum analyzer" )

 * Measurement frequency ranges depend on the measurement probes.





CORRESPONDENT SPECTRUM ANALYZER



Manufacturer

Model Nos.

ROHDE&SCHWARZ

FSC, FSL, FSP, FSV, FSG, FSQ

ANRITSU

MS2661C, MS2665A, MS2667C, MS2668C,MS2681A, MS2683A, MS2687B

Agilent Technologies

ESA Series(E44xx), PSA Series(E444x), CXA(N9000A), EXA(N9010A), MXA(N9020A), PXA(N9030A)

ADVANTEST

U3700Series

* Please contact us about the other spectrum analyzers.



Accesorii standard

MAIN UNIT STRUCTURE



Unit

 Items

 Quantity

EPS-6000

Main unit

 Capture card (Experss Card)

1 pc.

Probe for measurement

1 pc.

Probe for robotic calibration

1 pc.

RF cable (SMA-N 2m)

1 pc.

USB cable (Type A-B, 1.8m) PC - Main unit

1 pc.

Control cable for spectrum analyzer  (GP-IB/LAN/USB)   PC-Spectrum analyzer

1 pc.

Video cable PC - Main unit

1 pc.

AC cable

1 pc.

Software

Software Specialized application (data print-out, browsing function and plural PC installation possible)
Core library DotNET Frameworks3.5
Measurement driver NI VISA2.5 onward or Agilent IO Libraries Suite 15.5 onward
Driver kinds NI-DAQ, Robot driver, Camera driver, DirectX

1 set



Optiuni recomandate

OPTIONAL PROBES For EPS-6000-3G



Model Nos.

Designation

Measurement frequency

Coil direction

01-NHC010

Circular probe for detection in vertical magnetic field 1mm

150kHz to 3GHz

Horizontal

01-NHC020

Circular probe for detection in vertical magnetic field 2mm

150kHz to 2GHz

Horizontal

01-NHC050

Circular probe for detection in vertical magnetic field 5mm

150kHz to 1GHz

 Horizontal

01-NVC010

Circular probe for detection in horizontal magnetic field 1mm

150kHz to 3GHz

Vertical

01-NVC020

Circular probe for detection in horizontal magnetic field 2mm

150kHz to 2GHz

Vertical

01-NVC050

Circular probe for detection in horizontal magnetic field 5mm

150kHz to 1GHz

Vertical

01-NVF020

 Elliptic probe for detection in horizontal magnetic field 2mm

150kHz to 3GHz

Vertical

01-NVF050

Elliptic probe for detection in horizontal magnetic field 5mm

150kHz to 3GHz

Vertical

01-NVF100

Elliptic probe for detection in horizontal magnetic field 10mm

150kHz to 2GHz

Vertical





Model Nos.

Sensitivity *1

Resolution *2

MSL Gap width *3

01-NHC010

-48dB

 0.35mm

0.1mm

01-NHC020

-40dB

0.55mm

0.2mm

01-NHC050

-30dB

1.22mm

0.5mm

01-NVC010

 -46dB

0.39mm

0.1mm

01-NVC020

 -37dB

0.60mm

0.2mm

01-NVC050

-30dB

1.20mm

0.5mm

01-NVF020

 -45dB

 0.29mm

 0.2mm

01-NVF050

-37dB

 0.66mm

0.5mm

01-NVF100

-34dB

1.26mm

1.0mm





OPTIONAL PROBES For EPS-6000-6G



Model Nos.

Designation

Measurement frequency

Coil direction

01-NVF005

Elliptic probe for detection in horizontal magnetic field 0.5mm

100MHz to 8GHz

Vertical

01-NVF010

Elliptic probe for detection in horizontal magnetic field 1mm

100MHz to 6GHz

Vertical







Model Nos.

Sensitivity *1

Resolution *2

MSL Gap width *3

01-NVF005

-56B

0.10mm

0.05mm

01-NVF010

-47dB

0.17mm

0.1mm



 *1 Typical attenuation value between MSL (Micro strip line) and the probe at 1GHz.

 *2 Typical value between max. value and (Max.value - 6dB) (Half-width).

 *3 Width between micro strip line and the probe
