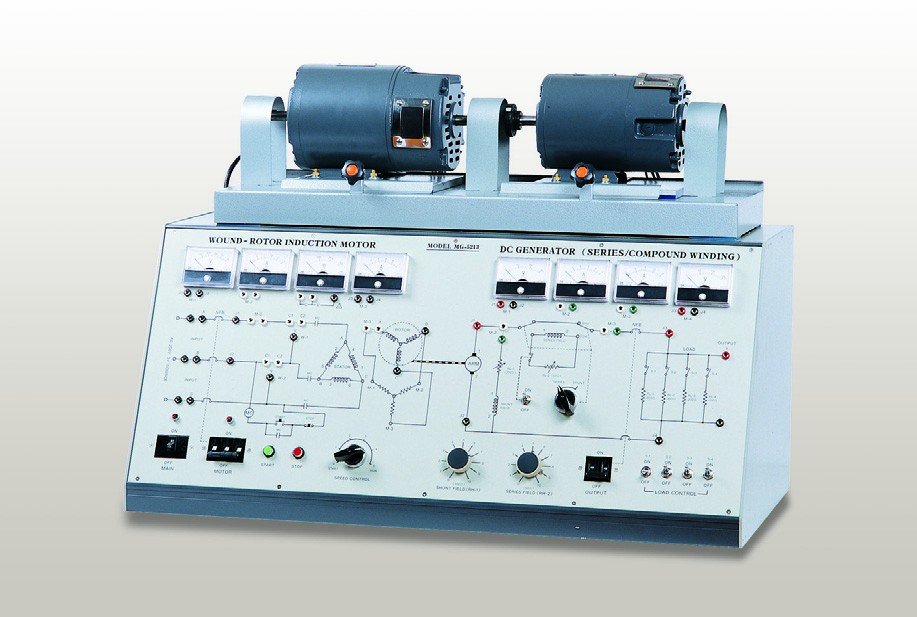

Wound-Rotor Induction Motor/ DC Generator MG-5213

Cod: MG-5213




Brosura produs PDF, 0.57 Mb

Descriere

MOTOR SECTION

  • Winding Type : Wound Rotor & Stator
  • Speed : 1750 RPM
  • Frequency : 60Hz
  • Input Voltage : 208V, 3-phase(Y-connection : 360V)
  • Full Load Current : 1.7A
  • Number of Pole : 4 Poles
  • Horsepower : HP
  • Speed Controller : 0~50?(3-way)
  • Indication Meter : 2-current, 1-voltage, 1-RPM(digital), 1-watt
  • Over Load Trip : 3A
  • Shunt Field Rheostat : 0~300?, 50W
  • Series Field Rheostat : 0~50?, 50W
  • Indication Meter : 2-current, 2-voltage
  • Overload Trip : 4A
  • Load Resistance : 48?~480?, 500W



GENERAL CHARACTERISTICS

  • Main Input Voltage : AC 220V, 3-phase
  • Rating : 30 minutes
  • System Dimension : 920(W) x 670(H) x 460(D)mm
  • Weight : 90kg



GENERATOR SECTION

  • Winding Type : DC Shunt/Compound
  • Speed : 1750 RPM
  • Number of poles : 2 poles
  • Output Power : 115V, 1.5A
  • Field Excitation : self-excitation



ACCESSORIES

  • Patch Cords(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Experimental Manual : 1ea
