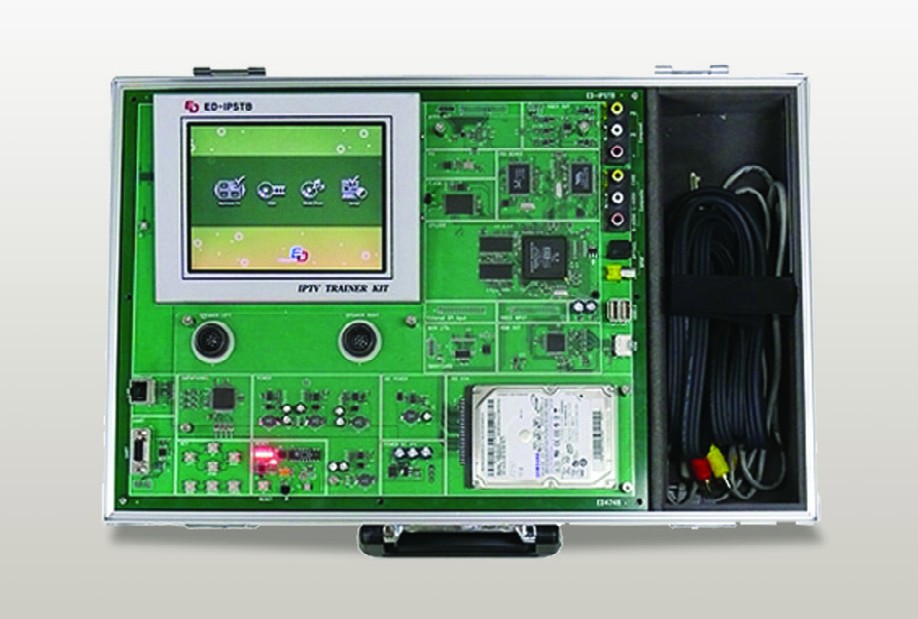

IPTV Trainer Kit EP-IPSTB

• Mountable 5 type of MCU(8051,PIC, Atmega128, Atmega8535, Upd78f0547)
• Practice of various communications such as RS-232 USB and Ethernet
• Practice from basic I/O exercises to sensor application exercises with 5 MCU’s
• Possible of various practice by using of Bread Board and I/O Expansion Port
• Storage of sensor data display and Excel data using UI(LabVIEW)



• Basic to advanced learning courses for Embedded Linux
• Intel PXA255(400MHz) high-performance microprocessor
• 6.4TFT LCD, Ethernet 2port, Serial 3port, PCMCIA/CF/MMC interfaces
• FPGA Chip(Altera Cyclone 120,000Gate) mounted for SoC experiments
• Reliable hardware and abundant experiment contents for programming



• Monitoring of internal data through the 4-digit LED
• LD (Ladder Diagram), IL (Instruction List), SFC (Sequential Function)
• Stepping motor and DC motor installed as standard for rotational / linear movement
• Basic 3 Modules : Input Controller, Output Simulator, Count & Position Simulator



• 5 experimental modules for power electronics covering basic theory and applied experiments

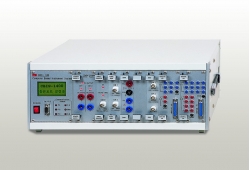

• Capable of real-time measurements on PC by linking it to CBIS-1400 model
• By connecting PC to the Docking station, contact control is implemented on MMI(HMI) based software
• Report on experimental results & electronic manual on PC



• Measurement of induction motor’s power efficiency
• How to use electro-dynamometer
• Torque Measurements by dynamometer
• Use of separately excited DC generator



• MITSUBISHI MELSEC-Q PLC programming and execution
• Modularization of the devices essential for PLC I/O commands
• Experiments for basic command and various application program
• Binary data experiments with 4digits digital switch and display unit
• Various types of QCPU can be selected from a basic to hyper performance



• Load characteristics of shunt-wound and compound generators
• Generator’s speed and output by winding type
• Loss and efficiency comparisons by winding type



• Best solution for IPTV platform and IPTV Digital Broadcasting System in applications and experiments
• High-performance Microprocessor SIGMA EM8622 for powerful multimedia functions
• IPTV Set-top Box, Media Player, Digital Multimedia Processing



• 15 experimental modules for basic electricity/electronics and analog & digital circuits
• Capable of real time measurement on PC by linking it to CBIS-1400 model.
• By connecting PC to the Docking station, contact control is implemented on MMI(HMI) based software
• Report on experimental results & electronic manual on PC



• The electronic manual operable on PC comes with ED-1450 and e-learning is optimized by remote control of student’s operating program and evaluation of student’s online report in real time.
• Through DS-1410, it provides Variable Power Supply(VPS), Function Generator(FG), Analog Output, Digital Output needed for experiments.
