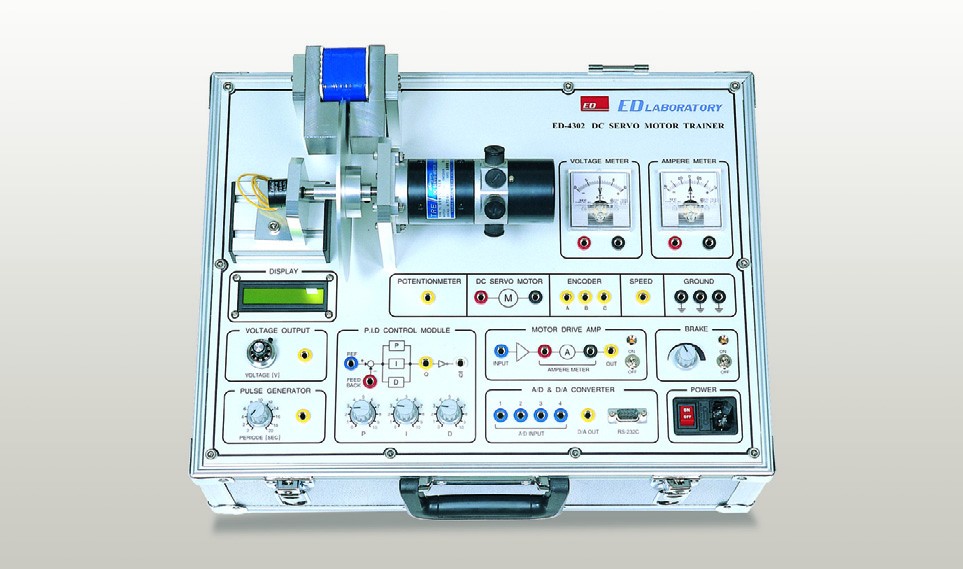

DC Servo Motor Trainer ED-4302

Cod: ED-4302



Brosura produs PDF, 0.57 Mb

Descriere

EXPERIMENTS

  • Principles of Servo Motor’s rotation
  • Characteristics of P control
  • PWM circuit for current control
  • Characteristics of PI control
  • Control system of Servo Motor
  • Characteristics of PID control
  • Brake’s load characteristics
  • Position control by potentiometer’s feedback



SPECIFICATIONS

CONTROL UNIT

  • Servo operation by reading in the input per control block
  • Speed control by the change of output pulse frequency
  • Encoder output and various types of output pulse measurement
  • Position and speed control by feedback
  • Built-in voltmeter and wattmeter
  • Monitors and controls the characteristics of operation by the software
  • Measures the motor’s load characteristics using a brake



DC SERVO MOTOR

  • Rating Output 100W, Built-in Encoder, 0~3000RPM : 1ea



OPERATING UNIT

  • PWM constant-current operation
  • Controls forward/reverse rotation by the positive supply voltage input
  • Complimentary type amplifier with high power for two-way direction control
  • A/D Converter (Built-in) : 4 channels
  • D/A Converter (Built-in) : 1 channel
  • Eddy Current Type Break (built-in)
  • Rotary Encoder (built-in Motor)
  • 500/Rev.
  • Signal Output Terminal (built-in)
  • LCD display device indicating the rotational angle and speed



ACCESSORIES

  • AC Power Cord : 1ea
  • Program CD : 1ea
  • User Manual : 1ea



Features:

  • 100W DC Servo Motor with a built-in encoder
  • Graphical display of functional block diagram on the surface
  • Speed and angle control by step operation and photo sensor
  • Display of the rotational speed and angle data using LCD
  • PC control and waveform output functions
  • Portable type with Aluminum Carrying Case
