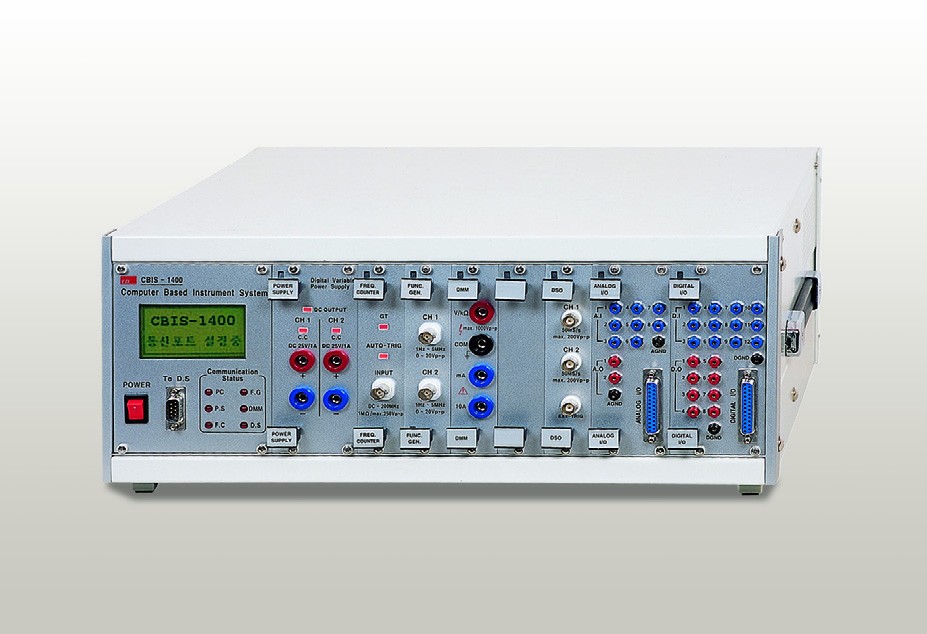

Computer Based Instrument System CBIS-1400

Cod: CBIS-1400



Brosura produs PDF, 0.56 Mb

Descriere

MEASURING INSTRUMENT

  • Digital Storage Oscilloscope
    • Channel : 2 channels, 2 x BNC(AC/DC Coupling) + 1
  • External Trigger
    • Sampling Rate : 50MS/s(when using 2 channels)
    • Bandwidth : 25MS/s
    • Resolution : 12bit
    • Accuracy : ±1%
    • Input Impedance : 1M?
    • Overload Protection : ±100V
    • Buffer Size : 128k
    • Interface : USB
  • Variable Power Supply
    • Number of Output Channels : 2 channels
    • Output : Variable Power Supply(0~25V, 1A)x2ea
    • Internal Resistance : < 15m?
    • Stability : < 2.5mV
    • Recovery Time : < 80µs
    • Load Regulation : < 0.05
    • Temperature Coefficient : 0.1%/°C
    • Ripple & Noise : < 5mV
    • Output Current : Max. 1A
      • Range : 100ms to 10s in 3 steps
    • Frequency : 10MHz TCXO
    • Accuracy : 1x10-^(6)(10°C~40°C)
    • Interface : USB
  • Function Generator
    • Number of Output Channels : 2 channels
    • Frequency Range
      • SINE : 1Hz~5MHz, SQUARE : 1Hz~1MHz, TRIANGLE : 1Hz~1MHz
    • Control Method : Variable adjustment on PC
    • Resolution : 0.1Hz
    • Output Voltage : 20Vp-p(10Vp-p into 50?)
    • Attenuator
      • Max. 60dB
      • 2step : 20dB±0.5dB, Variable : 0~20dB
    • DC Offset : ±5V(±2.5V into 50? load)
    • Sweep
      • Mode : Linear
      • Speed : 20ms~5s
      • Range : 1:100
    • Signal Type : SINE, SQUARE, TRIANGLE
    • Interface : USB
  • Multi-Function
    • Analog Input
      • Number of Input Channels : 8 channels
      • Resolution : 12bit
    • Input Range : ±10V
    • Analog Output
      • Number of Output Channels : 2 channels
      • Output Voltage : 0~5V
      • Output Current : 5mA
    • Digital Input
      • Number of Input Channels : 12 channels
      • Input Level : TTL logic level
    • Digital Output
      • Number of Input Channels : 8 channels
      • Output Level : TTL logic level
    • Interface : USB

 GENERAL CHARACTERISTICS

  • Input Voltage : AC220V, 50/60Hz
  • Weight : 12.5kg
  • Dimension : 479(W) x 194(H) x 416(D)mm

 ACCESSORIES

  • Connection Cord : 1set
  • AC Power Cord : 1ea
  • User’s Manual : 1ea
  • Program CD : 1set
