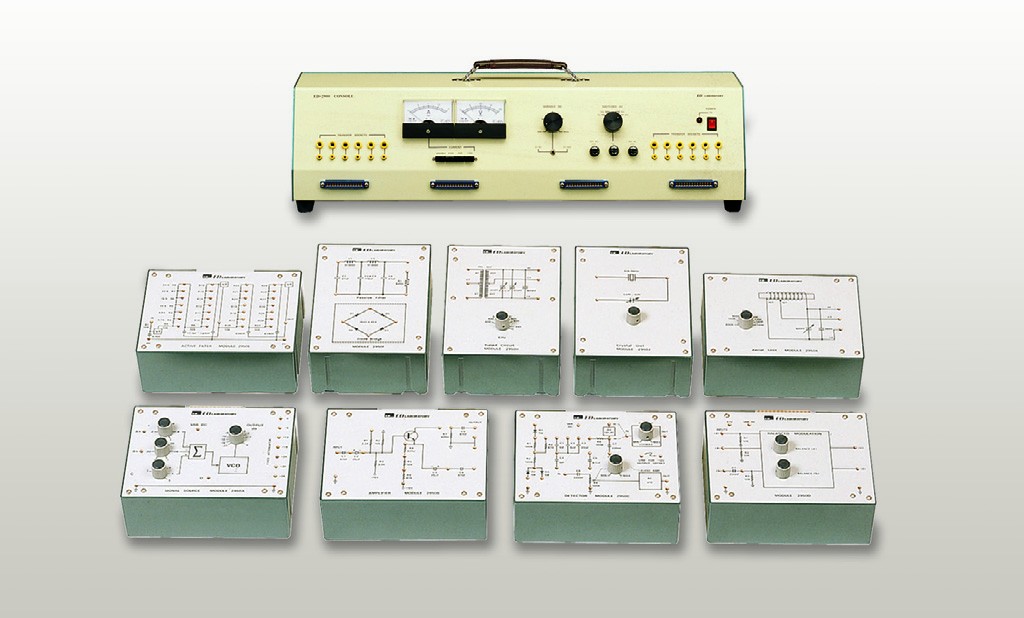

Electronic Communication Trainer ED-2950

Cod: ED-2950




Brosura produs PDF, 0.55 Mb

Descriere

CONSOLE (MAIN FRAME) ED-2900(P)

  • DC Output(Regulated) : 0~20V (3A), 15V (1A), 5V (2A) (Unregulated) : +50V (0.5A)
  • AC Output : Selectable : 5/10/15/20V, Fixed : 20V(0.5A)
  • Indicator : Voltmeter(4 ranges), Current Meter
  • Module Connection Capacity : 4 Modules
  • Input Voltage : AC 220V, 50/60Hz
  • Dimension : 710(W) x 190(H) x 195(D)mm
  • Weight : 12.7kg

GENERAL CHARACTERISTICS

  • Module Dimension : 166(W) x 65(H) x 250(D)mm
  • System Weight : 10kg

ACCESSORIES

  • Connection Cord(ø2 plug) : 1set
  • AC Power Cord : 1ea
  • Operating Manual : 1ea
  • Experimental Manual : 1ea

Features:

  • 10 experimental modules with a mainframe console
  • Basic concepts on the communication systems
  • Experiments on the broadcast frequency band tuning
  • Generation of AM and FM waves and detection theory
