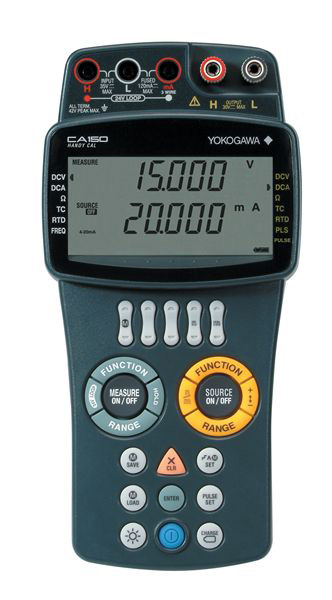

The CA150 Handy Calibrator is a comprehensive source and measure instrument for your calibration and equipment checking needs at maintenance sites. The CA150 can simultaneously source and measure voltage, current, resistance, Thermocouple, RTD, and Pulse signals.

Features:

Power Supply
- 6 AA size alkaline batteries
- AC adapter (sold separately)
- AC adapter specification: 100 to 240 VAC, 50/60 Hz, 1.4 A
- Dedicated NiMH battery (sold separately)
- OUTPUT: 12 VDC, 3 A
Auto power-off
- Approx. 10 minutes; it can be canceled by setting.
Operating Temperature/Humidity Range
- 0 to 40°C, 20 to 80 % RH (no condensation)
Storage Temperature Range
- -20 to 60°C 90%RH or less (no condensation)

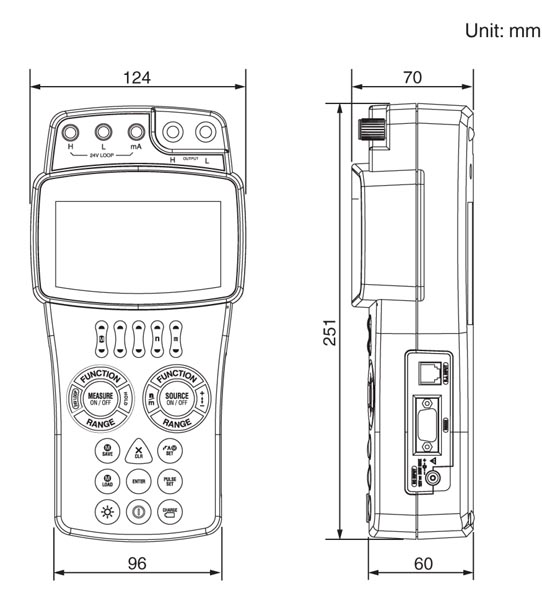

External Dimensions
- 251 x 124 x 70 mm
Conforming Standards Safety
- Safety EN61010-1
- EMC EN 61326 Class B;EN 55011 Class B Group1
- EN 61000-3-2; EN 61000-3-3, EN61326
