YOKOGAWA - DL350 Inregistrator portabil

Cod: YOKOGAWA - DL350 Portable ScopeCorder




Brosura produs PDF, 4.43 Mb


Descriere

A ScopeCorder is a portable oscilloscope and data acquisition solution in one device. The DL350 ScopeCorder ifeatures the deep measurement and recording capabilities you need in the lab in a compact modular instrument you can take into the field. For "œquick and easy"� troubleshooting or sophisticated mixed-signal datalogging with built-in analysis, the DL350 is a portable, powerful, and useable engineering tool that makes complete measurements completely portable.



Maximum 32-Channels Analog Input in a Battery-Operated Compact Chassis

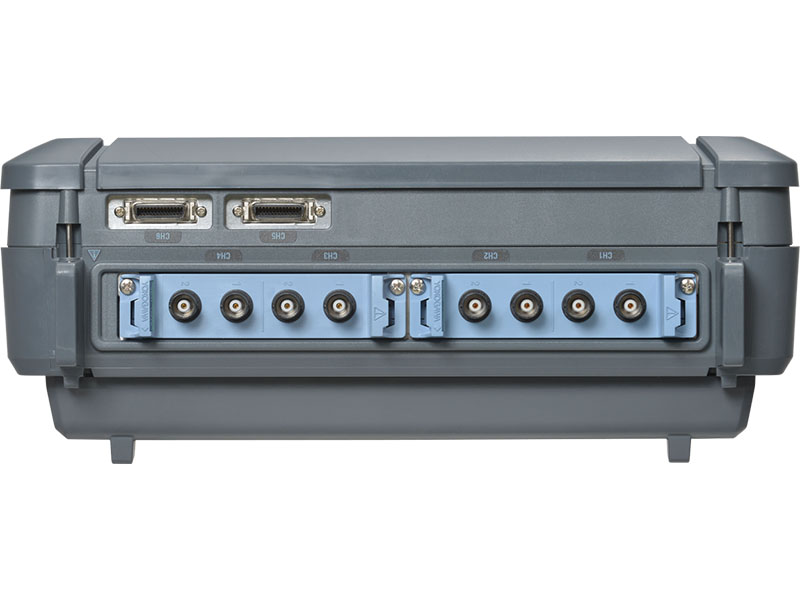

Choose from 18 types of input module and install up to 2 in a ScopeCorder at a time to configure a ScopeCorder up to 32 channels.

  • A4-sized compact chassis
  • Simultaneous isolated inputs maximum
    8-ch (1 MS/s) or 4-ch (100 MS/s)
    Scanning inputs maximum 32-ch
    (10 kS/s) or 16 channels (20 kS/s)
  • AC/DC/Battery operated



Vibration resistant

Instruments used for in-vehicle driving tests or field maintenance must be able to make reliable measurements. The DL350 has an aluminum inner frame and an external rubber bumper and conforms to the Japanese JIS D1601 standard for resisting in-vehicle shock and vibration.



Operates in freezing temperatures

Even when used with the rechargeable battery, the DL350 will operate in temperatures from 0 to 45 degrees. The DL350 brings high-quality laboratory measurements into the harsh environments of the field.



High-speed and long-term recording using large memory and direct recording onto an SD card

  • Up to 100 Mega-points per module memory
  • Up to 50 days continuous recording onto SD card



Ease of use in the field

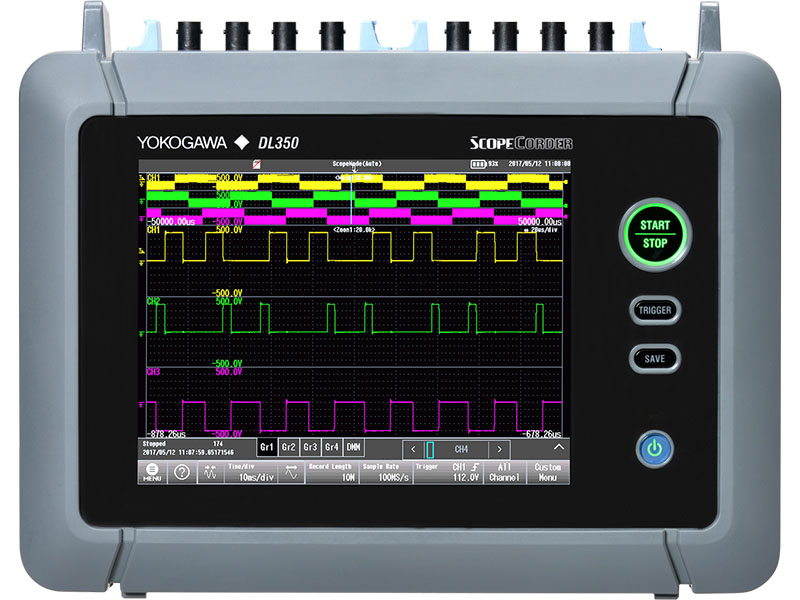

  • Intuitive operation using 8.4 TFT touch screen
  • A choice of two operating modes, oscilloscope or data recorder
  • DL350 Assistant Software helps configure settings and back up data on the spot



More than a test tool

The DL350 ScopeCorder combines in one compact instrument all the measurement and recording capabilities you need when you are away from your office or lab. The DL350 provides the flexibility you need when you need it: whether you are recording high-speed transients or long-term signals, using "˜quick and simple"™ setup or advanced features.



Use it like a data acquisition system or a long memory oscilloscope

Up to 5 Gpoints of data per module can be recorded directly to an SD card. This means that the DL350 can be used for continuous recording for up to 50 days. For high speed signals, up to 100 M points per module of internal memory is available to capture fast transients. This is up to 10,000 times more than other portable oscilloscopes or test tools and thus signals can be captured with higher sample rates or for much longer periods.
