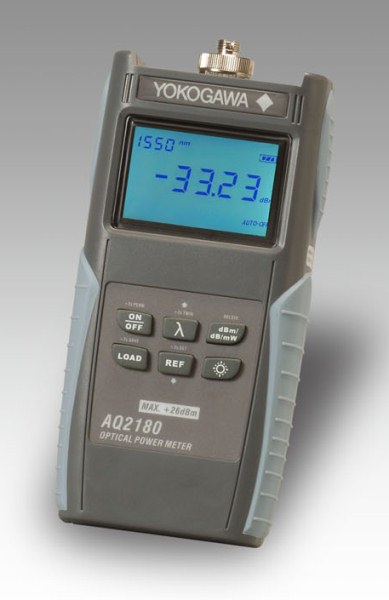

YOKOGAWA AQ2180 Powermetru optica portabil

Cod: YOKOGAWA AQ2180 Series Portable Optical Power Meter (w/ data storage/transfer)




Brosura produs PDF, 1.23 Mb

Descriere

Two versions of Power Meters to suit test application

+10 dBm max. power for Standard version (AQ2180),
+26 dBm max. power for High power version (AQ2180H)



Versatile data storage and transfer

Large memory capacity stores up to 999 measurement results
USB port offers convenient data transfer to a PC in CSV format using the standard software supplied.



Auto switching of measurement wavelength

Wavelength is automatically selected when the AQ4280 and AQ2180 are paired together. This feature eliminates the the extra step to manually setup the power meter wavelength and  eliminates possibility of invalid measurements due to misconfi gured wavelengths.



Power source

Standard dry cell batteries are easily obtained. (type : AA)
Rechargeable batteries may also be used to reduce the operational cost. Auto power-saving feature also extends battery life.



Basic items included as standard accessories.

SC, FC or other connector adapter
(Removable for convenient access for cleaning)
AQ2180 : FC,SC, LC, Ferrule2.5f , Ferrule1.25f
- Rubber protector to prevent damage when dropped
- Carrying pouch to house unit and connector adapters
