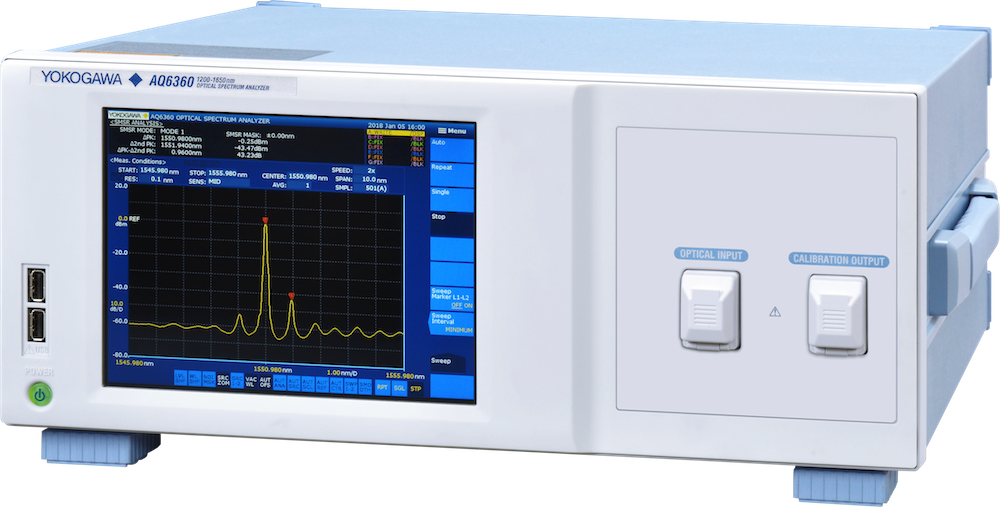

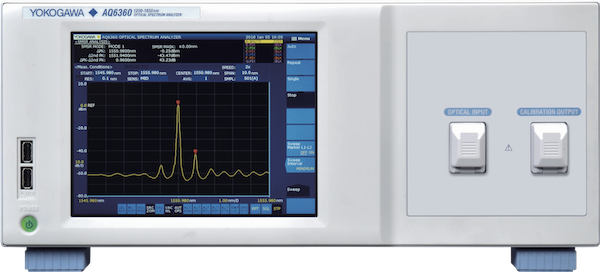

YOKOGAWA AQ6360 Telecom Production Optical Spectrum Analyzer 1200 - 1650 nm

Cod: YOKOGAWA AQ6360 Telecom Production Optical Spectrum Analyzer 1200 - 1650 nm




Brosura produs PDF, 1.47 Mb


Descriere

The AQ6360 is the fastest optical spectrum analyzer for optical device manufacturing offered by Yokogawa. It is a cost-effective optical spectrum analyzer ideal for industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers.

The AQ6360 features a wavelength range of 1200 to 1650 nm for ideal manufacturing test performance. Its free space optical input structure design allows for guaranteed high coupling efficiency and measurement repeatability. Additional features and functions of the AQ6360 include built-in analysis functions and Ethernet and GPIB remote interfaces.



Ideal performance for manufacturing tests

The AQ6360 satisfies the typical measurement needs of industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers.

  • Wavelength range: 1200 to 1650 nm
  • Wavelength resolution: 0.1 to 2 nm
  • High wavelength accuracy: ±0.02 nm
  • High dynamic range: 55 dB
  • Wide measurement range: +20 to -80 dBm



Sweep up to two times faster

The AQ6360 can sweep up two times faster than our models designed for R&D purposes.



Free space optical input

The free space optical input structure is the most effective to guarantee high coupling efficiency and measurement repeatability.



Dual-purpose
Accepts both single-mode and multimode optical fibers



Versatile
Accepts both flat and angle polished connectors



Worry free
Damage proof internal input connector



Maintenance-free
No internal fiber to clean
