YOKOGAWA AQ1000 Reflectometru fibra optica ieftin

Cod: YOKOGAWA AQ1000




Brosura produs PDF, 1.83 Mb


Descriere

This AQ1000 is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH). Although it is positioned as an entry-level model, it still retains Yokogawa’s established standards of quality/reliability and features characteristics which are usually present in higher-level models, such as a high-quality capacitive multi-touch touchscreen and wireless connectivity.



Features:

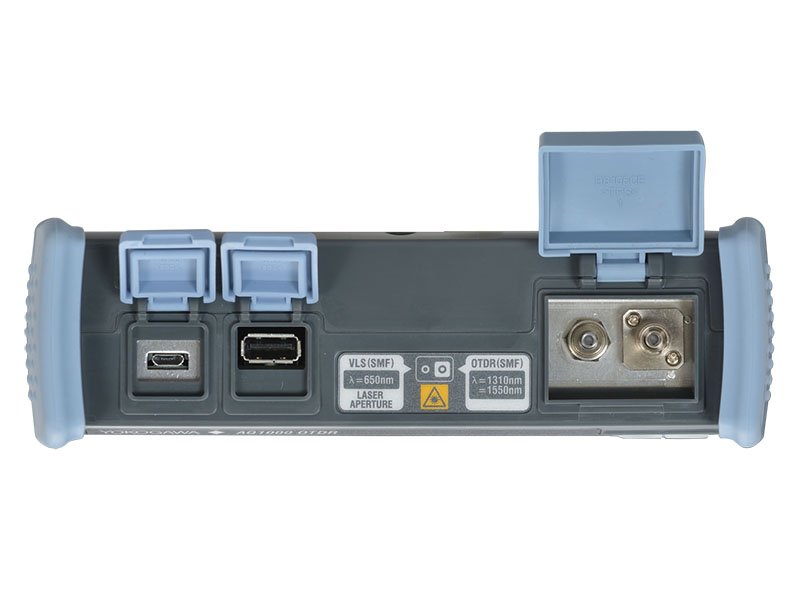

  • Wavelengths: 1310 / 1550 nm
  • Dynamic ranges: 32 / 30 dB
  • Size: 185 mm (W) × 116 mm (H) × 56 mm (D)    ( 7.3" (W) × 4.6" (H) × 2.2" (D) )
  • Weight: 660 g   ( 1.46 Lbs )

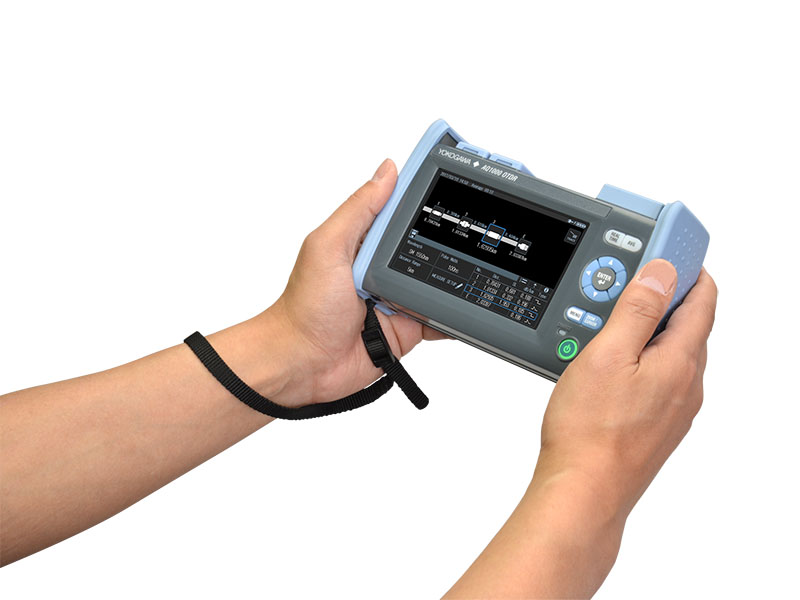

Intuitive and responsive

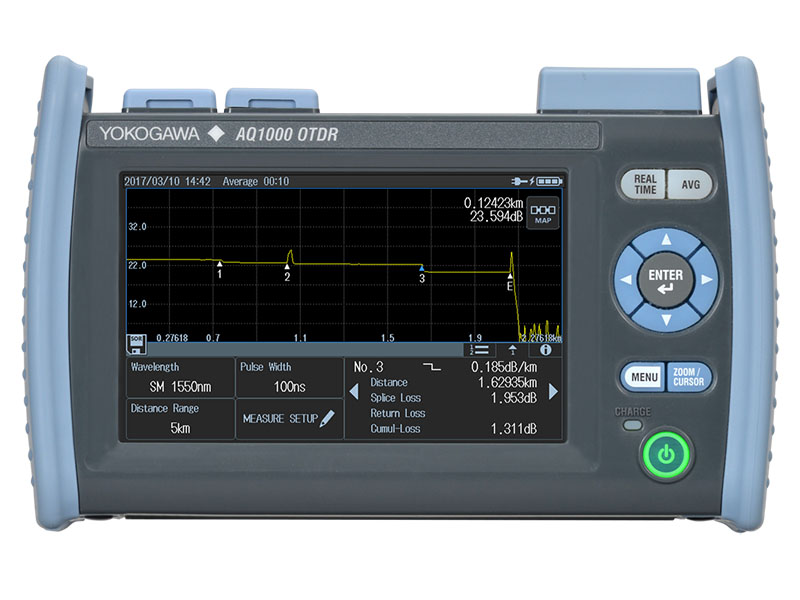

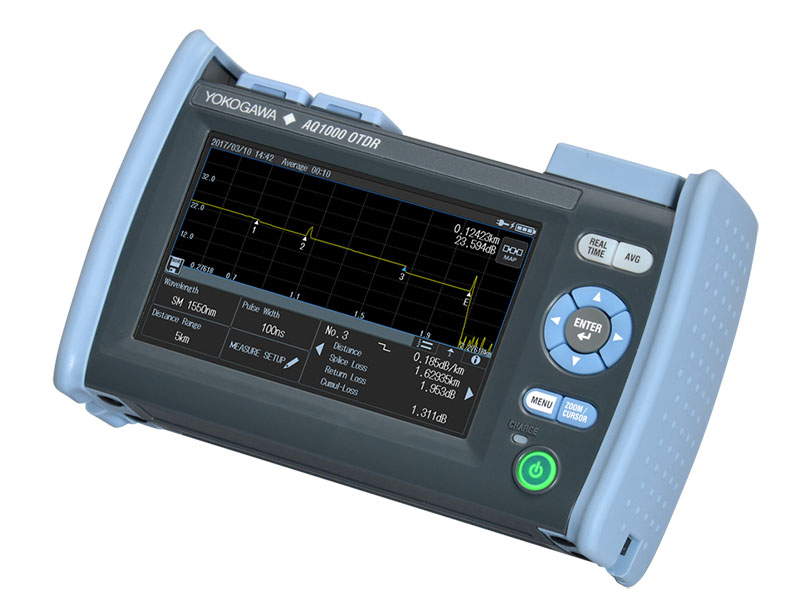

Tap, swipe, pinch or press with the intuitive and responsive multi-touchscreen display. This high resolution, responsive 5.0-inch multi-touch capacitive touchscreen combined with hard-key buttons make OTDR operations simple and intuitive.



Full-Auto

By simply pressing one singe button, the AQ1000 initiates an OTDR measurement, detects and comprehensively characterizes network events with PASS/FAIL judgment based on user-defined thresholds. The measurement data can be saved automatically if desired.



Over 10 hours!

No worrying about running out of battery power during your daily work. The AQ1000’s high capacity Li-Ion battery will last for 10 hours under the Telcordia standard conditions.
