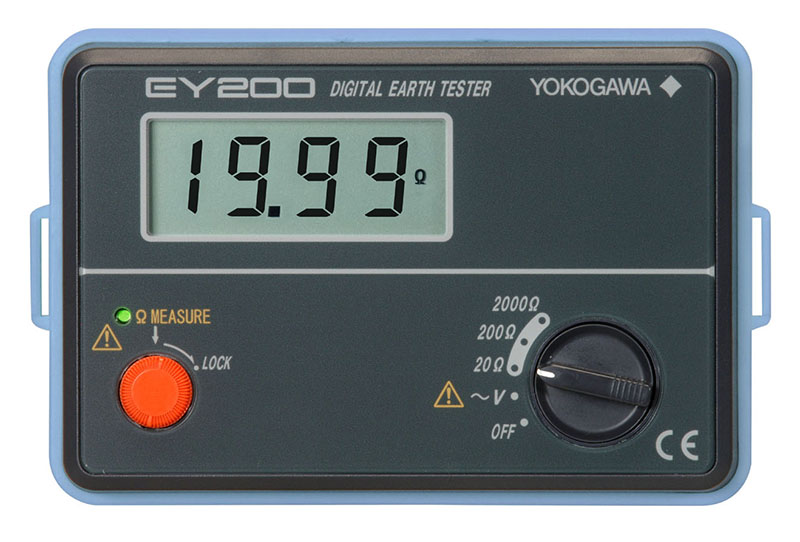

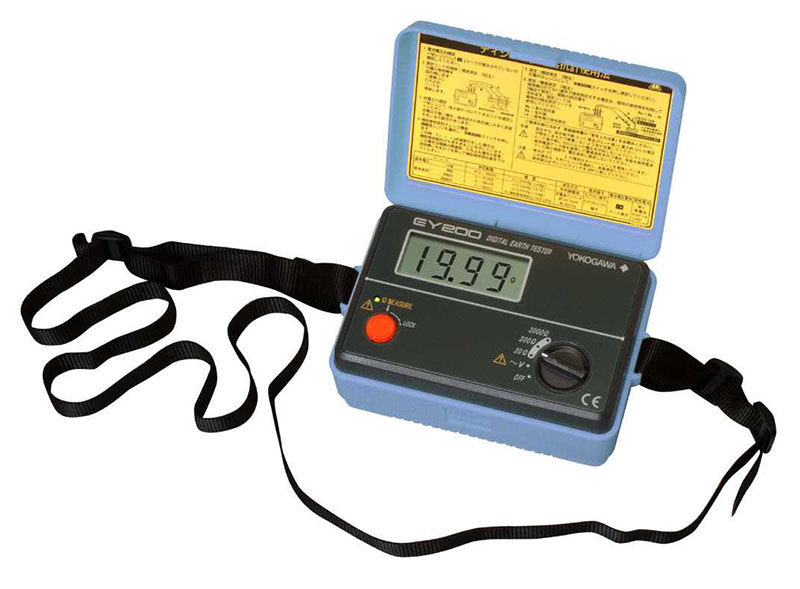

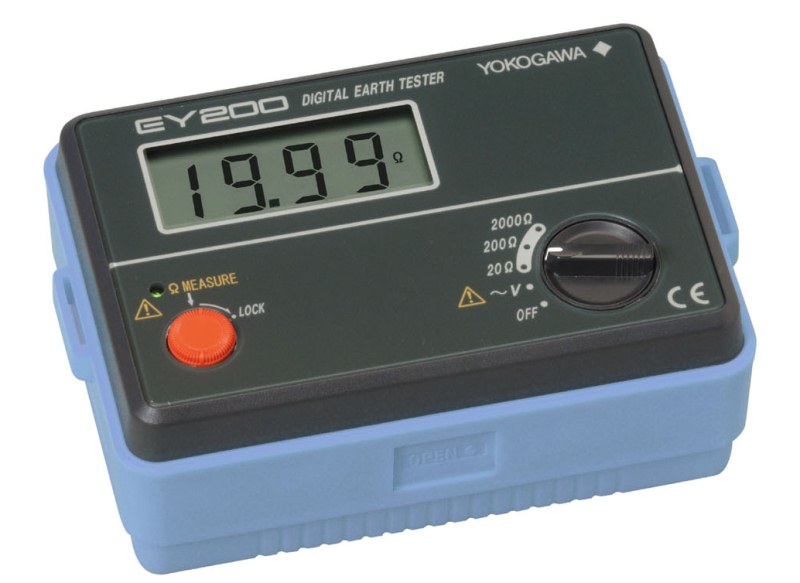

YOKOGAWA Tester digital impamantare EY200 (Digital)

Cod: YOKOGAWA EY200 (Digital)




Brosura produs PDF, 1.69 Mb


Descriere

EY200 is an earth resistance tester for testing power distribution lines, in-house wiring system, electrical appliances etc. It also has an earth voltage range for earth voltage measurement.



Features:

  • Designed to safety standard IEC 61557
  • Reference to IEC 60529: Degrees of protection provided by enclosures (IP54). Measurement can be made even under adverse weather conditions
  • Large, easy-to-read LCD digital display
  • 2P Test leads (for simplified measurement) has a structure that both the safety alligator clip and the test probe are available
  • Warns when earth resistance of auxiliary earth spikes exceeds the permissible limit
  • Convenient carrying soft bag for accessories etc.
  • 3-Pole Earth Resistance Measurement (Precise Measurement)





Connect the earth/ground electrode (E) and auxiliary spikes (P, C) to the main body using the accessory test lead. Put apart 5 to 10 m between E and P, and P and C, respectively. E, P, and C should be approximately in a line.
