YOKOGAWA Digital Multimeter TY720

Cod: YOKOGAWA Digital Multimeter TY720




Brosura produs PDF, 1.46 Mb

Descriere

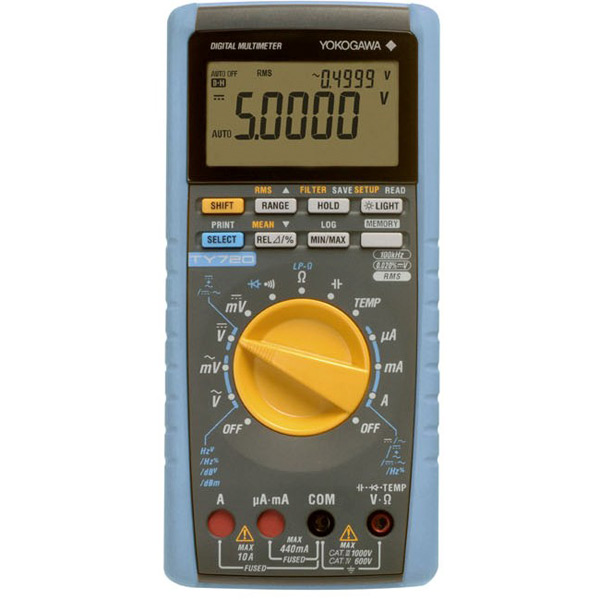

The TY720 Digital Multimeter is a 4.5-digit, 50,000-count dual display RMS meter with a 51-segment bar graph display. The TY720 multimeter measures Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature, and Low Power Resistance.



Features:

  • Highest Precision
  • Basic accuracy 0.020%
  • True RMS measurement
  • New Functions for Electronic and Industrial Use
  • Simultaneous measurement and display of DC and AC
  • Switchable RMS/MEAN detection
  • Low-pass Filter (LPF)
  • AC50mV range
  • Lo-Power resistance measurement TY720 only
  • Full Support for Data Management
  • A large-capacity logging-mode memory
    TY720: 10,000 data
    TY710: 1,000 data
  • USB communication, application software (Optional DMM communication package)
  • Safe Design and Wide Temperature Range for Harsh Use
  • Conforms to safety standards EN61010-1 1000V CAT., 600V CAT.
  • Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
  • Operating temperature range -20 to +55C
  • Storage temperature range -40 to +70
  • Closed Case Calibration
  • 3-year Warranty
