Detector acustic scurgeri de apa Seba Hydrolux HL 5000
PRODUS OBSOLET ( * SCOS DIN UZ )

Cod: Seba-KMT Hydrolux HL5000 HL-5000




Brosura produs PDF, 2.09 Mb


Descriere

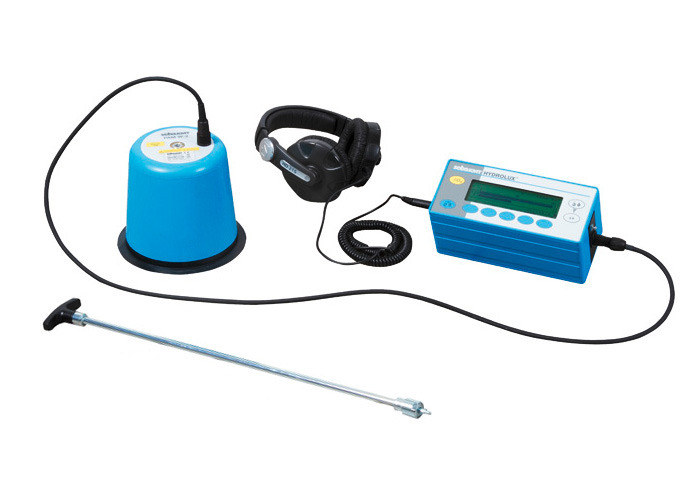

Hydrolux HL 500 HL5000

The modern DSP technology used together with a 16 bit audio codec provides the user with high audio quality. Background noise is simultaneously minimised. This means that leaks which only produce a quiet sound can also be reliably identified. The Hydrolux is easy to carry even for longer periods of work due to the small housing and low weight. The large back-lit display provides easy reading of the measurement results. Hydrolux is simple to use which makes it a fine companion in your daily search for leaks.

With the modern series of Hydrolux equipment HL 500 and HL 5000, you can find leaks particularly quickly, easily and reliably. The equipment uses modern digital signal processing technology (DSP) to clearly recognise the leak sound, even when there is a lot of noise in the environment. The sounds are not just perceived audibly, but are also displayed graphically using ultra-modern dual segment analysis (DSA) technology. For the user this means more reliability when locating water losses.

Benefits:

  • See and hear leaks with DSA technology
  • High audio quality
  • Non-tiring work
  • Line location mode
  • Improved leak identification with frequency analysis





Features of the Hydrolux equipment:

Functions

HL 500

HL 5000

LCD Display

X

X

DSA technology

X

X

Histogram

X

X

Sound logger function

X

X

Software updates

X

X

Frequency analysis



X

Free filter setting



X

Line location mode



X









Accesorii standard

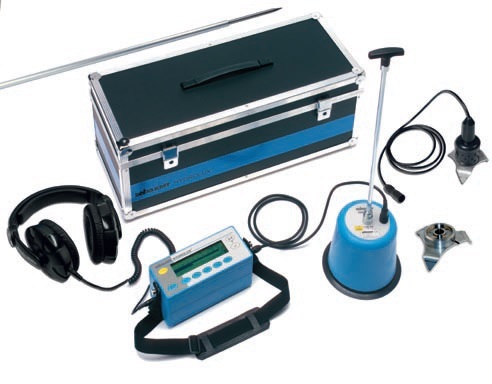

Scope of Delivery (HL 5000 Pro)

- Leak location equipment / amplifier ?

- Ground microphone (PAM W-2) 2

- Ground microphone (PAM B-2) 8 including

tripod adapter (PAM U-D) 7

- Headphones 4

- Magnet adapter PAM B-2

- Tripod adapter (PAM W-2-D) 9

- Carrying Rod PAM W-1 / PAM W-2 ?

- Extension Rod VST T-1 with probe tip ?

- Connection lead VK 65 3

- Carrying belt 6

- Equipment case 5



Optiuni recomandate

Special accessories

- Slide valve adapter 20 mm

- Slide valve adapter 42 mm

- Plug-In Pin EBD 75

- Plug-In Pin AD 12 / 8
