Sistem didactic de training Comunicatii Analogice Promax EC-696

Cod: Promax EC-696




Brosura produs PDF, 0.08 Mb

Descriere

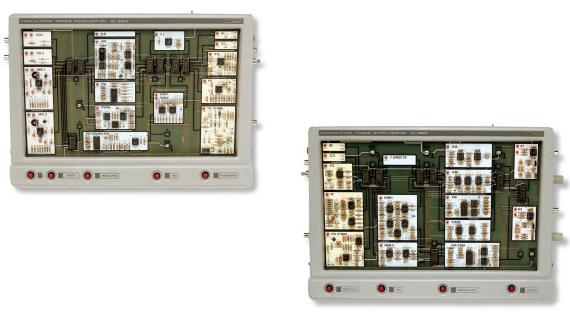

It is composed of two modules, the emitter and the receiver. It has several types of emitters, transmission channels, receivers, modulators and demodulators, in order to configure various analog transmission systems. For instance, it permits to compare the advantages of several transmission systems over others, including those fiber-optics based, or to analyze interference phenomena between channels.





MODULATIONS

AM, FM, PWM, FDM

INPUTS / OUTPUTS

Generator, microphone / Oscilloscope, headphones

TRANSMISSION

Two-wire, coaxial, Fibre Optics, Infra Red & Radio
