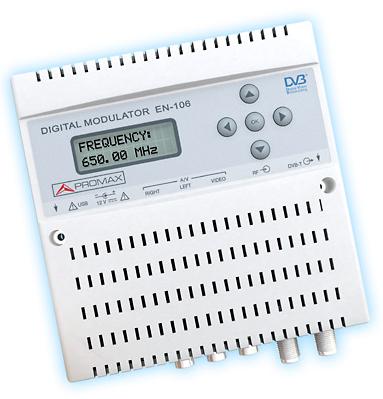

Modulator Home Digital Video DVB-T Promax EN-106

Cod: Promax EN-106




Brosura produs PDF, 0.22 Mb

Descriere

The EN-106 home modulator sends audio / video signal from TV satellite receivers, closed-circuit television cameras (CCTV) or video players  to a TV which uses DVB-T (Digital Terrestrial Television) standard.

Programming the EN-106 modulator is very easy through its keyboard and display. It also provides connection to the PC via USB.

The EN-106 includes an RF combiner on which a channel modulated from existing antenna signals can be added easily. It is a passive combiner that works even if the modulator is off. It can also be used in series with other EN-106 modulators and with any other RF signal so the number of channels in the coaxial cable on the SMATV system can be increased as desired.





INPUTS
  Video
  Audio


1 x PAL
?/?NTSC / SECAM
2 x Mono /
?Stereo

COMPRESSION
  Video

  Audio
  Insertion of DVB Tables
  LCN Programming


MPEG-2 MP@ML.
720x576, 25 fps (PAL), 720x480, 30 fps (NTSC).
MPEG-1 Layer II Stereo, Mono, Dual, Joint Stereo
SDT, NIT, EIT
Yes

FREQUENCY MARGIN

From 100 to 865 MHz (channels S01 to C69)

CONNECTIONS
  Video
  Audio
  RF
  Power supply


RCA female 75 O
RCA female
2 x F female (loopthrough) 75 O
External Power supply 220V / 12 V
