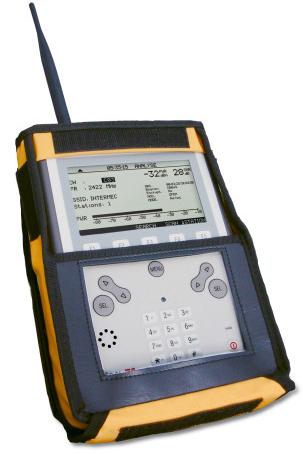

Analizor Wi-Fi retele Wireless 802.11b/ 802.11g Promax PROFI-70

Cod: Promax PROFI-70




Brosura produs PDF, 0.06 Mb

Descriere

The PROFI-70 is an analyser of local area wireless networks (WLAN). (Wi-Fi Wireless Fidelity networks that fulfills the IEEE standard 802.11b and 802.11g). These types of communication networks have been widely deployed, due to the facility of development and the comfort to access to them. But, thus they operate in a free-band; these networks require a continuous and accurate control of the broadcasting cover, including as well the analysis of the interferences as the control of the access security.

In the design of the PROFI-70 special care has been taken to create a practical, accurate, yet easy-to-use device. A simple alphanumeric keypad including soft-keys facilitates direct access to the various operating modes. Once accessed, ambidextrous navigation and selection keys can be used to easily modify any parameter of the measurements.

It has a RS-232 interface for connection to a printer or computer to generate reports on the measurements performed.





TUNING
   TUNING RANGE
   TUNING MODE

   SENSITIVITY


From 2412 to 2484 MHz (ISM band)
By channel
(CH1 - CH14: IEEE 802.11 / 802.11b/g standard)
- 90 dBm

INPUTS
   INPUT A
     MEASURING RANGE
     MAXIMUM INPUT LEVEL
   INPUT B
     MEASURING RANGE
     MAXIMUM INPUT LEVEL



From -90 to -20 dBm
+10 dBm

From -40 to +30 dBm
+30 dBm

DATALOGGER FUNCTION
   MEASUREMENTS


Channel, SSID, MAC, Power and Signal/Noise ratio
