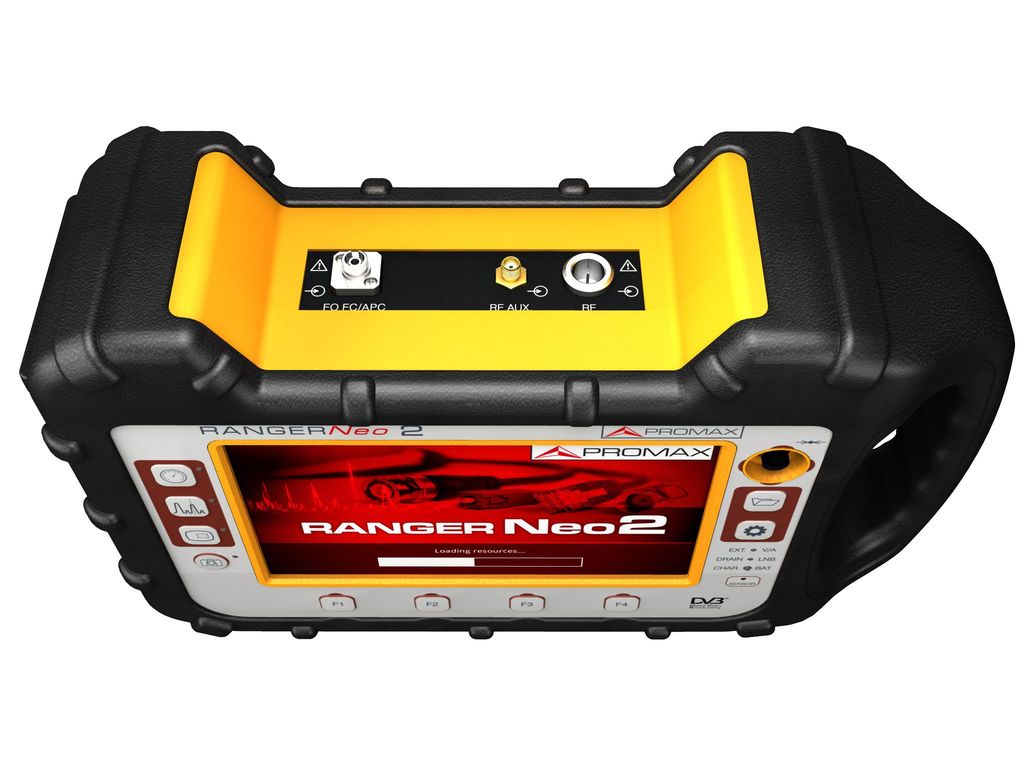

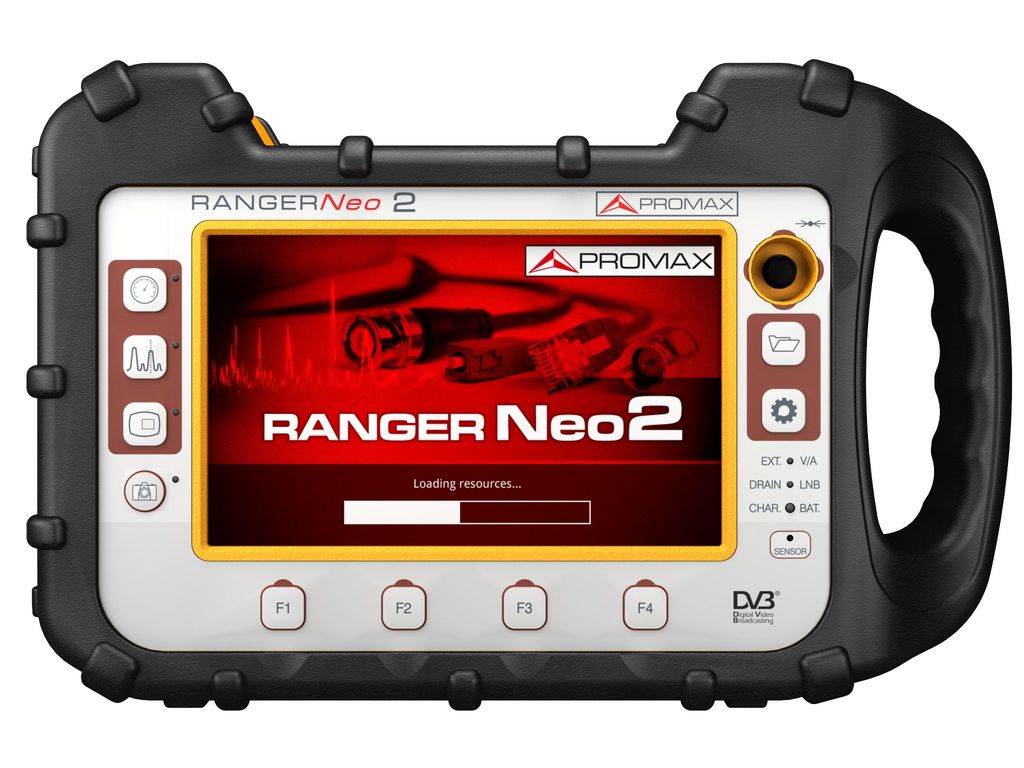

Analizor TV si Spectru IPTV MPEG H.264 PROMAX RANGERNeo 2

• Detection of radio signals received in a specific location, in the radio as well as in the digital and analogue television bands
• Identification of each one of the signals received
• Permanent monitoring of a variable area of the radio spectrum, carrying out an analysis of the detected variation
• digital radio (DAB), terrestrial digital television (TDT) according to the DVB-T (COFDM modulation) standard, FM-RDS radio and analogue TV signals



• DVB-T (DTT) output
• converts analogue/ digital video source to DVB-T with a max 200 programmes in the UHF band
• transmodulate Satellite TV channels to Digital Terrestrial Television multiplexes
• system allows to re-organise the spectrum, adding the off-air DTT channels received in the region
• encoding video-audio channels
• remotely controlled through Ethernet



• 4 PILOT CARRIERS: 85 MHz, 750 MHz, 1000 MHz, 2150 MHz
• Selectable and independent carrier level for each one: from 75 to 105 dBµV
• LED indicators for each carrier output level
• 13, 18 V and 22 kHz signal detection.
• Power supply from the LNB or external DC supply.
• Ergonomic and compact format



• theoretical-practical study of a DVD & CD player
• observe the internal composition of the mechanics
• analyze the signals that take part of the operation
• simulate several faults for the study of troubleshooting and diagnostic methods



• MODULATIONS: ASK, FSK, BPSK, QAM, QPSK, DQPSK
• INPUTS: Generator, microphone/oscilloscope, headphone
• TRANSMISSION: Two-wire, coaxial, Fibre optics, Infra Red, Radio



• DVB-S/S2 IF INPUT: 2 independent DVB-S/S2 inputs
• TS OUTPUT: 2 double independent DVB-ASI outputs
• allows inserting a Conditional Access Module (CAM)
• Selection of decrypted services by name



• FREQUENCY MARGIN: From 50 MHz (C-2) to 860 MHz (C-69)
• INPUTS: 4 inputs Female BNC, 75 ? impedance
• RF OUTPUT: 1 female BNC output, 75 ? impedance
• output designed to mix output RF signals of COFDM modulators and transmodulators with DTT channels



• Attenuation test nd OLTS Functions
• LOSSES Function
• LOGGER Function
• Visual locator to find faults in the fibre
• Red laser at 650 nm with an universal connector
• User interface in several languages
• Connection USB to PC to transfer the data recorded by the instrument



• integrated DVB-T tuner that allows the TS capture in real time
• record a transport stream continuously for several minutes and then play it back
• work in the field where maybe it is not possible to find electricity available
• ASI Transport Stream Input: Maximum data rate 40 Mb/s
• RF Input: DVB-T from 35 to 100 dBµV
• ASI & SPI parallel Transport Stream Output: Maximum data rate 32 Mb/s
• Storing Capacity: Memory card 4 GB, 20 minutes approx (20 Mbits/s)



• PAL B/G, D/K, I, N, NTSC M, SECAM B/G, D/K, L Standards
• Direct acces keys for nine different chars
• 4:3 & 16:9 formats
• Addition of an electronic circle
• Double side band modulation
