Splicer fibra optica PROMAX PROLITE-41

Cod: PROMAX PROLITE-41




Brosura produs PDF, 0.37 Mb


Descriere

  • Fibre aligning by means of Core aligning method
  • Anti-shock protector
  • FASTER splicing: 7 s splicing, 25 s heating
  • Applicable fibers: SM, MM, DS and NZDS
  • Higher resolution LCD with configurable screen orientation
  • Replaceable Heating Unit
  • Interchangeable fiber holders
  • USB Port



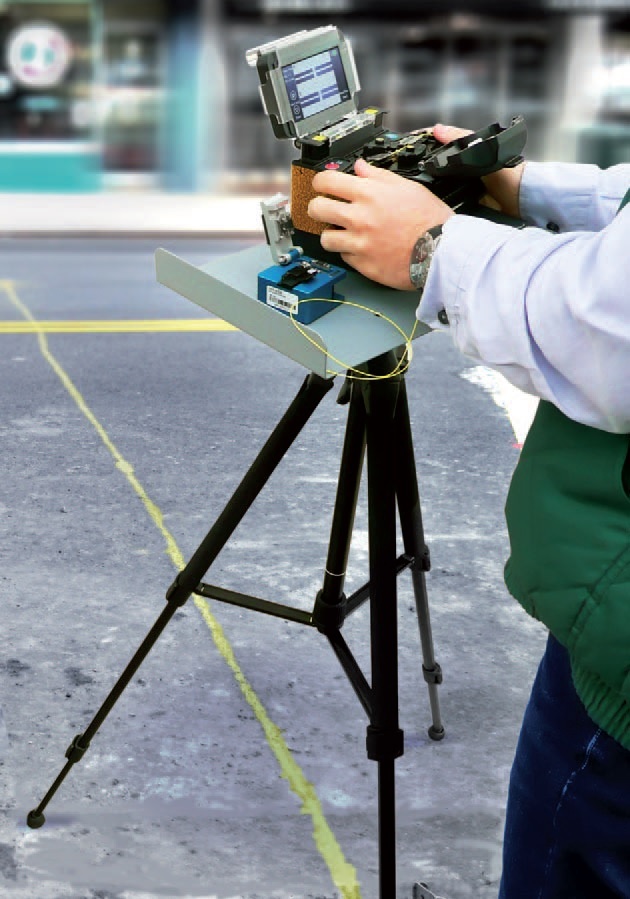

Fusion splicer model PROLITE-41 fromPROMAX is one of the smallest and lightest optical fiber splicing equipment available in the market today, featuring the fastest splicing speed: 7 seconds.



PROLITE-41 uses advanced Optical Core Alignment fiber adustment technology. Adopt four motors drive, have fiber adjustment function, it is not only used for FTTx environments, but also can be used for the trunk line of a telecommunication system.



Fusion Splicer PROLITE-41 is a mini-type fusion splicing machine built in a titanium alloy body designed to be waterproof and dustproof. It includes the essential accessories for immediate operation: two strippers (for fibre and for drop cable), cleaver, dust blowing pear, isopropyl alcohol dispenser... In addition, its user-replaceable fiber holders can be swapped at any time using a fast and safe magnet-guided fitting.







SPECIFICATIONS

PROLITE-41 OPTICAL?FIBRE?FUSION?SPLICER

Applicable Fibers

SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS(Non zero dispersion shift)

Return Loss

= 60dB

Average Fusion Loss

0.03dB (SM) / 0.02dB (MM) / 0.06dB (DS) / 0.06dB (NZDS)

Fiber Diameter

Cladding diameter: 125 µm. Coating diameter: 250 µm ~ 900 µm

Fiber Adjustment Mode

Both core alignment and cladding alignment

Pull Test

2N

Magnification

115x (X/Y axis) / 230x (X axis or Y axis)

Screen

LCD 4.3"

Splice Results Storage

5000 groups of the latest records

Fusion splice Model

Prestore: 40 groups, User define: 80 groups.

Fusion splice Duration Time

7s

Heating time

35 s (60 mm) / 28 s (40 mm).

Loss Estimation of Fusion Splice

Yes

Lighting Mode

Internal High-brightness LED supply convenience for night work

Electricity Show

LCD show the remaining electricity accurately

Power supply

Internal battery



Battery capacity Battery charging time Batery cycle life

Car Power Supply

AC adaptor



11.1 V user-replaceable lithium battery.

Equipment can be used while charging the battery

Typically work 180 times (Fusion splicing/Heating)

3 h

Up to 500 times

12V direct charging port, convenient for quick charging

External Power Adapter, Input: AC100 ~ 240V. Output: DC 13.5V/5A

External Ports

USB 2.0 Port

Mechanical features

Dimensions

Weight



150 (D.) × 160 (W.) × 140 (H.) mm.  (including antishock protector)

1.6 kg (without battery), 1.8kg (including battery)

Included accessories

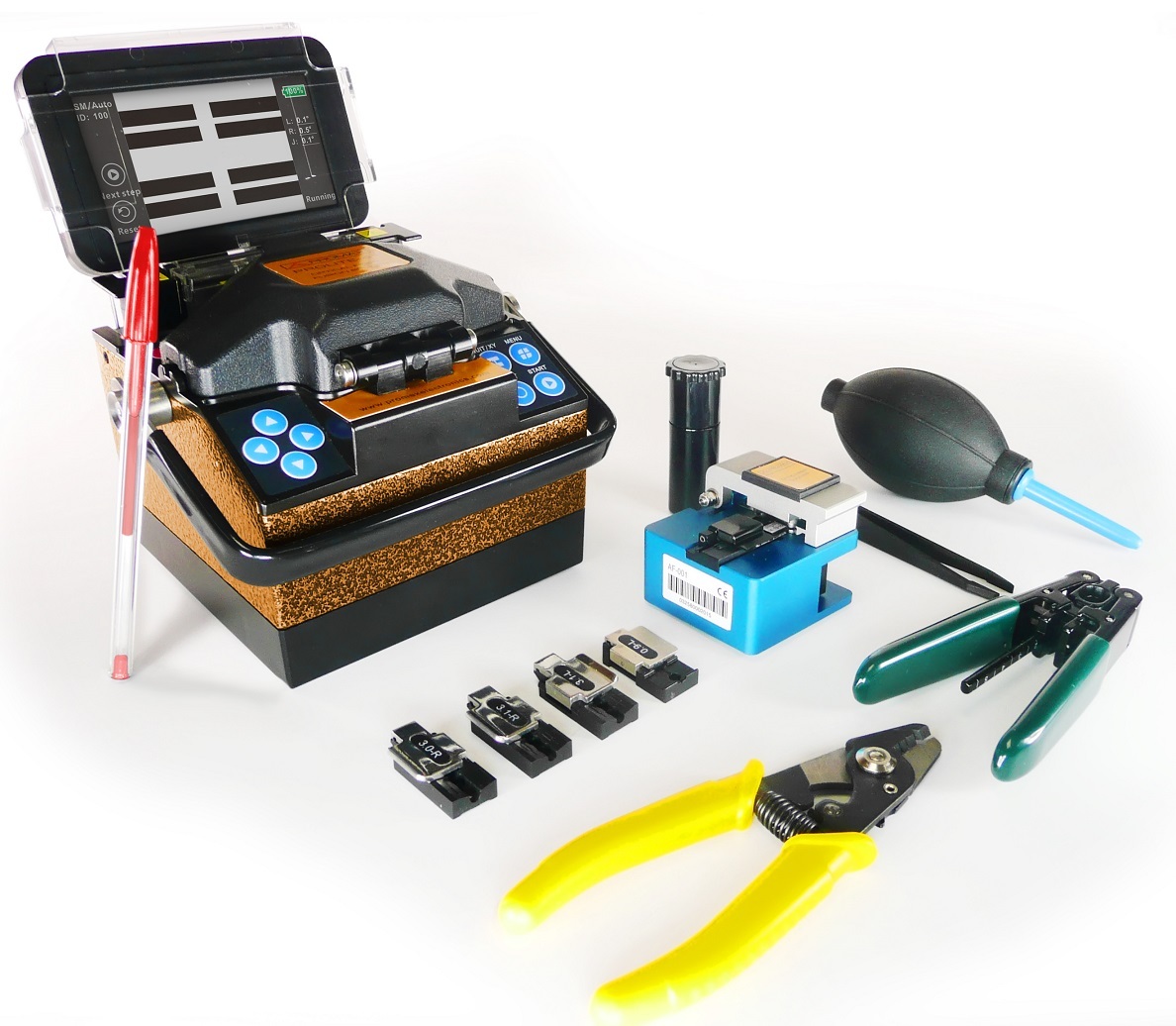

Anti-shock protector, fibre drop cable stripper, optical fibre stripper, cleaver, dust blowing pear, isopropyl alcohol dispenser, tweezers,

interchangeable fibre holders, AC?adapter, carrying case
