Sistem training Transmisii TV Terestrial, Cablu, Satelit Promax EA-817A

Cod: Promax EA-817A




Brosura produs PDF, 0.35 Mb

Descriere

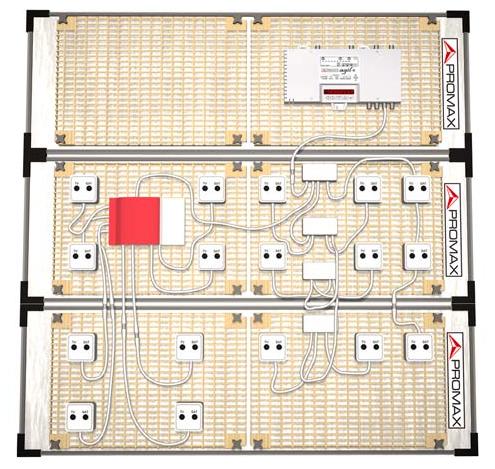

The Antenna Trainer EA-817 A is a fully configurable trainer, based on a structure with whiteboard panels, each one consisting of two universal boards quick-fixing and removable. It allows the student to install, configure, adjust, modify and analyse any kind of actual MATV and SMATV installation.

It is a comprehensive education system designed for teaching, demonstration and experimentation about the theory and practice of telecommunications infrastructure installations.







ANTENNAS
  Included antennas

  Antennas accessories


UHF Antenna + 150 cm mast
Off-set antenna + 80 cm mast
Reflector, 4 outputs LNB, fasteners, mobile support

HEADEND EQUIPMENT
(integrated into a single module)

Headend (MATV), 10 UHF programmable filters
VHF and FM amplifier
Power supply unit

USER EQUIPMENT

High Definition Terrestrial and Satellite digital television receiver (COFDM, QPSK) with MPEG-2 and MPEG-4 combo

ACCESSORIES

Universal panels + nuts + screws...
Inclinometer and compass
Cables and connectors
Tools and markers
Simulator for Intermediate Frequency (RP-050)

DOCUMENTATION (on CD-ROM)

- Theory and Practice Manual for Intermediate Cycle
- Trainer's User’s Manual
- Technical Documentation
- Assembly Instructions
