Analizor spectru putere linie retea & Generator zgomot PLC 1..50 MHz Promax Propower-5/1

Cod: Promax Propower-5/1




Brosura produs PDF, 0.06 Mb

Descriere

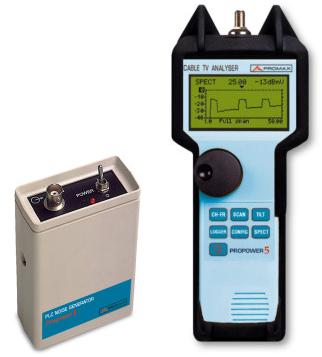

New PROPOWER range is made up of two basic elements: a PLC Spectrum Analyser and a PLC test signal Generator. All instruments have been designed for field use and combined use allow to test the network response to PLC test signals.

PLC Spectrum Analyser Propower-5

  • Freq. Range: 1 - 50 MHz
  • Power: From -90 to 10 dBm
  • Resolution: 200 kHz
  • Spectrum Mode / Tilt Mode
  • Data Acquisition
  • Handheld

PLC Noise Generator Propower-1
  • Freq. Range: 1 - 50 MHz
  • Power: 5 dBm
  • Handheld.



PROPOWER-5 (PLC SPECTRUM ANALYSER)

FREQ. RANGE
POWER
FUNCTIONS



1 - 50 MHz
From -90 to 10 dBm
Spectrum mode, tilt mode, data acquisition

PROPOWER 1 (PLC NOISE GENERATOR)

FREQ. RANGE
POWER



1 - 50 MHz
5 dBm
