Simulator forme de unda cresteri si caderi de tensiune NoiseKen VDS-2002

Cod: NoiseKen VDS-2002



Brosura produs PDF, 0.76 Mb


Descriere

  • Conforming to IEC 61000-4-11
  • Fully compliant with all the test generator requirements of IEC standard.
  • One unit solution for dip, swell, interruption and variation tests up to 16A 290V single phase AC
  • Interruption test up to 16A 125V DC (*)
  • Two motor-driven transformers approach enables switching between any voltages (*)
  • Preset IEC test levels 0%/40%/70%/80% plus additional 120%
  • Two modes for 0% (interruption) test: open & short (*)

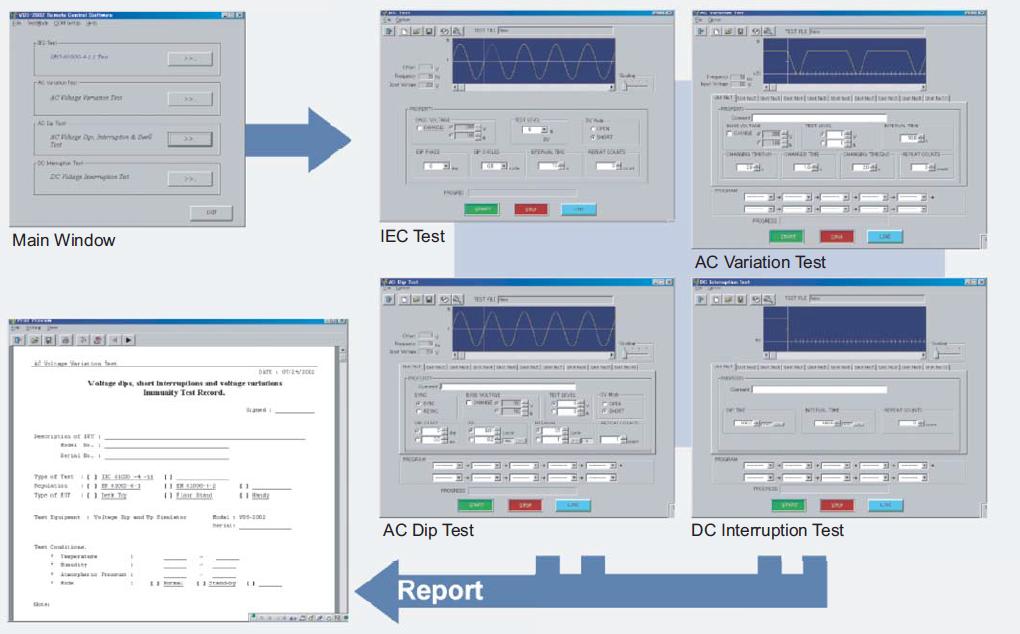

  • Optional Windows application software available to more extensively control the unit

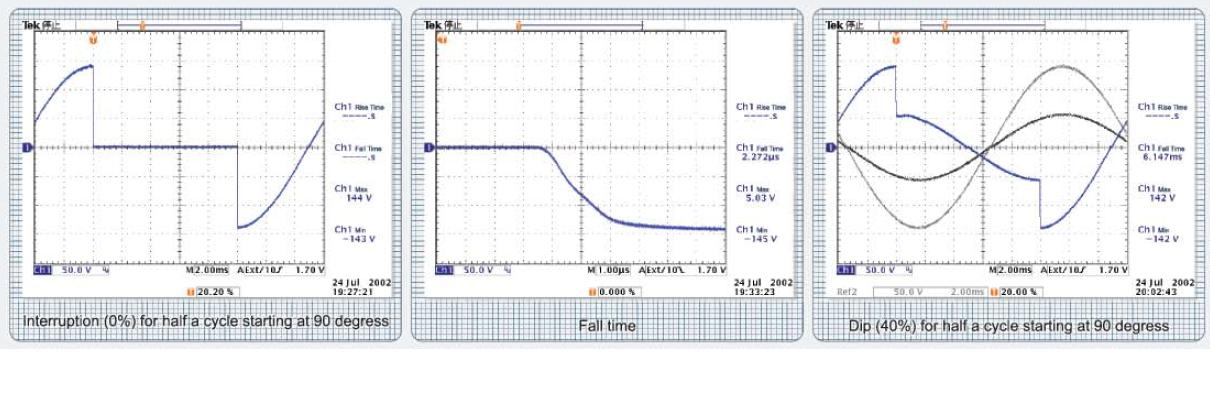

  • Accurate waveforms



(*) optional software required





SPECIFICATIONS



Items

Specifications

Number of lines

Single phase

Test mode

Interruption
AC/DC

Local

Synchronous:Short circuit


PC

Synchronous: Short circuit/ Open circuit
Asynchronous: Short circuit/ Open circuit

Dip and swell

Local

Synchronous

PC

Synchronous/ Asynchronous

Variation

Local

Asynchronous
(Only 2s-1s-2s standard defined test is available.)

PC

Asynchronous

Input voltage range

AC90~264V, 50/60Hz, DC0~125V

Output voltage range

AC 0%~ 120% of input voltage, AC290V Max
DC 0V-input voltage

Output VA

4.224KVA (Continuous)

Output current capability

AC

100% of input voltage: 16A rms (Continuous)

80% of input voltage: 20A rms (<5S)
70% of input voltage: 23A rms (<5S)
40% of input voltage: 40A rms (<5S)

DC

16A (Continuous)

Peak inrush current drive capability

AC 100~ 120V: >250A (at 100% output, <10mS)
AC 220 ~240V: >500A (at 100% output, <10mS)

Load regulation

100% of input voltage 0-16A rms: <5%

80% of input voltage 0-20A rms: <5%
70% of input voltage 0-23A rms: <5%
40% of input voltage 0-40A rms: <5%

Overshoot/ undershoot

<5% (100 ohm loaded)

Rise time/ fall time

1 ~ 5 µS (100ohm loaded)

Normal voltage setting

Setting by percent

Local

100%

PC

(4%) ~120% /10V minimum

Setting by voltage

PC

10V~290V/ 5V step

Accuracy

±5V (0V~16A output)

Dip/swell level

Setting by percent

Local

Short circuit for 0% (Interruption), setting: 0/40/70/80/120% (5 steps)

PC

Short/Open selectable for 0% (interruption): 0~120%

Setting by voltage

PC

Short/Open selectable for 0V (interruption): 0~290V(0~120%), 5 steps

Accuracy

±5V

Repetition of events (No. of events)

Local

1,3, 5, 10, 30, 50,10, or continuous (8 steps)

PC

1~1,000 or continuous (1 event step)

Interval cycle

Setting by cycle

Local

1, 3, 5, 10, 30, 50, 100, 300, 500, cycles and 10s (10steps)

PC

0.5 ~ 5,000.5 cycles (0.5 cycle step)

Setting by time

Setting for short duration

PC

Synchronous: 1~100s (1s step)
Asynchronous: 8.3ms~100s (0.1m step)

Setting for long duration

PC

Asynchronous: 1s ~ 10h (1s step)

Dip cycle

Setting by cycle

Local

0.5, 1, 5, 10, 12, 25, 30, 50, 250, 300 cycles (10 steps)

PC

0.01 ~ 5,000 cycles (0.01 cycle step)

Setting by time

Setting for short duration

PC

Synchronous: 0.1ms~100s (0.1ms step)
Asynchronous: 0.1ms~100s (0.1ms step)

Setting for long duration

PC

Asynchronous: 1s ~ 10h (1s step)

Dip phase
(starting phase angle of events)

Setting by phase angle

Local

Synchronous: 0,45,90,135,180,225,270,315 (8 steps, 45 degrees step)

PC

Synchronous: 0~359° (1° step)

Setting by time

PC

Synchronous: 0~19.9 ms for 50 Hz (0.1ms step)
0~16.6 ms for 60 Hz (0.1ms step)

Voltage variation test

Setting by time

PC

Ansynchronous:
Changing time: 0.1s~10s (0.1s step) , At least 0.1s required for 10% change of input
Changed time: 0~10s (0.1s step)
Interval: 0~100s (0.1s step)
Test level: 0~120%

Memory

Local

5 tests

PC

10 steps (Test sequence stored up to 10 steps when controlled by PC.)

Equipment Input voltage

AC100~240V ±10%, 50/60Hz, 120VA

External interface

Optical RS-232

Dimensions

430(W) x 745(H) x 600 (D) mm (Projection excluded)

Weight

Approx. 150 kG



Optiuni recomandate

  • Control Software Model 14-00036A
  • Optical Interface Box Model 07-00017A/22A
    •

    Alte produse NOISEKEN

    SIMULATOR FORME DE UNDA CRESTERI SI CADERI DE TENSIUNE NOISEKEN VDS-2002

    • Conforming to IEC 61000-4-11
    • Fully compliant with all the test generator requirements of IEC standard.
    • One unit solution for dip, swell, interruption and variation tests up to 16A 290V single phase AC
    • Interruption test up to 16A 125V DC (*)
    • Two motor-driven transformers approach enables switching between any voltages (*)
    • Preset IEC test levels 0%/40%/70%/80% plus additional 120%
