Structured commission test
Rotary switch for ease of use
Data hold
Logs & prints reports with optional infra-red printer
- Combustion
- Pressure
- Let-by & Tightness
- Temperature
- CO build up
- Commission test
6 year warranty if serviced annually by Kane

Applications

Installation and servicing of domestic oil or gas appliances
Safety checks
CO in a room or around an appliance
Combustion performance checks
Combustion efficiency checks
Flue Draught

Measures

CO2 direct with an infra-red sensor 0-20%
CO 0-2,000ppm
Differential temperature
High accuracy differential pressure meter +/- 80mbar

Calculates

O2
Excess air
CO/CO2 ratio
Combustion efficiency

Fuels Types

Natural Gas
Butane
Propane
LPG
28 sec oil
35 sec oil
Wood pellets

Box Contents

Analyser
Probe
Pressure connectors
Charger
Manual
Calibration report

Pentru promotii si preturi puteti cere oferta sau puteti acesa magazinul online www.testmag.ro

Accesorii standard

Box Contents

Analyser
Probe
Pressure connectors
Charger
Manual
Calibration report

Alte produse KANE

KANE AUTO5-4 ANALIZOR EMISII AUTO GAZE ESAPAMENT 5-GAZE

• Measures CO, HC, O2, CO2, NOx and Lambda (or AFR)
• Unique rotary switch to quickly select the parameters required
• Robust, reliable and accurate
• Weighing under 1kg, the handset fits comfortably in the hand
• Ideal for emission diagnostics, tuning and regulated testing.

KANE 457 ANALIZOR GAZE INSTALATII SI COMBUSTIBIL KANE457

• Unique - ambient & flue CO2 in one analyser Ideal for commercial catering & incident investigations
• Measures CO2 direct with an infra-red sensor, CO, Differential temperature, differential pressure meter
• Calculates O2, CO/CO2 ratio, Excess air, Combustion efficiency
• Fuels Types: Natural Gas, Butane, Propane, LPG, 28 sec oil, 35 sec oil, Wood pellets

KANE AUTO4-4 ANALIZOR EMISII AUTO GAZE ESAPAMENT 4-GAZE

• Measures CO, HC, O2, CO2, and Lambda (or AFR)
• Unique rotary switch to quickly select the parameters required
• Robust, reliable and accurate
• Weighing under 1kg, the handset fits comfortably in the hand
• Ideal for emission diagnostics, tuning and regulated testing.

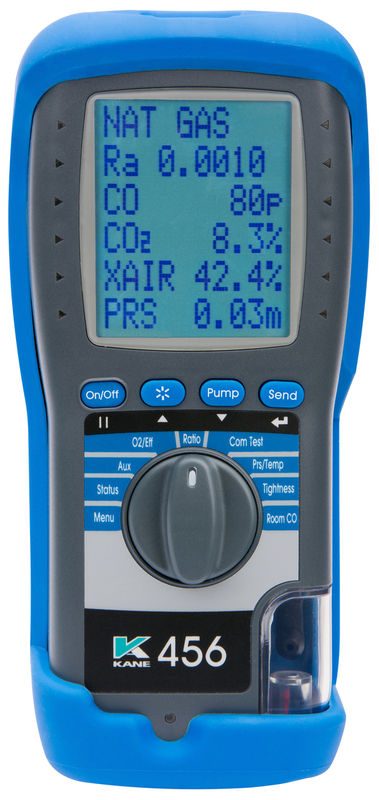

KANE 456 ANALIZOR DE GAZE INSTALATII DE GAZ KANE456
