KANE AUTO600 Diesel Smokemeter Analizor emisii gaze auto

Cod: KANE AUTO600 AUTO-600



Brosura produs PDF, 0.36 Mb


Descriere

AUTO600

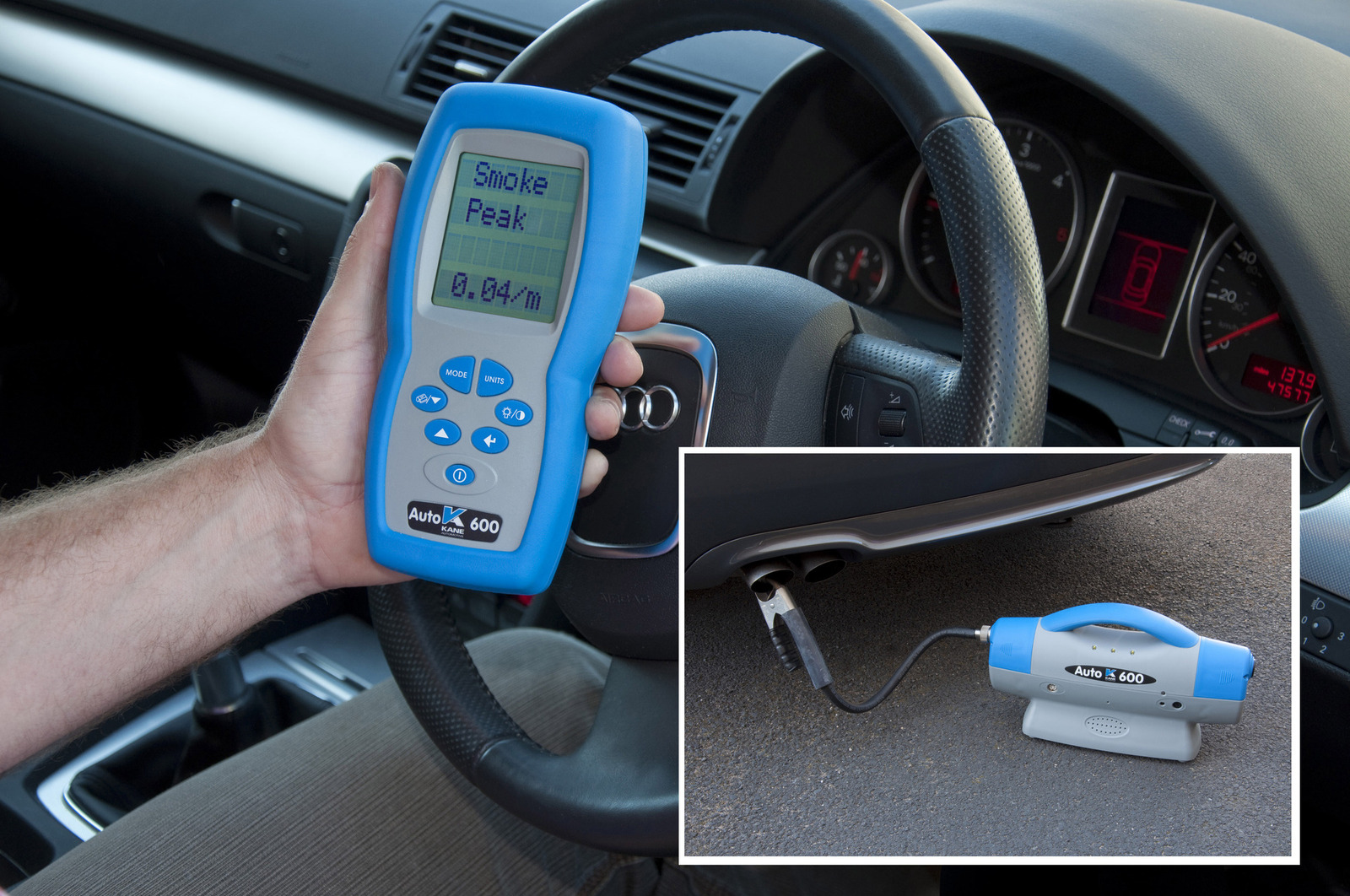

Combining innovation & ease of use the AUTO600 Portable Diesel Smokemeter is designed to meet official test standards.



Ideal for:

  • Car & Light Commercial Workshops
  • PSV Workshops
  • Fleet Operators
  • Pre-Compliance Testing
  • Servicing vehicles
  • Local Authority and Environmental Testing



Fully portable - AC & internal rechargeable battery with up to 3 hours run time. Continuous, Peak and Average readings measure K (M-1) & %(Hu).

All readings can be printed via infra-red printer (included).

Bluetooth* enabled - Provides complete flexibility.



Features

  • Ergonomic easy to use handset
  • Compact rugged housing, strong but light, easy to position for all types of vehicles
  • Bluetooth or cable operation
  • Continuous, Peak and Average readings K (M-1) & %(Hu)
  • Self calibration after each test maintains accuracy

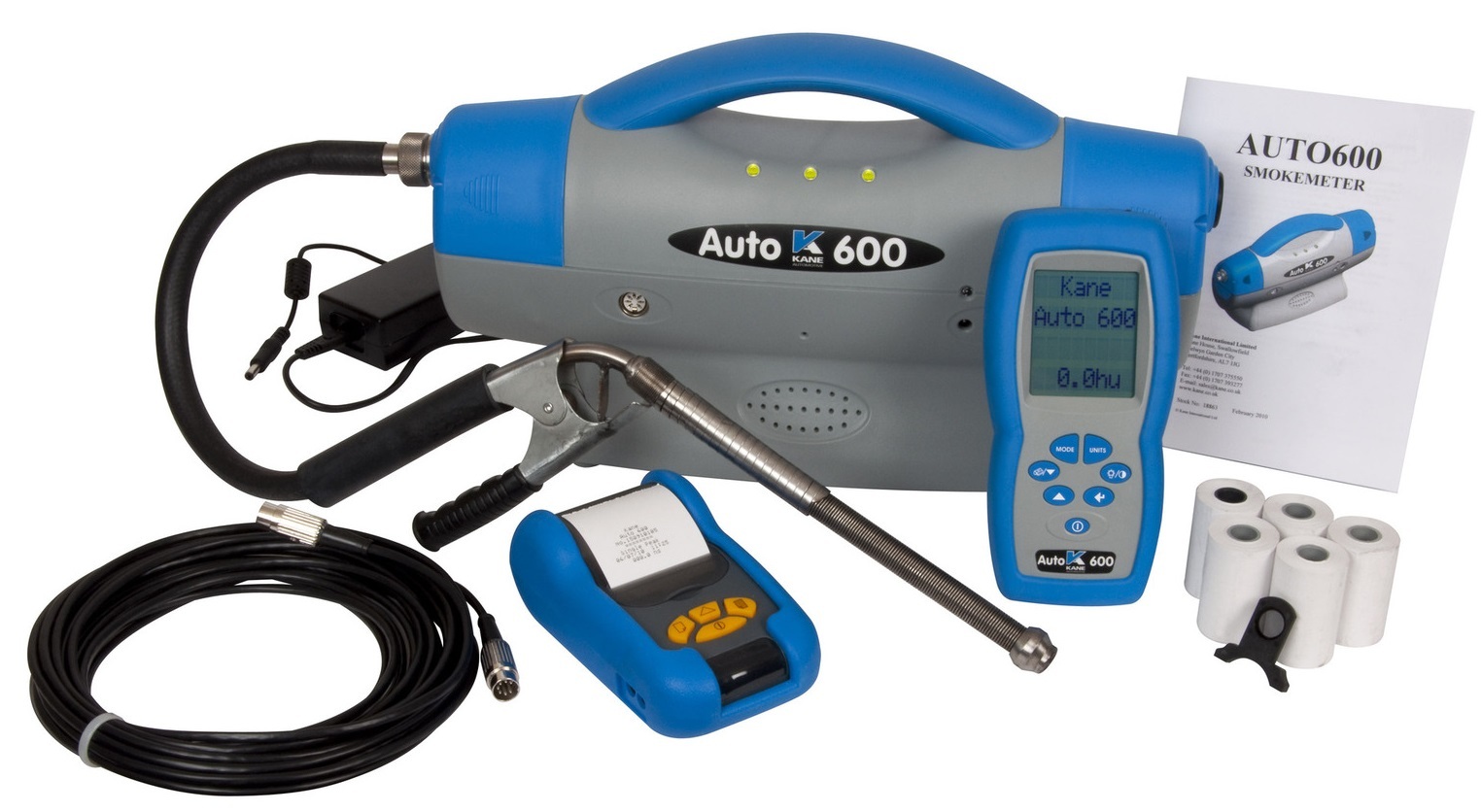

Box Contents

  • Handset
  • Smokehead

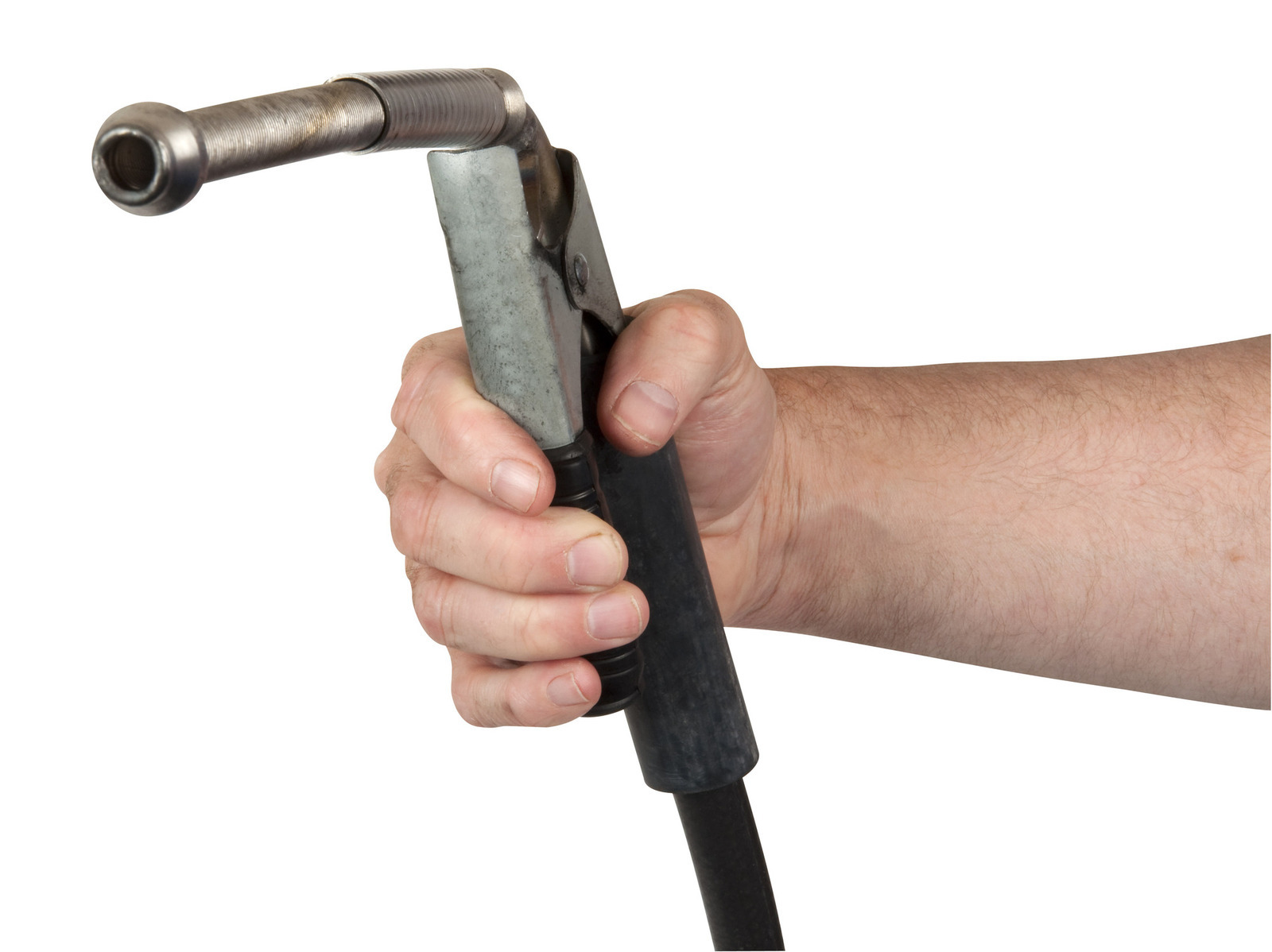

  • Probe
  • AC charger
  • Infra-red printer
  • Calibration filter
  • Printer rolls
  • Manual





Specifications



BASE UNIT

Measurement Range

0 to 16k

Accuracy

±5% of reading or ±0.05k whichever is greatest

Warm up time

In ambient of 20ºC, typically 12 mins

Dimensions

440 mm long
250 mm high
130 mm wide

Internal Supply

12Vdc Nickel-Metal Hydride battery rated capacity 7Ah

External Charger Supply Requirement

13-15Vdc at 4Amps

Fuse Rating

5A(T) time delayed, in 20*5mm form

Weight

4.6 kg

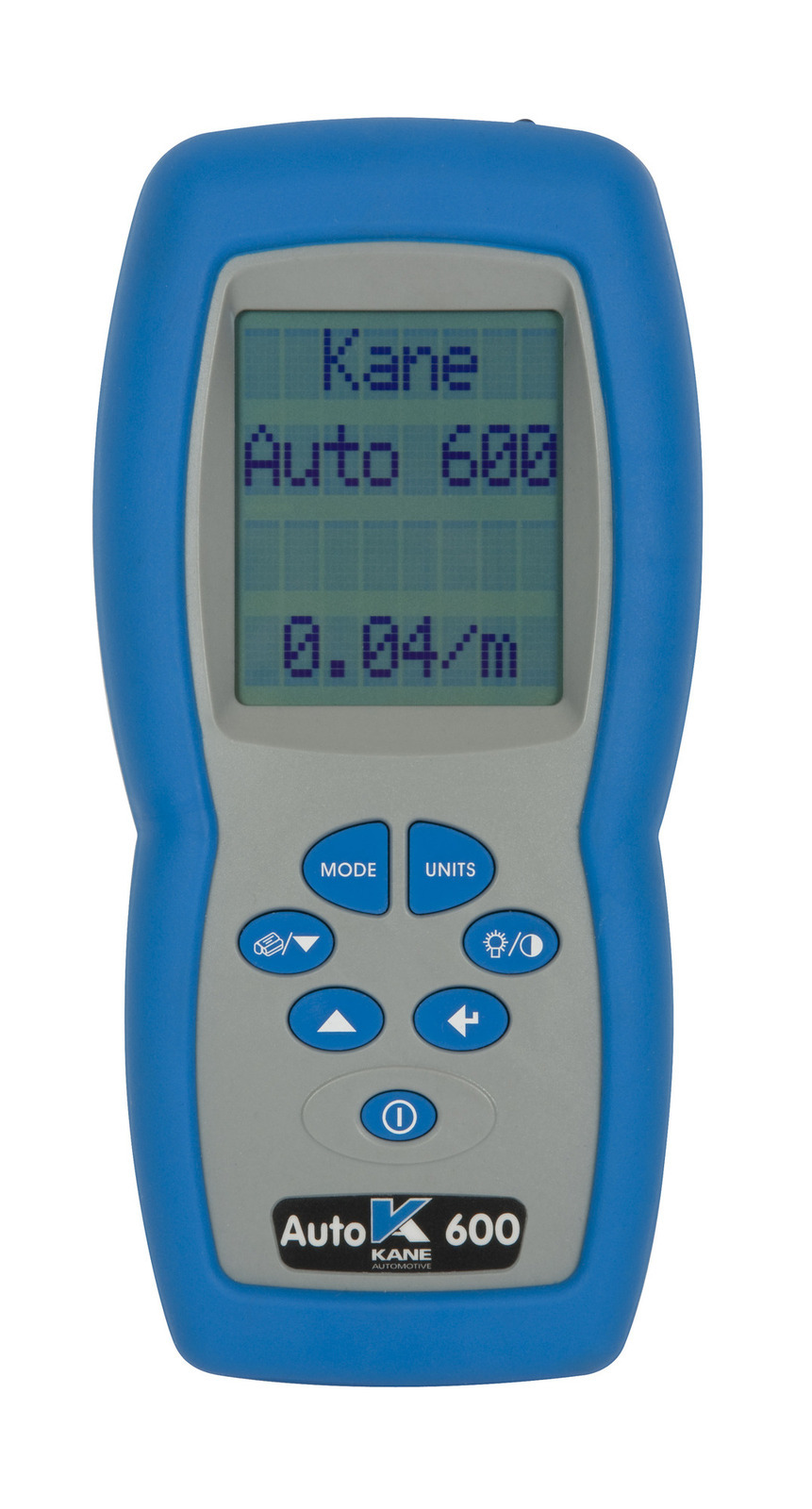

HANDSET

Dimensions

200 mm long
50 mm high
95 mm wide

Keypad

Seven tactile keys

Display

4 line LCD with 8 characters a line, backlight and contrast control

Weight

0.4 kg

Battery type

Non-rechargeable MN1500/LR6/AA alkaline cells x 2

Battery life (alkaline)

50 hours typically on Bluetooth comms.
75 hours typically on serial cable option



PROBE

Dimensions

270 mm Insertion Depth

Weight

0.5 kg



BATTERY MODULE

Type:

NiMh rechargeable (12V, 7AH)

Life:

4 hours from full charge

Charge time:

4 hours



BATTERY CHARGER

Input:

100-240V AC. @ 47-63Hz

Output:

15 V dc @ 4 amps





AMBIENT OPERATING RANGE

-10°C to + 45°C
< 85% RH non condensing





Accesorii standard

Box Contents

  • Handset
  • Smokehead
  • Probe
  • AC charger
  • Infra-red printer
  • Calibration filter
  • Printer rolls
  • Manual
