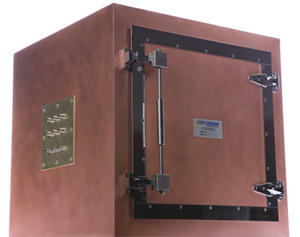

Ease of operation in a compact, portable format
Maximum performance Double Electrically Isolated (DEI) RF door with toggle action over center draw latches
High performance 24 ounce copper shielding construction
Shielding performance of 120 dB+

Test Cell Specifications

Model	Construction	Dimensions (O/D) LxWxH	Opening Dimensions	RF Seal Type
5240-18	24 oz copper clad exterior	450x450 mm/ Dec Type	250x250 mm/ DEC Type	Double Electrical Contact
5240-24	24 oz copper clad exterior	600 x 600 x 600 mm	450 x 450 mm / DEC Type	Double Electrical Contact
5240-30	24 oz copper clad exterior	750x750x750 mm	600x600 mm/ DEC Type	Double Electrical Contact
5240-36	24 oz copper clad exterior	900 x 900 x 900 mm	600 x 600mm / DEC Type	Double Electrical Contact
5240-48	24 oz copper clad exterior	1200 x 1200 x 1200 mm	900 x 900 mm / DEC Type	Double Electrical Contact
5240-2442	24 oz copper clad exterior	600 x 1050 x 600 mm	450 x 450 mm / DEC Type	Double Electrical Contact
5241-12	24 oz copper clad exterior	300x300x300 mm	250x250 mm/ Plate Type	Finger stock
5245	Aluminum, welded seam	430x430x430 mm	450x450 mm/ Plate Type	Finger stock
5247	Series 81 construction	890 x 890 x 1830 mm	450 x 450 mm / Plate Type	Finger Stock
5249	Stainless steel welded seam	255 x 300 x 150 mm	Shielded Lid	Finger stock

Accesorii standard

Optiuni recomandate

Connector plate bulkhead penetrations
Waveguide feedthroughs
Exhaust fan for air circulation and heat dissipation
Fiber optic packages
High performance ferrite tile lining
RF foam absorber lining
High performance door upgrade
