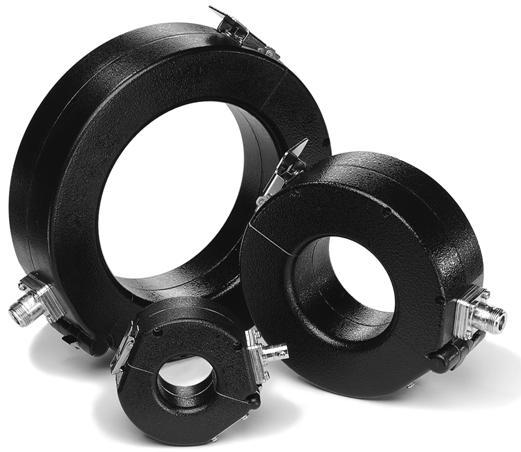

Sonde masura curenti 10 kHz..1000 MHz ETS-Lindgren

Frequency Minimum

10 kHz

Frequency Maximum

8 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 350
DC-60 Hz: 350
Pulse: 100
RF(CW) : 100

Transfer Impedance

0.33 ?

Frequency Minimum

10 kHz

Frequency Maximum

100 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 350
DC-60 Hz: 350
Pulse: 100
RF(CW) : 42

Transfer Impedance

5 ?

Frequency Minimum

10 kHz

Frequency Maximum

150 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 225
DC-60 Hz: 350
Pulse: 100
RF(CW) : 28

Transfer Impedance

1 ?

Frequency Minimum

10 kHz

Frequency Maximum

200 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 275
DC-60 Hz: 350
Pulse: 100
RF(CW) : 2

Transfer Impedance

1 ?

Frequency Minimum

10 kHz

Frequency Maximum

30 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 350
DC-60 Hz: 350
Pulse: 200
RF(CW) : 100

Transfer Impedance

1 ?

Frequency Minimum

10 kHz

Frequency Maximum

30 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 350
DC-60 Hz: 350
Pulse: 200
RF(CW) : 200

Transfer Impedance

2 ?

Frequency Minimum

10 kHz

Frequency Maximum

200 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 300
DC-60 Hz: 300
Pulse: 62
RF(CW) : 62

Transfer Impedance

8 ?

Frequency Minimum

100 kHz

Frequency Maximum

450 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 200
DC-60 Hz: 200
Pulse: 50
RF(CW) : 20

Transfer Impedance

1-10 ?

Frequency Minimum

1 MHz

Frequency Maximum

1000 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 200
DC-60 Hz: 200
Pulse: 50
RF(CW) : 20

Transfer Impedance

1-10 ?

Frequency Minimum

1 MHz

Frequency Maximum

1000 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 200
DC-60 Hz: 200
Pulse: 150
RF(CW) : 1

Transfer Impedance

1 ?

Frequency Minimum

10 kHz

Frequency Maximum

250 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 200
DC-60 Hz: 200
Pulse: 70
RF(CW) : 16

Transfer Impedance

6 ?

Frequency Minimum

10 kHz

Frequency Maximum

100 MHz

Load Impedance

50 +/- j0

Maximum Primary Current Amps

400 Hz: 350
DC-60 Hz: 350
Pulse: 100
RF(CW) : 100

Transfer Impedance

5 ?

Frequency Minimum

1 kHz

Frequency Maximum

5 MHz

Load Impedance

50 +/- j0
