Logic Circuit Lab ED-1006

Cod: ED-1006




Brosura produs PDF, 0.53 Mb

Descriere

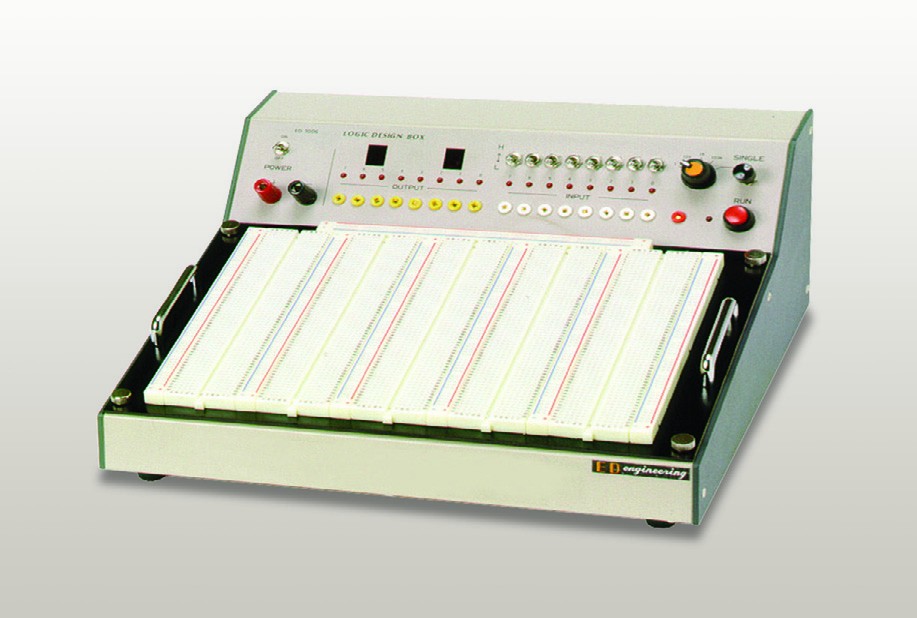

SPECIFICATIONS

  • DC Output
    • 5V, 3A Max.(with overload potection and alarm)
  • Input Voltage : AC 200V 60Hz
  • Dimension : 280(W) x 140(H) x 290(D)mm
  • Weight : 4.5kg
  • Pulse Output
    • 1Hz, 100Hz, 1kHz, 100kHz and manual single pulse
  • Run Output : DC 5V control output
  • Logic(Data) Input Switch : Debounced 8-Toggle Switch
  • Input Indicator : 8-LED
  • Output Monitor
    • 8bits Logic Monitor LED
    • 2 digits hexadecimal display
  • Bread Board
    • 630 Hole IC Socket Strip : 5ea, 100-Hole Bus Strip : 7ea
    • 270(W) x 190(D)mm
  • Jumper Wire : 1 set(red, yellow, green, white, black)



ACCESSORIES

  • Jumper Cord(5-color) : 1set
  • AC Power Cord : 1ea
  • Operating Manual : 1ea



OPTION

  • Bread Board(ED-1006BB)
