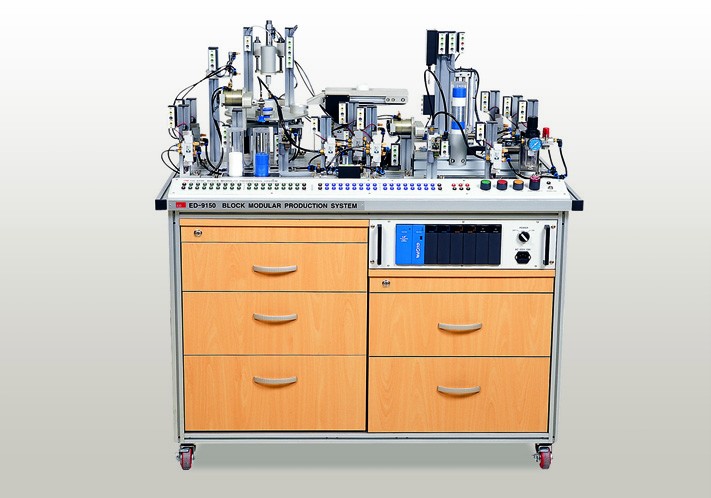

Block Modular Production System ED-9150

Cod: ED-9150




Brosura produs PDF, 0.62 Mb

Descriere

SPECIFICATIONS

  • Distribution Process
    • Raw Material type : ø39 Plastic(white), AL, per depth (total 6)
    • Magazine : Raw material 8 loaded(ø40 x 160mm)
    • Distribution Type : Vacuum rotary cylinder type
  • Inspection Process
    • Inspection Function : Quality, Depth, and so on
    • Using Sensor : Inductive sensor, analog sensor(Linearity 1%,0.6W)
    • Transfer Way : Load less cylinder(ø16 x 200mm),Belt conveyor(45mm x 250mm)
  • Production Process
    • Production Parts Transfer : Index table(divided by 4 as Geneva type)
    • Producing Drill Machine : 5 available(DC24V 20W)
    • Producing Inspection : ø10 x 30mm cylinder
  • Storage process
    • Storage Cell : Load available on quality
    • Transfer Unit : Rotary cylinder
    • Magazine Size : ø40 x 160mm(2set)
    • Transfer Type : Slide cylinder
  • Control Panel
    • PLC I/O Point : 32-Input 32-Output
    • A/D Converter Module
  • Dimension and Weight
    • Main System : 1160(W) x 700(H) x 720(D)mm
    • Control Panel : 582(W) x 1200(H) x 250(D)mm(including Base Board)



ACCESSORIES

  • AC Power Cord : 1ea
  • Patch Cord : 1ea
  • Training Materials : Nonmetal 6ea, Metal 6ea
  • User’s Manual : 1ea
  • Program CD : 1ea  • Piping Hose : 1set
  • Drill Blade : 1ea   • RS232C Cable : 1ea



OPTIONS

  • Simulation Software Programmable Logic Controller (EDS-SimPL)
