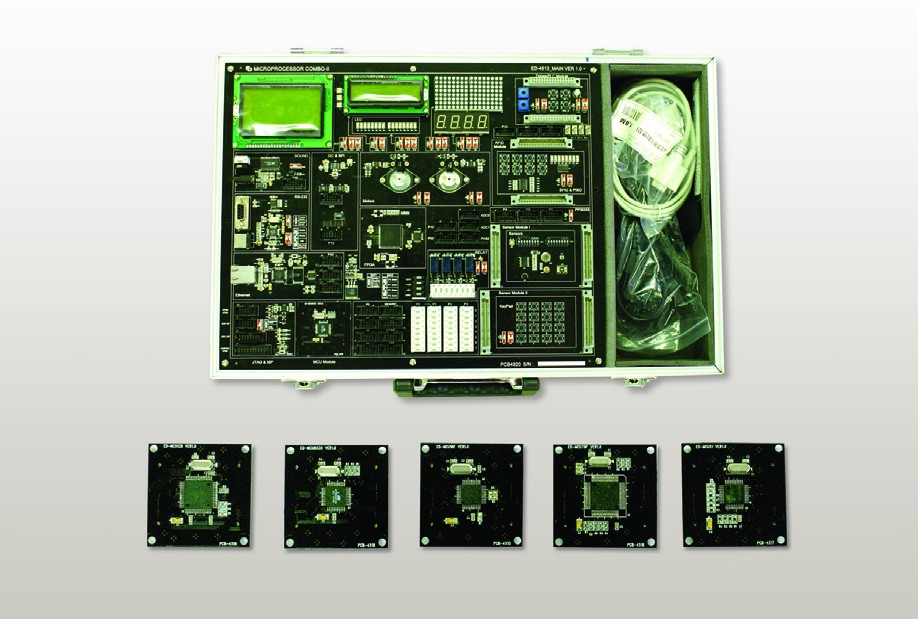

Microprocessor Combo II ED-4513

Cod: ED-4513




Brosura produs PDF, 0.67 Mb

Descriere

EXPERIMENTS

  • Digital I/O control - Tact Switch, Toggle Switch, Relay control, Key Matrix
  • Display control - FND, Dot matrix, TEXT LCD, Graphic LCD
  • Motor Control - DC Motor(24V), Stepping Motor (24V)
  • ADC/DAC Control - LM35, VR, CDS, Human detection sensor
  • Communication Control -  RS-232, USB, Ethernet
  • Time/Temperature - DS1620, DS1302
  • External EEPROM Read/Write - 2432, 9366 (EEPROM) READ/WRITE
  • RFID/Zigbee/LonWork s(Option)



Features:

  • Mountable 5pieces MCU(8051,PIC, ATmega128, ATmega8535, upd78F0547)
  • Practice of various communications such as RS-232 USB and Ethernet
  • SoC experiments using the default FPGA (EP1C4F324)
  • Storage of sensor data display and excel data using UI(LabVIEW)
  • Module Extension : RFID(13.56MHz), ZigBee, LonWorks, 8 sensor modules(options)
  • Possible to be linked with ED-3160 and ED-5965(options)
