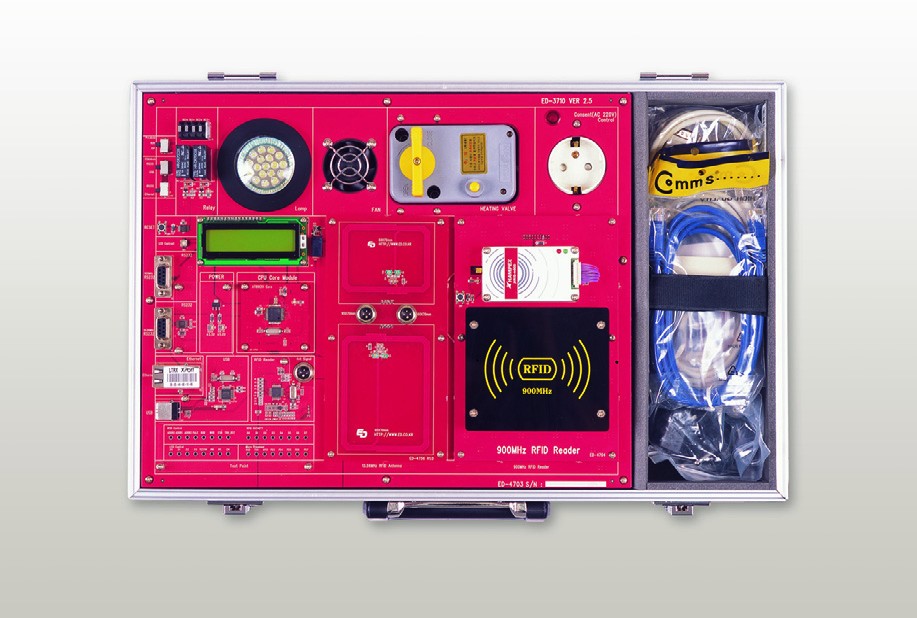

RFID Application Trainer ED-3710

Cod: ED-3710




Brosura produs PDF, 0.62 Mb

Descriere





Features:

  • Multi Protocol RFID Reader module that meets the ISO standard and USA’s EPCglobal standard
  • Suitable for large-scale logistics and retail systems by the multiple tag recognition over 30 objects per second
  • Supports ISO/IEC18000-6B/6C, EPC C1G1, C1Gen2 Multi-protocol
  • Small, thin and low power design with the world-class MIC and TTA certified
  • RF output controllable by the user(Max. +30dBm)
  • Convenient host interface and firmware upgrade through serial communication
  • 900MHz RFID R/W application program
  • Supports ISO/IEC 14443 Type A, Type B and ISO/IEC 15693 standards
  • Supports I-CODE and Tag-It protocol
  • Low power architecture
  • Internal oscillator buffer to connect 13.56 MHz quartz
  • Supports SPI-compatible serial interface
  • Programmable ASK modulation rate from 8% to 100%
  • Programmable transmission current up to 120mA
  • Multi-protocol RFID Reader function



APPLICATION USAGE

  • Digital door-lock / building entrance
  • E-cash reader
  • Public transport terminals
  • Handheld terminals
  • On board Units
  • Contactless PC terminals
  • Portable or fixed type RFID Reader
  • Security, logistics and factory automation



ACCESSORIES

  • AC Power Cord : 1ea
  • Serial Cable : 2ea
  • Program CD : 1ea
  • User’s Manual : 1ea
