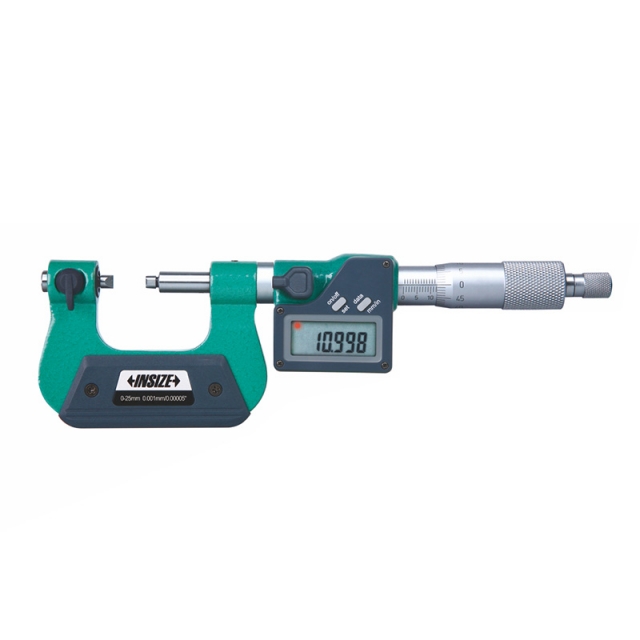

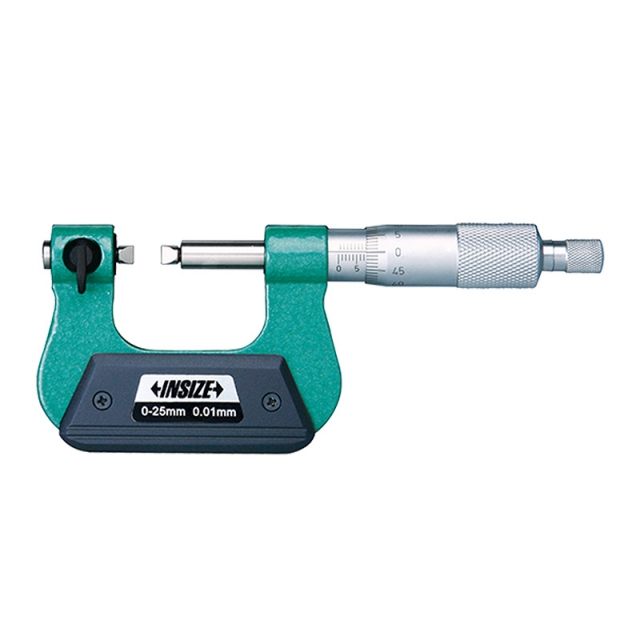

• Measure pitch diameter of external screw threads
• V-shaped tip travel: 3mm
• Button function: on/off, zero, inch/metric conversion, absolute/incremental measurement

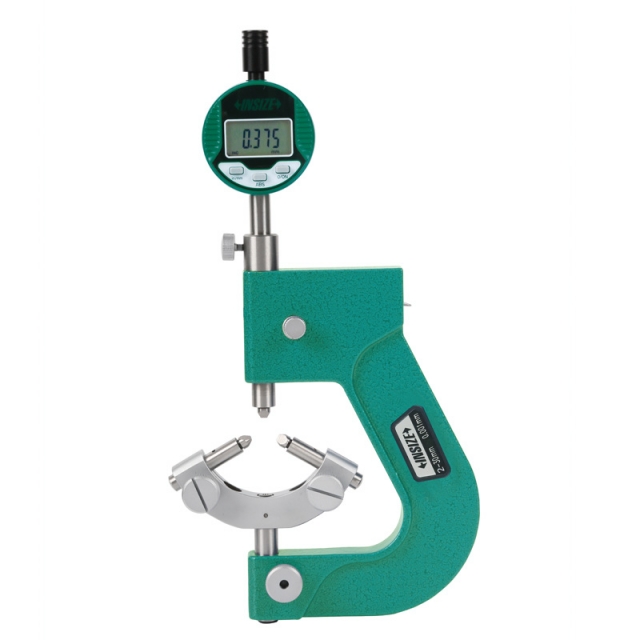

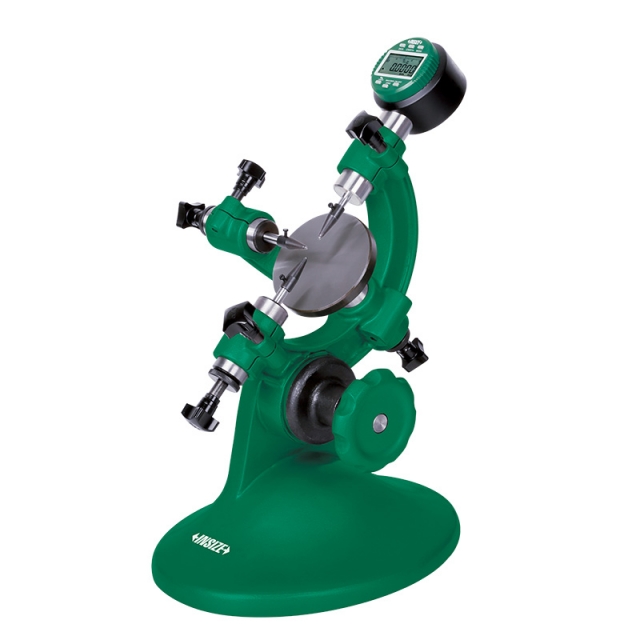

• To measure diameter and roundness of cylinders and steel balls
• Supplied with measuring base (code 6847-A100)
• Optional accessory: Ø28mm/Ø8mm bush (code 6843-B8), 0.001mm digital/dial indicators, high precision digital indicators (code 2140-6, 2140-6WL), gauge blocks (4101 series, for zero setting of cylinders), custom plug gauges (for zero setting of cylinders), ceramic standard balls (4190 series, for zero setting of steel balls)

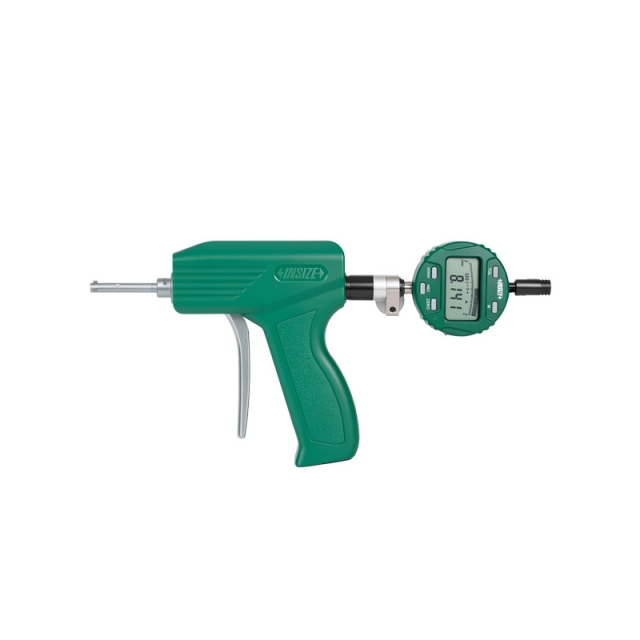

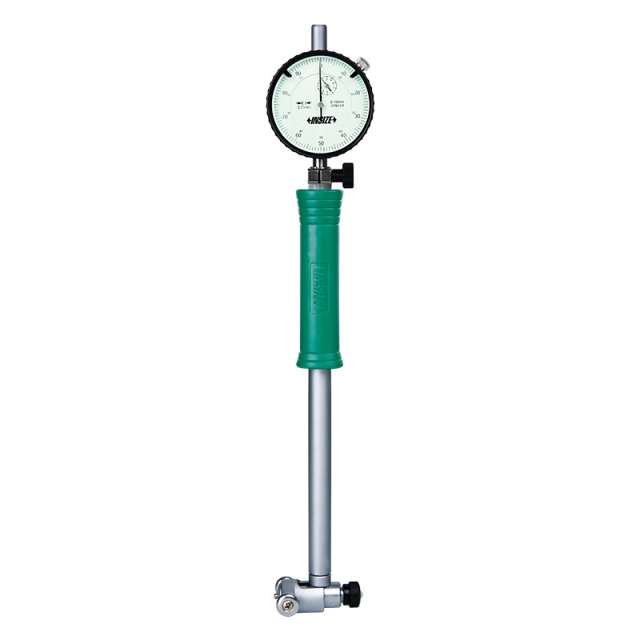

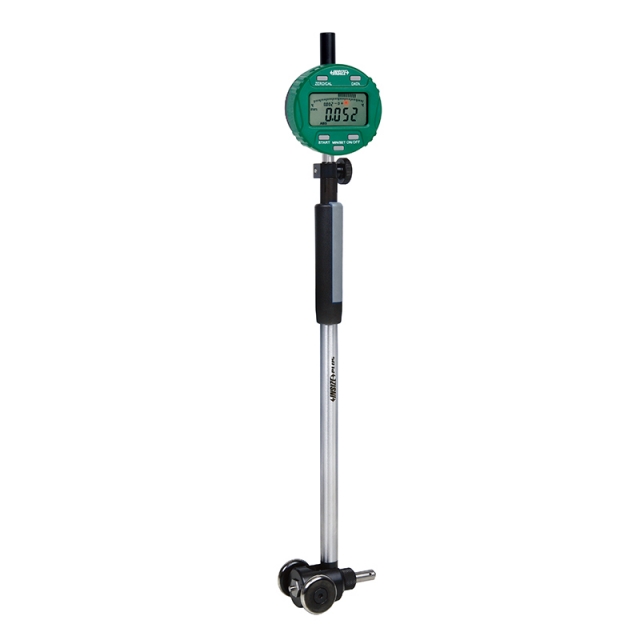

• Measure internal/external diameter, variation and taper
• Total range of movable point: 2mm, effective range of movable point: ±0.1mm

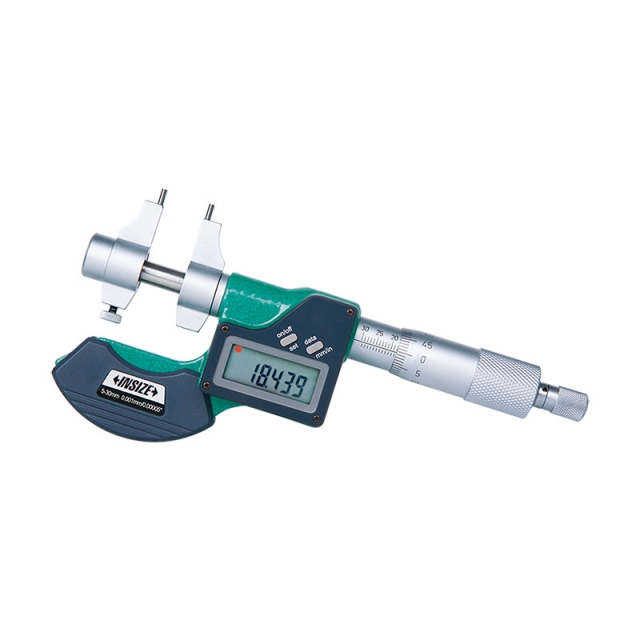

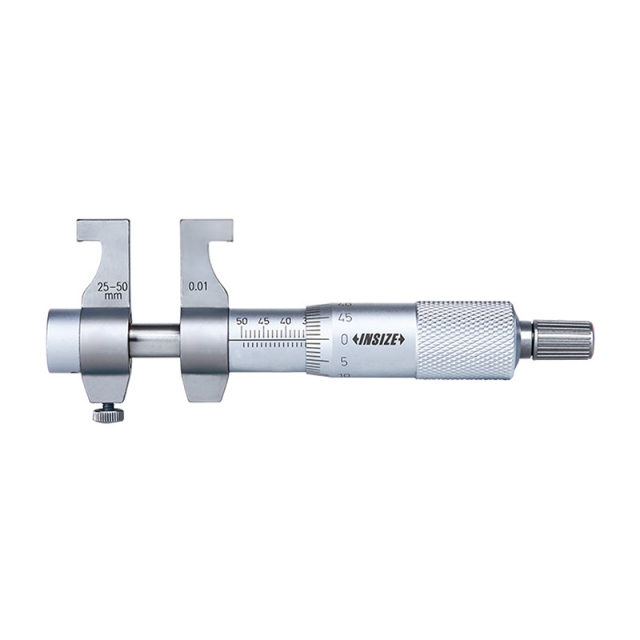

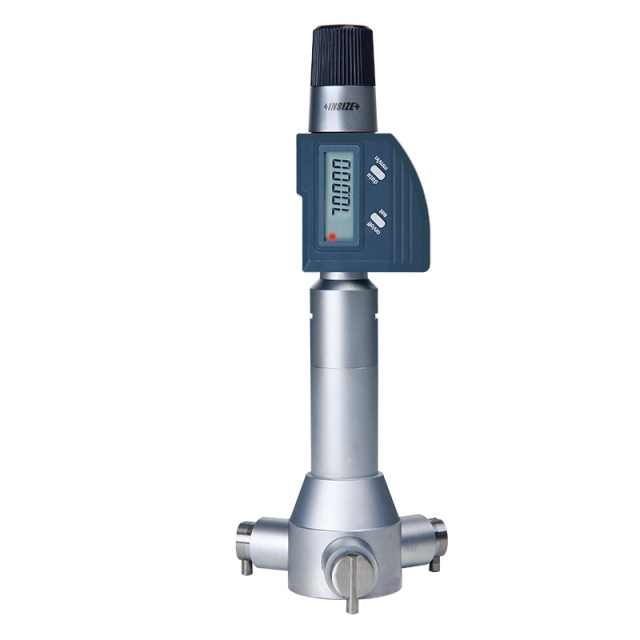

• Measure internal dimensions
• Movable point stroke: 5mm/0.2"
• Point height is adjustable, h=2-25mm

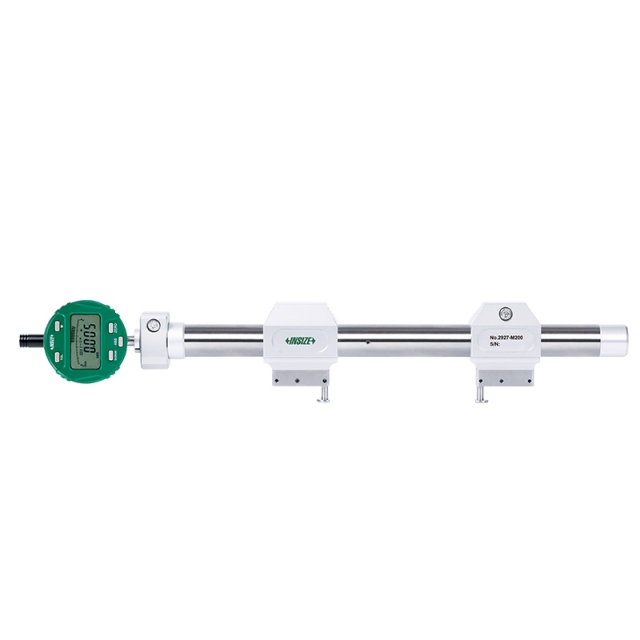

• Measure outer diameter, inside diameter and center-to-center distance



• Adjustable main scale to set zero
• Carbide tipped scriber
• Made of stainless steel (except the base)

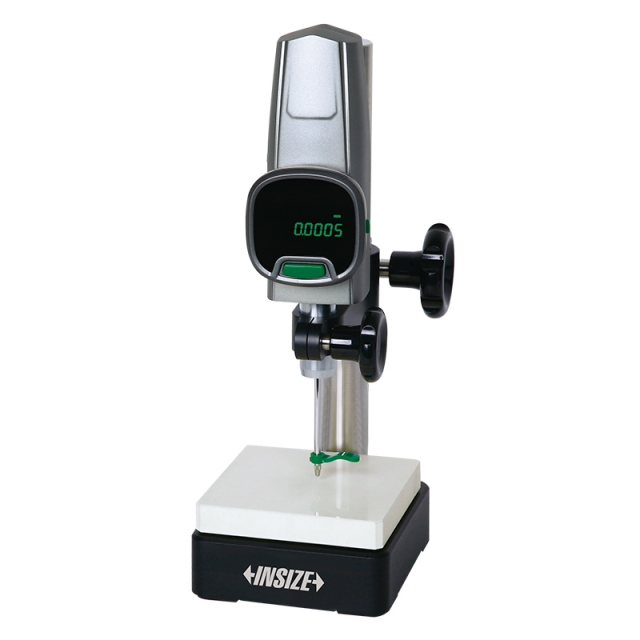

• High stability, high precision, high response speed (5000mm/s)
• High brightness LED display
• Ceramic base flatness: 2µm



• Stainless steel base
• Supplied with pointed tip and ball tip

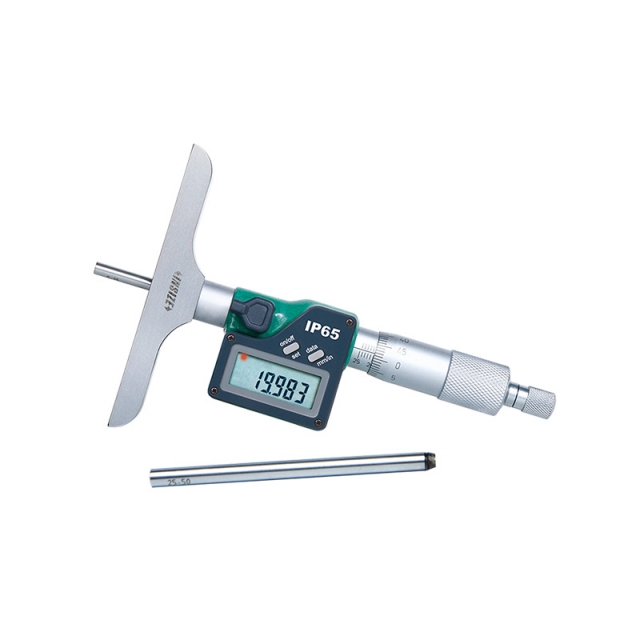

• Micrometer head accuracy: +/-3μm
• Rod accuracy: +/-(2+L/75)μm, L is the measuring range in mm

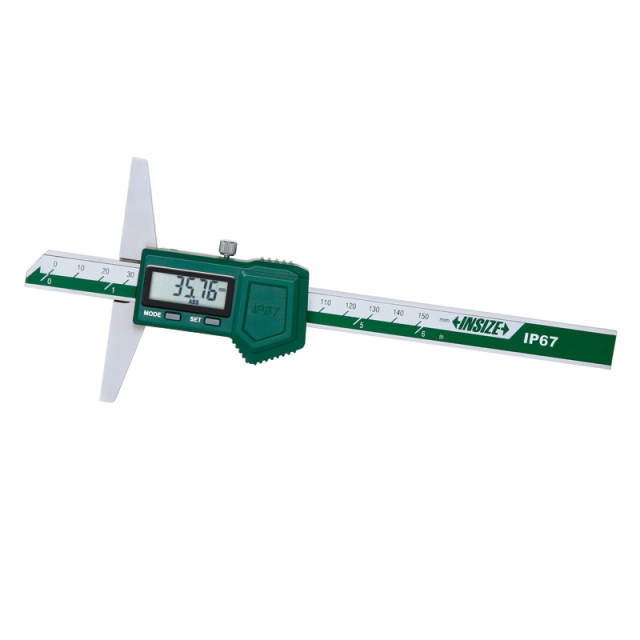

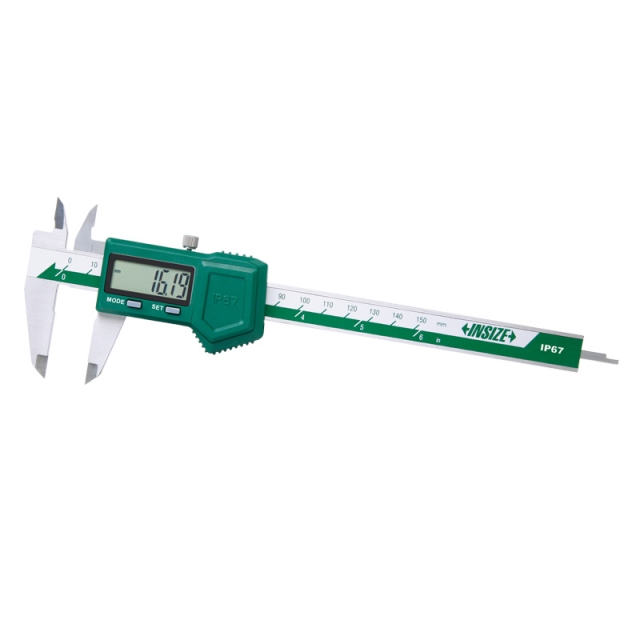

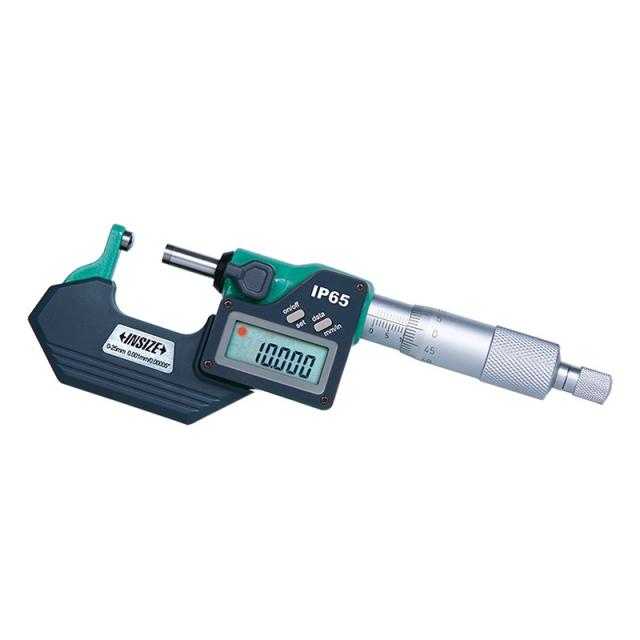

• Button function: on/off, set, mm/inch, data transmit



• IP67 dust/waterproof
• Button function: zero, on/off, mm/inch, ABS/REL, hold
• Meet DIN862



• Made of stainless steel
• Satin chrome plated reading surface



• Button function: zero, on/off, mm/inch, ABS/REL, hold
• Battery CR2032
• Meet DIN862



• Buttons: on/off, zero, mm/inch
• Automatic power off, move the digital unit to turn on power
• Battery CR2032

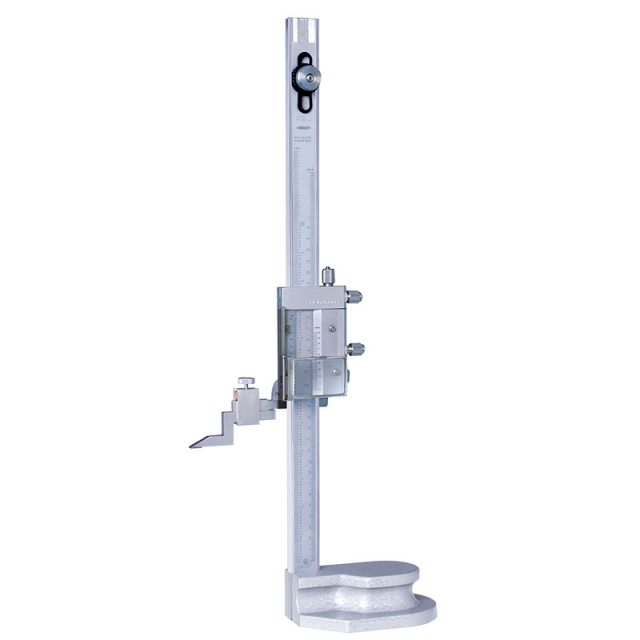

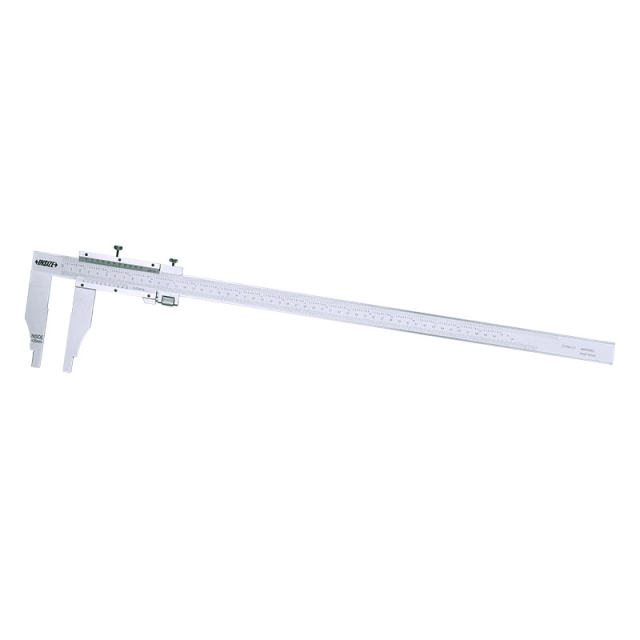

• With fine adjustment
• Made of stainless steel
• Satin chrome plated reading surface

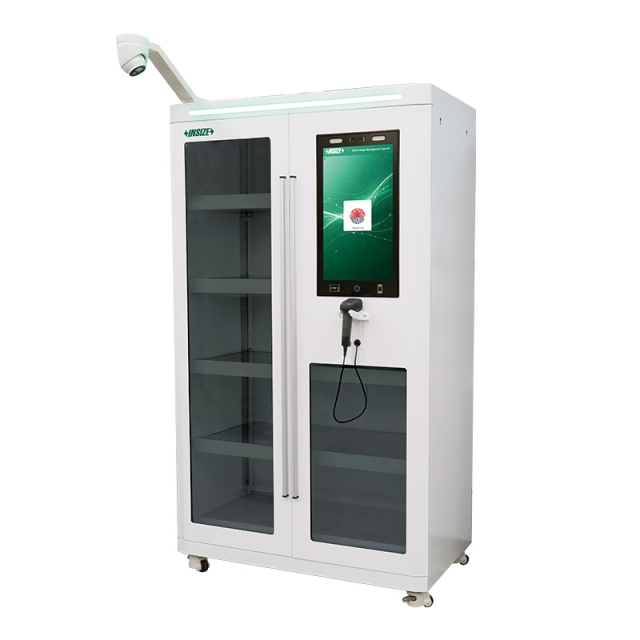

• Applicable products: gauges and tools labeled with QR codes, barcodes or RFID labels
• Combination: 1pc master cabinet can connect up to 4pcs slave cabinets of the same series for expansion
• Login methods: face recognition, fingerprint, employee card, account&password

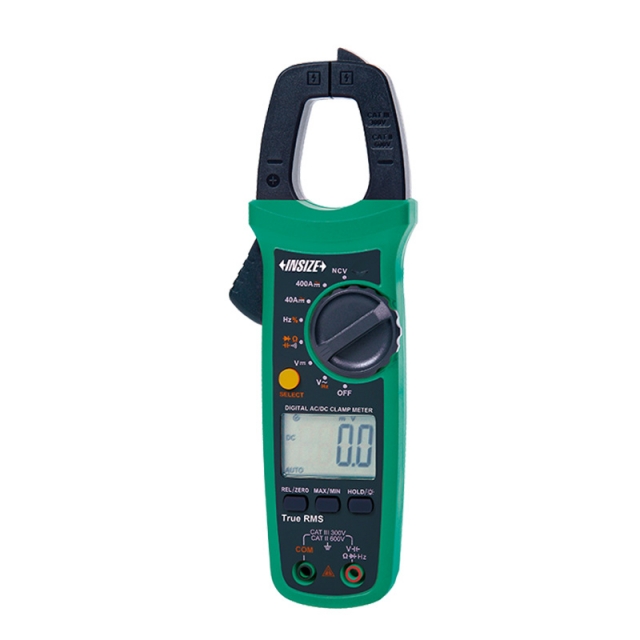

• 4000 counts display
• 28mm jaw opening
• NCV detection with light and sound alarm

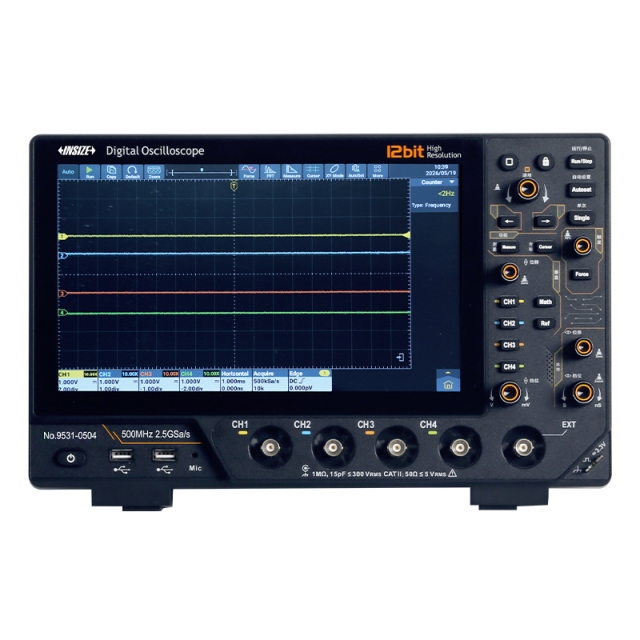

• Analogue bandwidth: 100MHz~500MHz
• Memory depth: 100Mpts
• Maximum real-time sampling rate: 2.5GSa/s



• Portable size with protective case

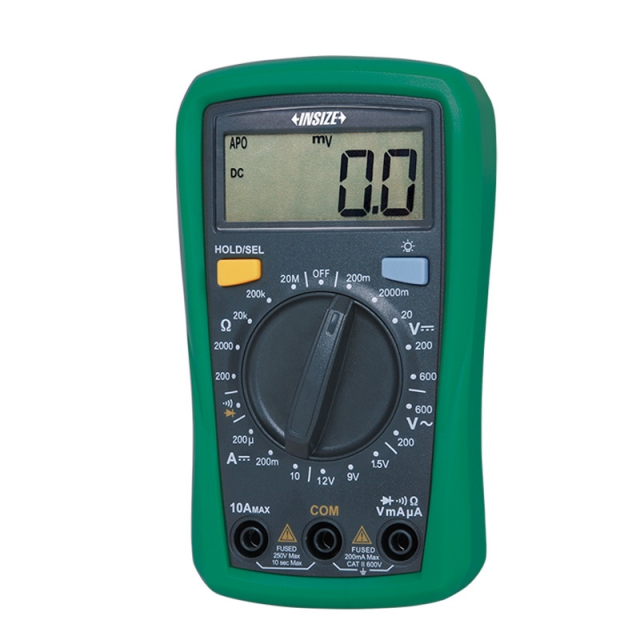

• 1999 counts digital display
• Data hold



• Energy-saving operation
• Two quick-connect ports
• Screw type fine adjustment



• Dial rotates 330°

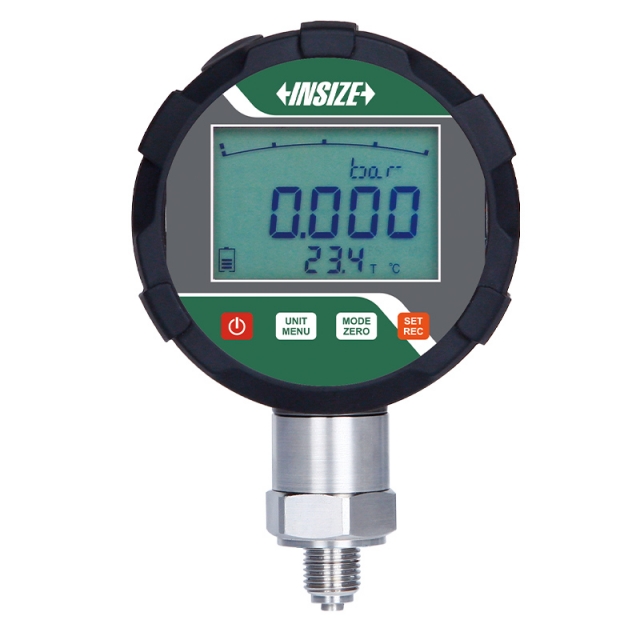

• 12 pressure units can be switched
• The main screen displays the pressure, the secondary screen displays the ambient temperature, maximum pressure value, minimum pressure value, range etc.
