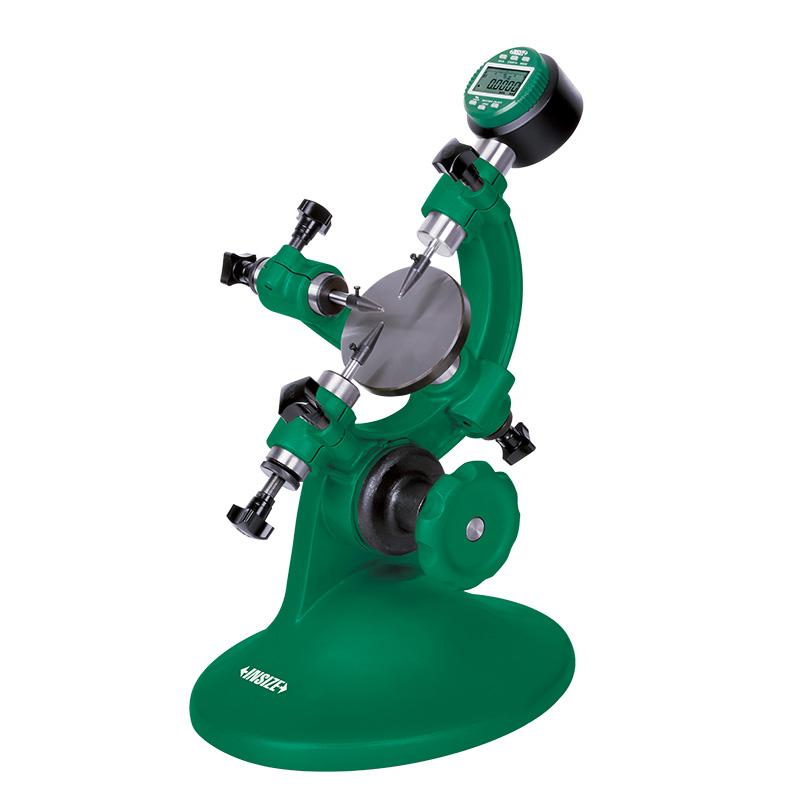

To measure diameter and roundness of cylinders and steel balls
Supplied with measuring base (code 6847-A100)
Optional accessory: Ø28mm/Ø8mm bush (code 6843-B8), 0.001mm digital/dial indicators, high precision digital indicators (code 2140-6, 2140-6WL), gauge blocks (4101 series, for zero setting of cylinders), custom plug gauges (for zero setting of cylinders), ceramic standard balls (4190 series, for zero setting of steel balls)

Code: 6847-50

Accuracy: ±0.001mm

Repeatability: 0.0005mm

Range of outside diameter: 1.5-50mm/0.06-2"

More products INSIZE2

FIBER LASER MARKER LMT-F200

• Suitable for marking on metal, plastic, electroplated materials, and spray-coated materials
• Fundamental mode beam with higher electro-optical conversion efficiency
• Integrated optical module design for greater stability

ISU-200D ULTRASONIC THICKNESS GAUGE

• With zero calibration and two-point calibration function, can automatically correct the system error
• Measure method: single point, scanning, deviation
• Measures steel, cast iron, aluminum, copper, plastics, ceramics, glass, fiberglass, etc

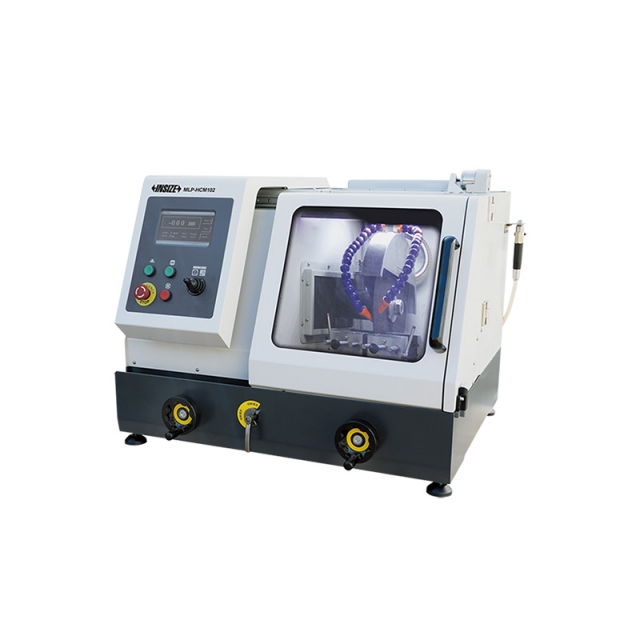

AUTOMATIC CUTTING MACHINE MLP-HCM102

• Suitable for cylinder workpieces (diameter≤100mm) and rectangular samples (height≤70mm, width≤100mm)
• Cooling system avoids overheating and destroying sample structure
• Three cutting modes (manual, pulse, continuous cutting), the cutting feed speed and cutting stroke can be programed

ADJUSTABLE SQUARE 4701-1

• The straight edge can move and can be locked by the clamping screw
• Made of hardened stainless steel

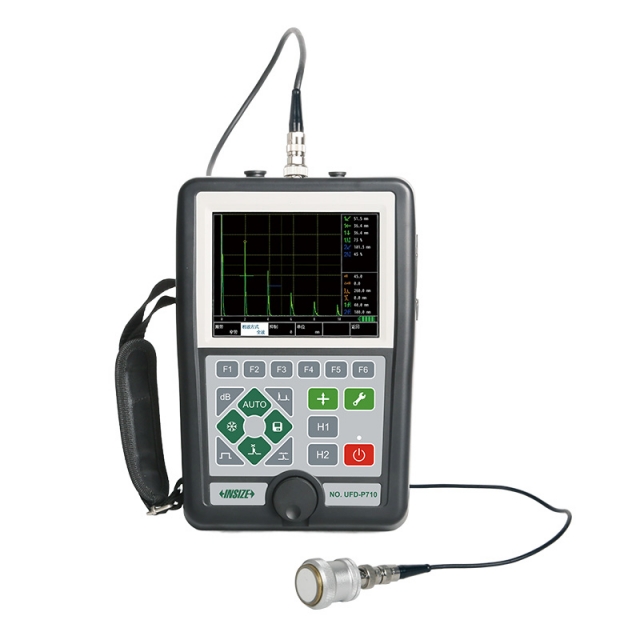

DIGITAL ULTRASONIC FLAW DETECTOR UFD-P710

• With fast, accurate display and analysis of defective echo signals, a variety of weak signal changes and details can respond in a timely manner, the real-time echo signal and authenticity can be effectively guaranteed

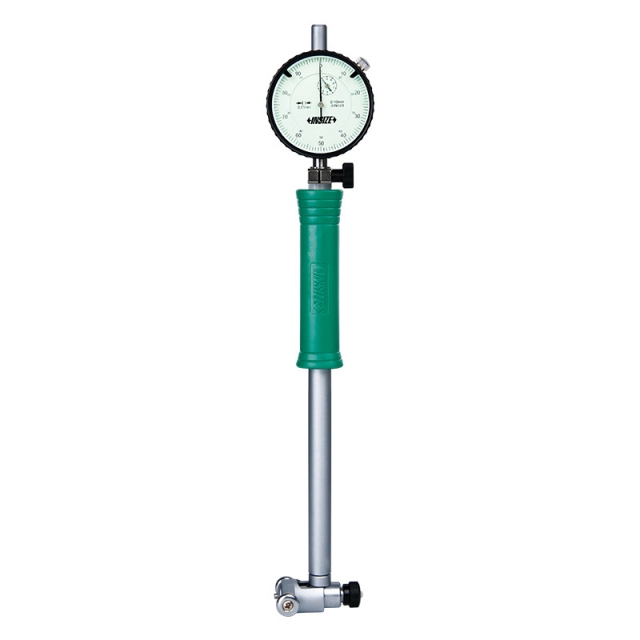

BORE GAUGE 2322-35A

• Optional accessory: setting ring (code 6312), long handle (code 7351), bore gauge setter

DIGITAL INTERNAL CHAMFER GAUGE 2962-209

• Measure end diameter of chamfer holes
• Resolution: 0.01mm/0.0005"
• Direct read (end diameter), no calculations

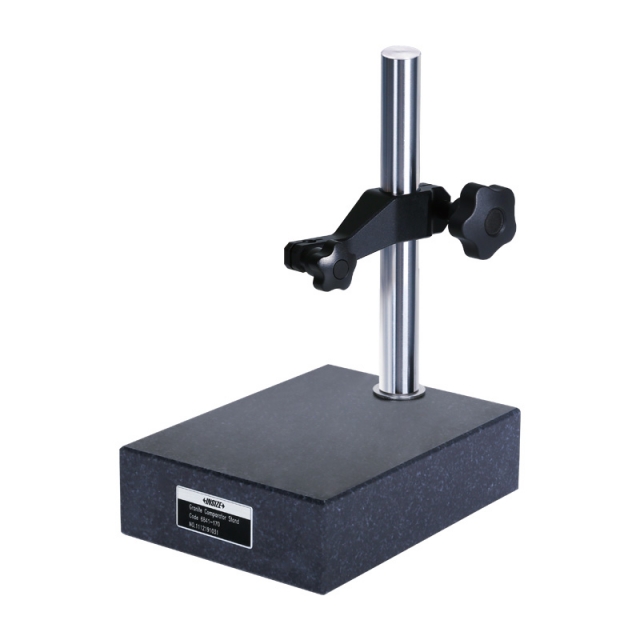

GRANITE DIAL INDICATOR STAND 6841-170

• Supplied with dust cover

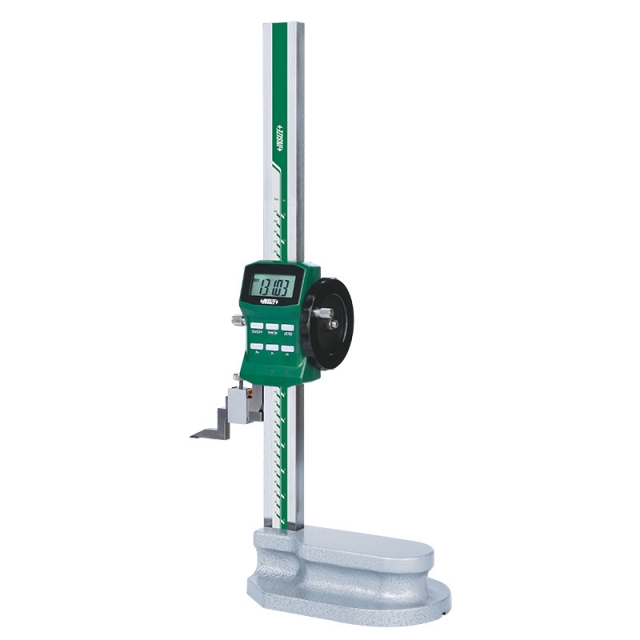

DIGITAL HEIGHT GAUGE 1157-501
