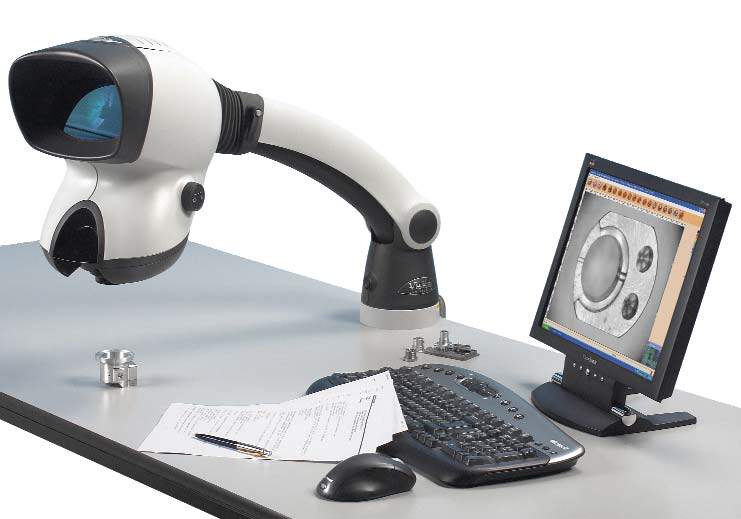

Mantis Elite-Cam is comprised of a standard Mantis Elite, with a factory-integrated digital camera, bringing image capture capabilities to the outstanding eyepieceless optics of Mantis.

Mantis Elite-Cam offers superb optical performance with the ability to capture and archive images effortlessly.

Comprised of a Mantis Elite optical head, with factory integrated and sealed high resolution� USB2.0 camera
Permanently engaged digital camera permits simultaneous optical and digital viewing
Image projection capability ideal for training purposes
USB2.0 connectivity with easy-to-use PC-based software
Simple image capture software allows for storage, reference and electronic communication
Variety of image capture formats including: .bmp, .jpg and .png
Compatible with Mantis Elite options & accessories

Image Solutions is an Imaging and

Measurement software option for Mantis Elite-Cam, providing fast, precise imaging of

your samples and components.

The intuitive Image Solutions software can measure (2D) lines, circles, areas, angles and more, with clear graphic presentation and simple calibration..

Plug & play USB 2.0 interface

Full screen live display - Live video display at full screen with interactively adjustable camera settings

One click video capturing - Capture images, time lapse sequences and movies

Live annotation - Unique "live label" annotation tools. Draw text and arrows on top of live image

Measurement capability - Quick measurements of defects. Stored calibrations allow distance, radius/diameter, angle measurements immediately printed on image

Live video display with one button capture
Store in multiple formats i.e. .jpg, .bmp, .tif
Store still image and video clips
Fast measurement tools on live image
Simple text, arrow, and drawing tools
One click print and E-mail system

Accesorii standard

Lens protection caps
Dust cover
Replacement LED array
USB cable, 3 foot
Standard image capture software
Installation CD

Optiuni recomandate

Universal Stand

Mantis Compact, with counter-balanced universal stand, for flexibility and ease of use.

Articulated Arm

Designed specifically for applications requiring

extended reach, without compromising stability.

Bench Stand

High stability bench stand with integral focus, dimmable substage illumination.

Floating Stage

Provides smooth and sensitive control allowing for samples to be accurately inspected. For use with bench stand only.

UV Lighting

For UV inspection applications and fast and accurate fault detection.

Floor Stand

Ideal for inspection where subjects are immobile or require a standing position. For use in conjunction with articulated arm. Lift, swing, tilt and rotate

capabilities.

Secondary Link Arm

A secondary link increases total reach of articulated arm to 33.3" (847.5mm) and provides added flexibility and maneuverability

Episcopic Illuminator

Through-the-lens illumination for the inspection of bore holes and complex internal/external features. Iris control for precise light positioning.
