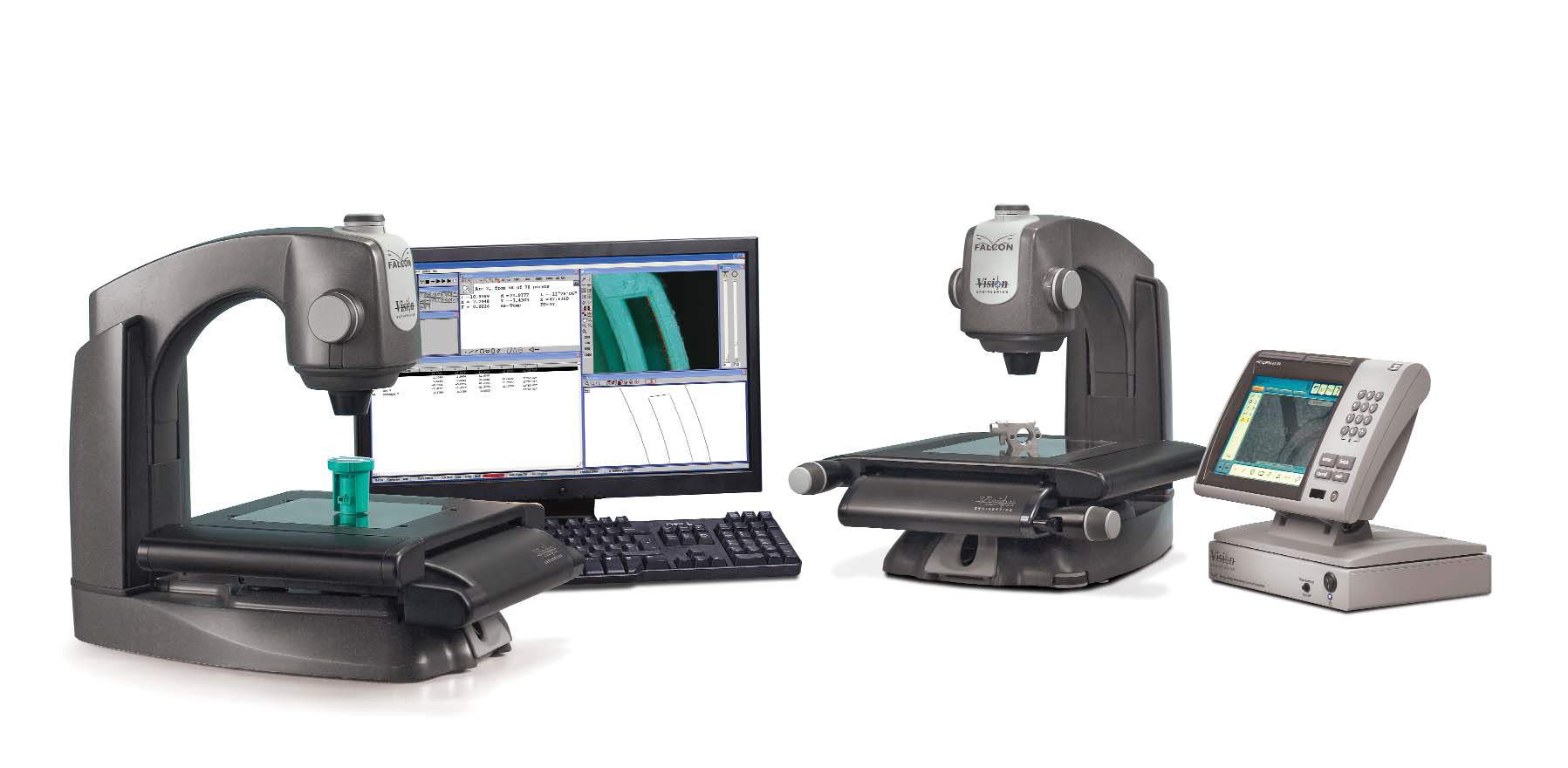

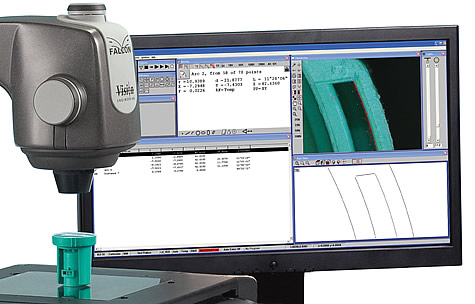

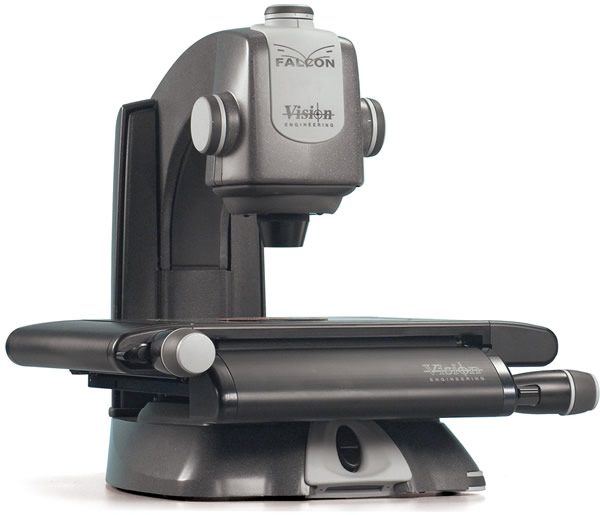

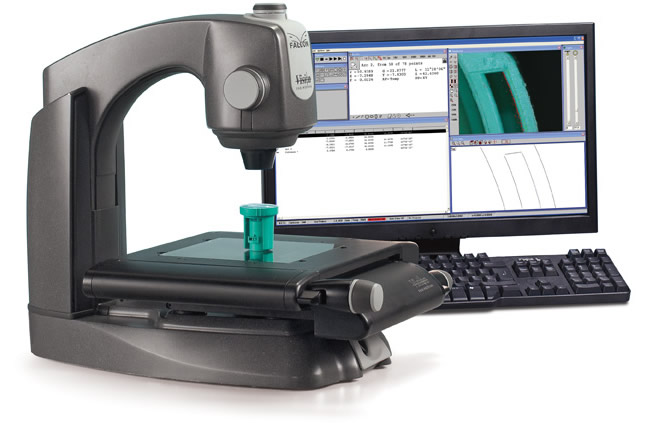

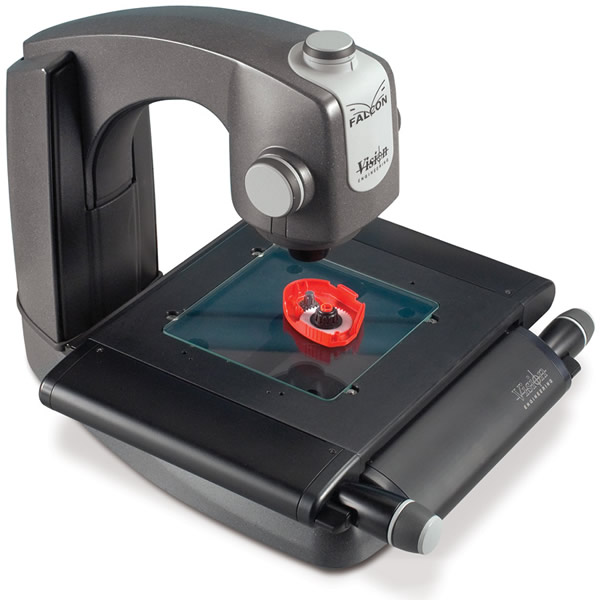

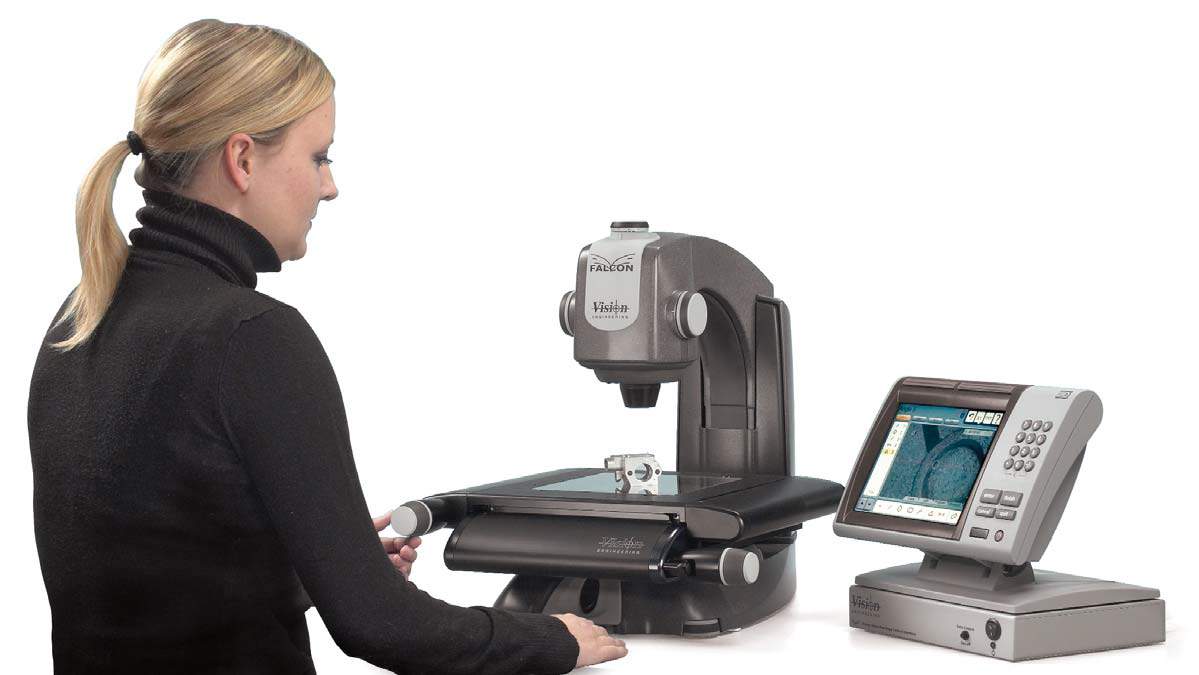

Microscop video masura trei axe cu precizie ridicata Vision Falcon

Cod: Vision Falcon




Brosura produs PDF, 0.78 Mb


Descriere

  • 50 years of proven optical experience, packed into a powerful 3-axis non-contact video measuring system
  • High accuracy, value-for-money system
  • Powerful and intuitive with amazing simplicity
  • Compact, robust system with small footprint
  • Range of system configurations and options, including fully automated CNC control

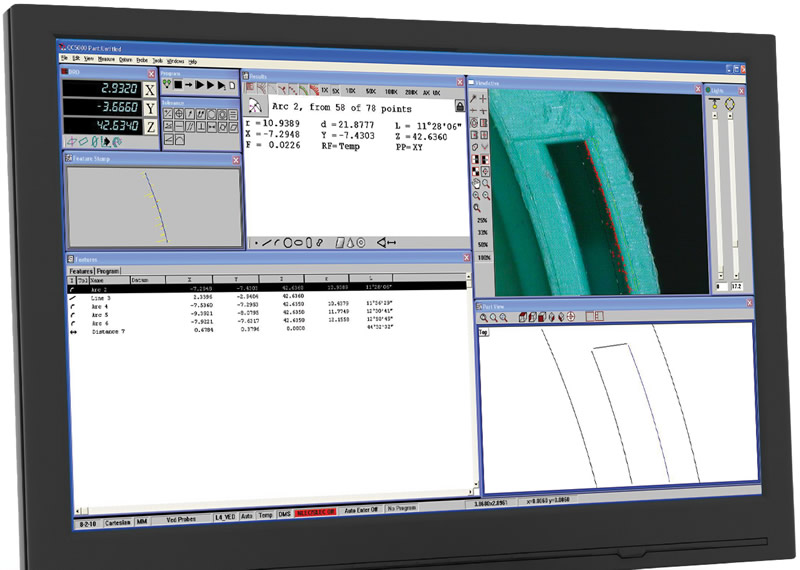

  • Highly capable PC-based software with advanced data analysis and reporting
  • High repeatable accuracy, value-for-money 3-axis video measuring machine
  • ‘Best-in-class’ performance, with advanced capabilities, as standard
  • Powerful, intuitive and affordable, delivering accurate results, with confidence
  • High resolution indexed zoom optics offer precision and flexibility
  • Large field of view for easy sample orientation
  • Progressive motorised Z-axis control
  • Factory-completed NLEC* and SLEC† calibratio


Alte produse VISION ENGINEERING

SISTEM MICROSCOPIC VIDEO MASURA BIDIMENSIONAL VISION SWIFT

• Simple, compact, accurate
• With space at a premium, Swift doesn't take up much room, yet can make a big difference to your production quality.
• Rugged in construction, the unit has been designed to cope with the demands of a busy production environment.
• 2-axis video measuring system, ideal for measuring 2-D features of small, intricate parts
• Low capital investment, high accuracy measurement system
• Next generation 'touch-to-measure' measurement software
• Modular construction allows future upgrade option of combined video and microscope measurement technologies



SISTEM INSPECTIE MICROSCOPICA DIGITALA CU CAPTURA IMAGINI VISION MAKROPTIC

• Exceptionally large field of view, up to 205mm wide
• 36:1 optical zoom permits detailed investigation of features (maximum magnification 60x*)
• Manual or automatic focus
• Full array of annotation tools, including text, arrows, markers and measurements
• Perform simple 2D measurements (point-to-point, circles, angles, projections, areas and circumferences)
• Save captured images in JPEG, BMP or TIFF format
• CAD file import option, allowing inspection with CAD overlay



MICROSCOP STEREO OPTIC CU CAMERA FOTO INTEGRATA VISION MANTIS ELITE-CAM

• Comprised of a Mantis Elite optical head, with factory integrated and sealed high resolution† USB2.0 camera
• Permanently engaged digital camera permits simultaneous optical and digital viewing
• Image projection capability ideal for training purposes
• USB2.0 connectivity with easy-to-use PC-based software
• Simple image capture software allows for storage, reference and electronic communication
• Variety of image capture formats including: .bmp, .jpg and .png



MICROSCOP STEREO INSPECTIE VIZUALA VISION MANTIS COMPACT

• High value, low investment system
• Superior ergonomics for improved productivity and increased output
• Long working distances for easy sample manipulation and rework
• x2, x4, x6 and x8 quick change objectives
• Bright white, true color, LED illumination providing up to 10,000 hours of shadow-free viewing



MICROSCOP STEREO OPTIC BINOCULAR CU ZOOM DE PRECIZIE VISION ALPHA

• Wide range of magnification x2.1 - x160
• Patented stereo Expanded-Pupil optical technology provides superb resolution and contrast
• Easy hand-to-eye coordination resulting in increased throughput, accuracy and reduced scrap
• Stereo optics for easy viewing and documenting of complex surfaces



SISTEM MICROSCOPIC DIGITAL MASURA DOUA AXE FARA CONTACT VISION KESTREL ELITE

• Non-Contact Measuring Microscope for precision measurement & inspection
• 2-axis non-contact measurement, ideal for measuring
• 2-D features of small, intricate parts
• Patented optical image clearly defines edges, offering superb resolution and contrast
• High accuracy, low investment system
• Choice of rugged and intuitive microprocessor, or state-of-the-art touch-screen tablet PC



SISTEM MASURA MICROSCOPICA 3D TRIDIMENSIONALA INALTA PRECIZIE VISION HAWK

• Non-Contact Measuring Systems
• For inspection and measurement of 3-dimensional parts
• High repeatable accuracy 3-axis non-contact measurements
• Patented optical image clearly defines edges, offering superb resolution and contrast
• Powerful and intuitive microprocessors deliver simple, fast results
• Optional video edge detection for higher throughput measurements
• Wide range of system configurations and options, including fully automated CNC control



MICROSCOP STEREO OPTIC 20X VISION MANTIS ELITE

• High value, high specification patented design with superb optical performance
• x2 - x20 magnification options with quick change turret allows users to switch between low magnification inspection and high magnification fine detail tasks
• Patented eyepieceless optics maximize head freedom providing superb ergonomics and minimal eye fatigue



MICROSCOP BINOCULAR OPTIC DE LABORATOR VISION DX41

• Routine Laboratory Microscope
• X40 - x1000 magnification range
• Brightfield, polarized light, phase contrast, darkfield and fluorescence
• Patented eyepieceless optics reduce operator fatigue (optional)
• Multi-viewing attachment for training (optional)
• Outstanding optical performance through infinity corrected objectives
• Range of illumination options, including phase contrast, darkfield and fluorescence



SISTEM MICROSCOPIC DE MASURA DUAL: OPTIC SI VIDEO 2 AXE VISION SWIFT-DUO

• Two measurement systems in one
• 2-axis dual video and optical measuring system, ideal for measuring 2-D features of small, intricate parts
• Combined video and microscope measurement technologies
• Seamlessly switch between video and microscope measurement
• Patented optical ergonomic microscope offers high resolution surface inspection
• Next generation 'touch-to-measure' measurement software
• Low capital investment, high accuracy measurement systems
