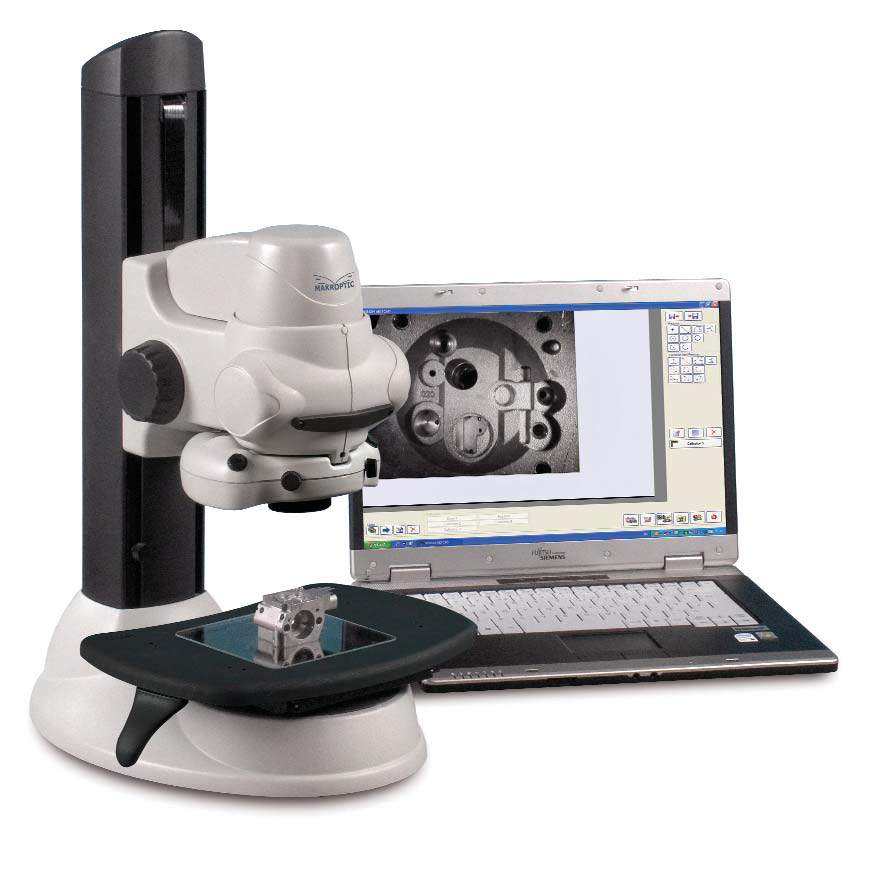

Sistem inspectie microscopica digitala cu captura imagini Vision Makroptic

Cod: Vision Makroptic




Brosura produs PDF, 0.3 Mb

Descriere

Digital Inspection System Overview



Makroptic is an exceptional digital inspection system designed for effortless image capture, archive and documentation. Whether you want to simply capture images, annotate, magnify or measure, Vision Makroptic simplifies imaging and documentation tasks in a powerful digital video and software package.



With an exceptionally large field of view (up to 205mm wide) Makroptic can capture images of complete samples and with a maximum zoom magnification of x60*, users can pin-point details with reference to the full sample.



  • Exceptionally large field of view, up to 205mm wide
  • 36:1 optical zoom permits detailed investigation of features (maximum magnification 60x*)
  • Manual or automatic focus
  • Full array of annotation tools, including text, arrows, markers and measurements
  • Perform simple 2D measurements (point-to-point, circles, angles, projections, areas and circumferences)
  • Save captured images in JPEG, BMP or TIFF format
  • CAD file import option, allowing inspection with CAD overlay
* Based on a 17" monitor at 1280 x 1024 resolution

  • Small footprint with high stability for applications requiring precision inspection
  • Illumination offers both incident and transmitted light for inspection of surface finish and component profiles
  • Comprehensive and easy-to-use software
  • Five calibrated zoom positions, maximising measurement accuracy and repeatability
  • Special effects include black & white, negative and mirror options
  • Five preset options for memorising settings
