Sistem masura microscopica 3D tridimensionala inalta precizie Vision Hawk

• Wide range of magnification x2.1 - x160
• Patented stereo Expanded-Pupil optical technology provides superb resolution and contrast
• Easy hand-to-eye coordination resulting in increased throughput, accuracy and reduced scrap
• Stereo optics for easy viewing and documenting of complex surfaces



• Routine Laboratory Microscope
• X40 - x1000 magnification range
• Brightfield, polarized light, phase contrast, darkfield and fluorescence
• Patented eyepieceless optics reduce operator fatigue (optional)
• Multi-viewing attachment for training (optional)
• Outstanding optical performance through infinity corrected objectives
• Range of illumination options, including phase contrast, darkfield and fluorescence

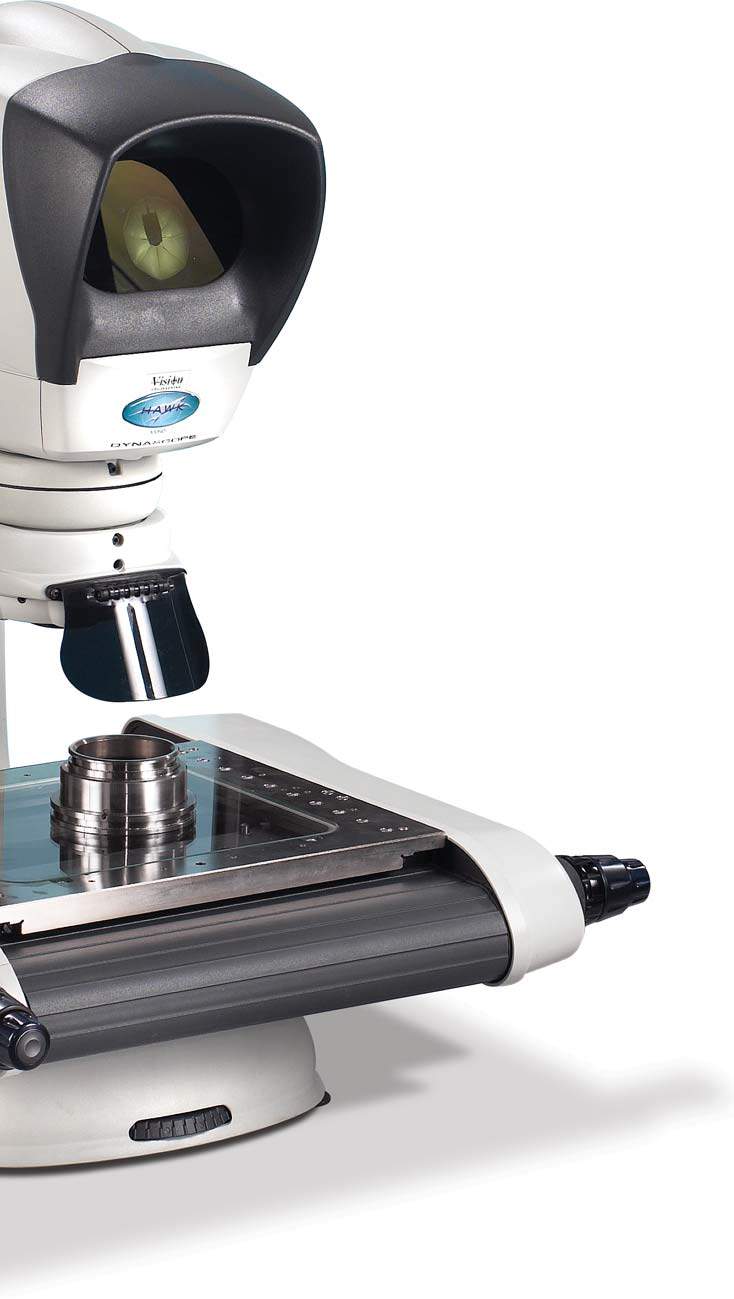

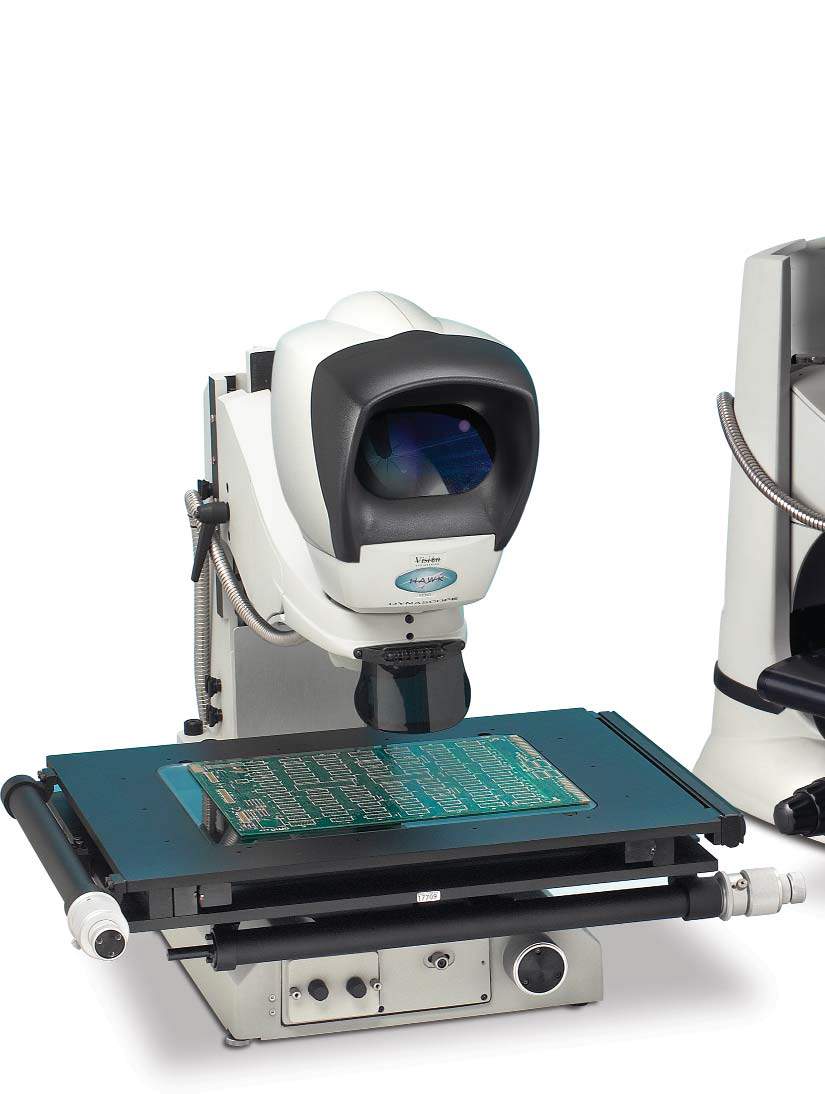

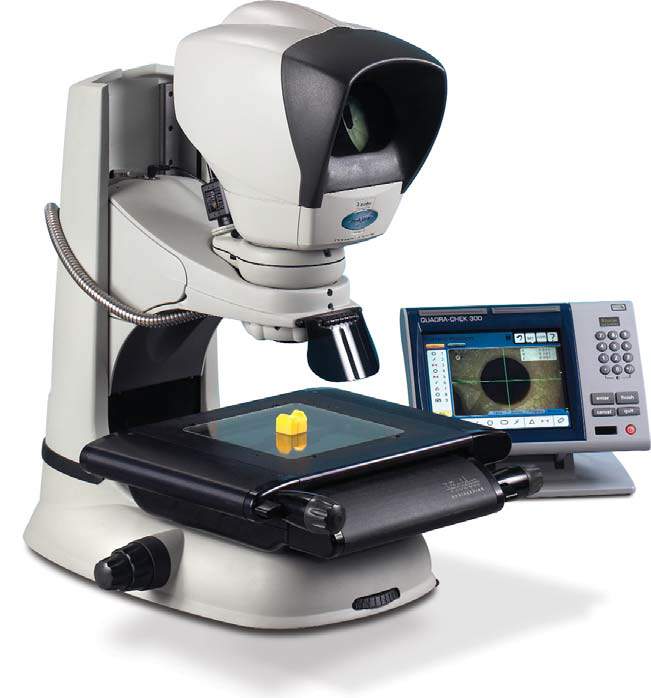

• Non-Contact Measuring Microscope for precision measurement & inspection
• 2-axis non-contact measurement, ideal for measuring
• 2-D features of small, intricate parts

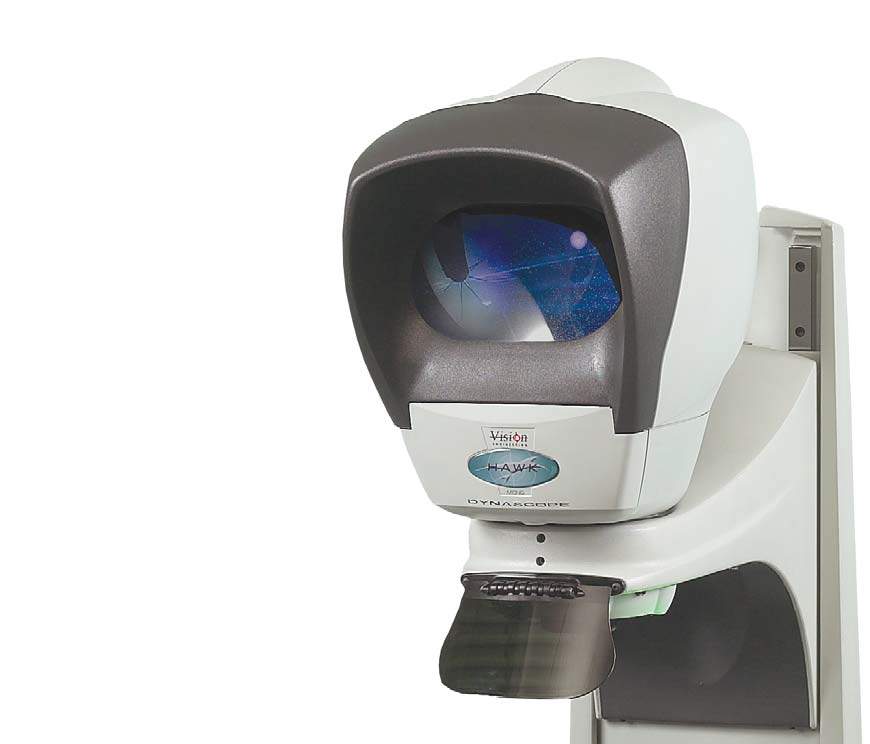

• Patented optical image clearly defines edges, offering superb resolution and contrast
• High accuracy, low investment system

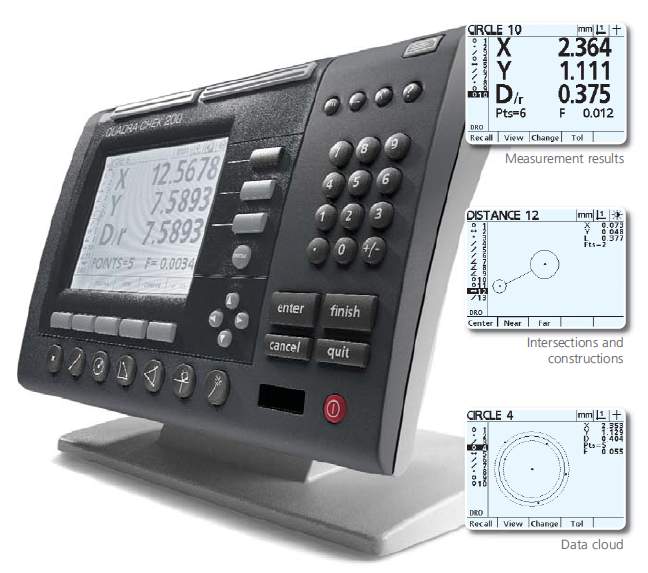

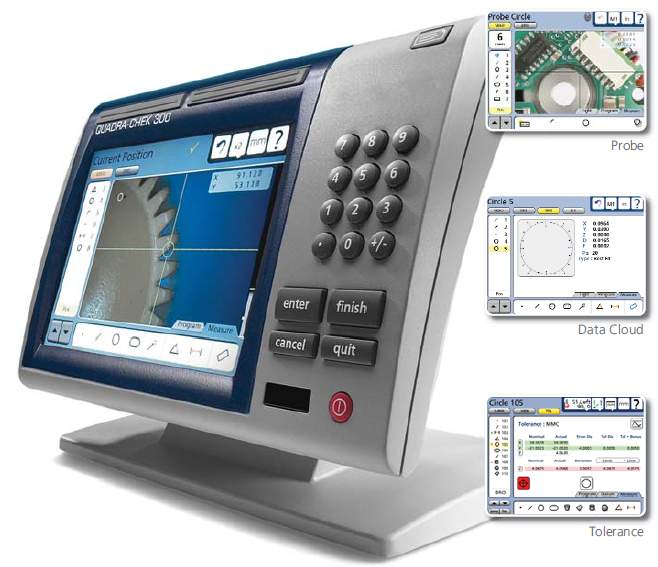

• Choice of rugged and intuitive microprocessor, or state-of-the-art touch-screen tablet PC

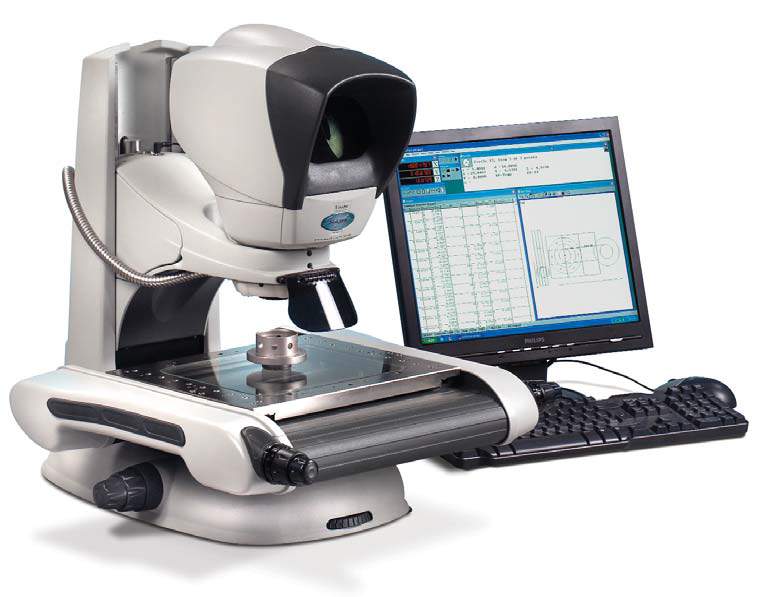

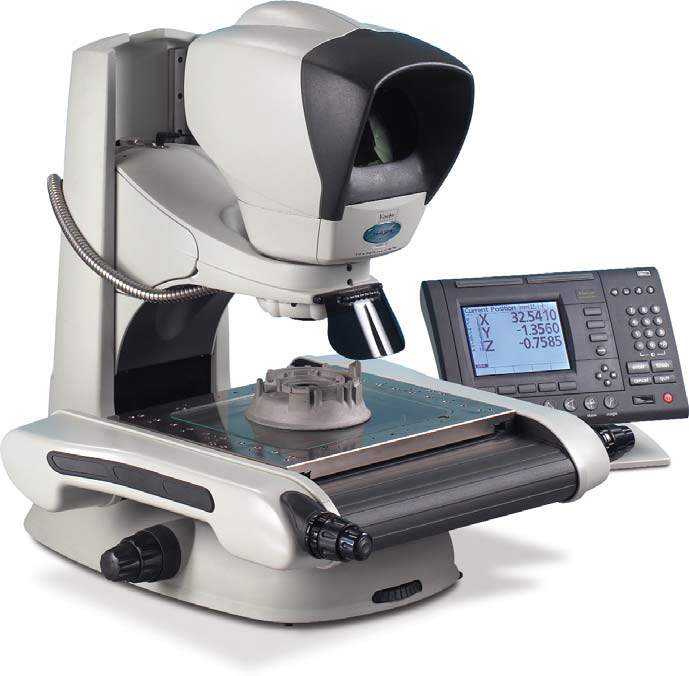

• 50 years of proven optical experience, packed into a powerful 3-axis non-contact video measuring system
• High accuracy, value-for-money system
• Powerful and intuitive with amazing simplicity
• Compact, robust system with small footprint

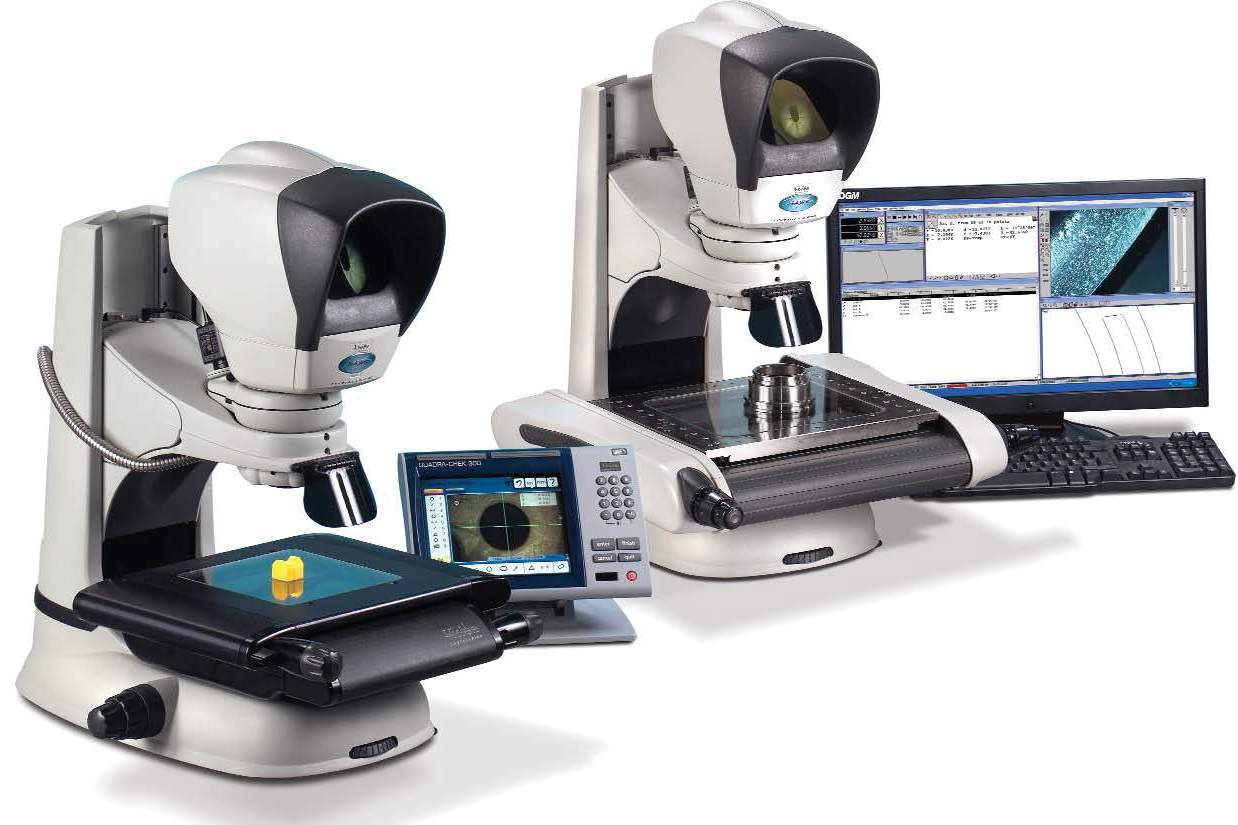

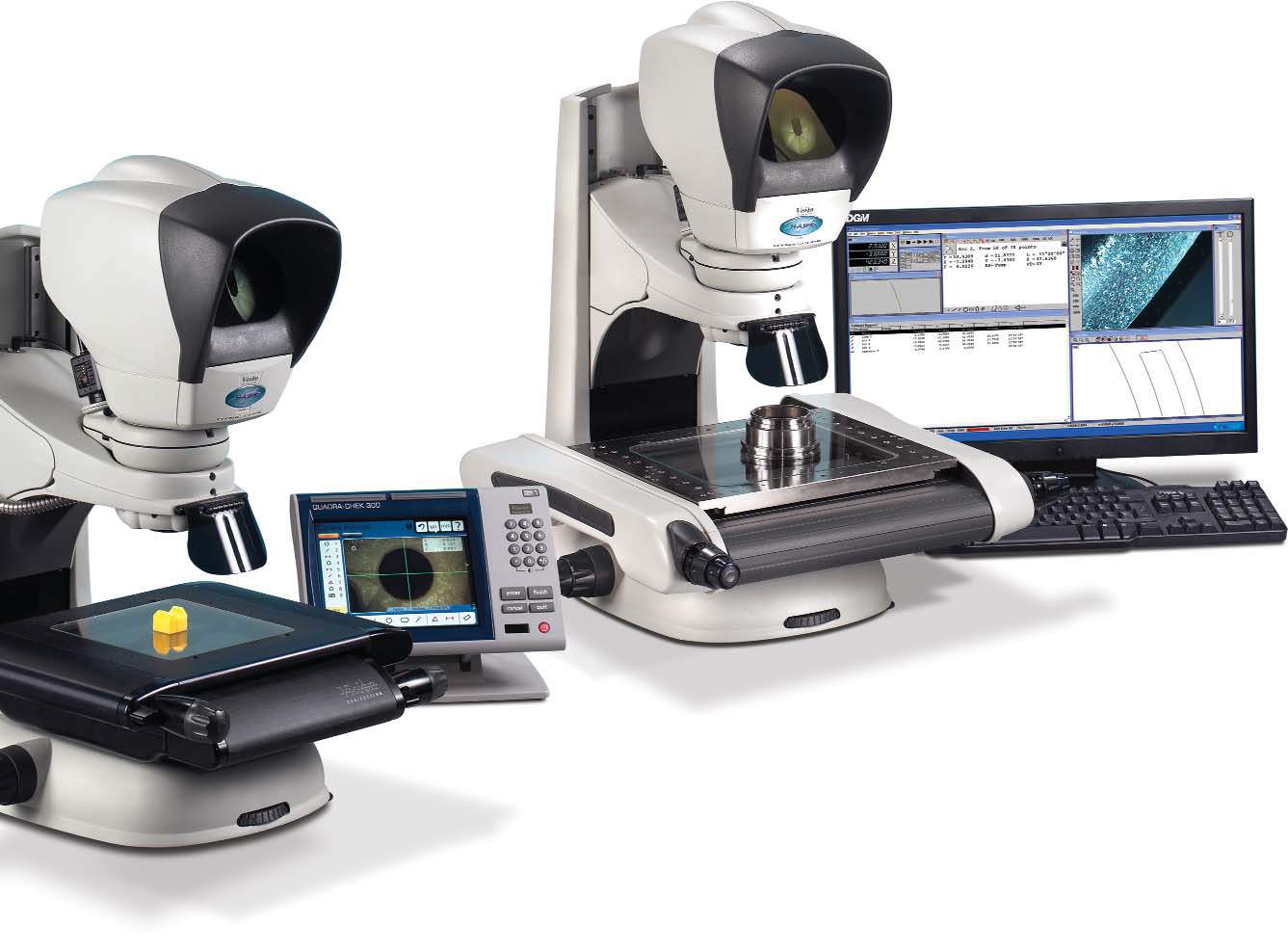

• Range of system configurations and options, including fully automated CNC control

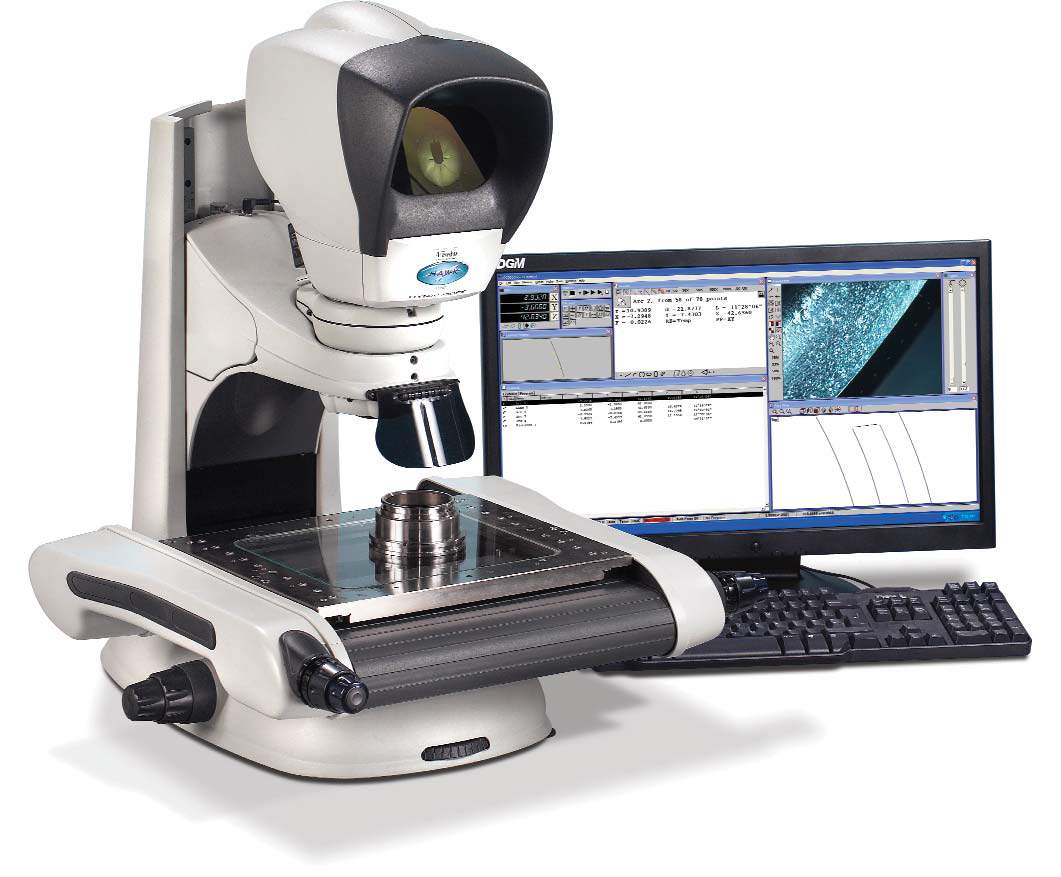

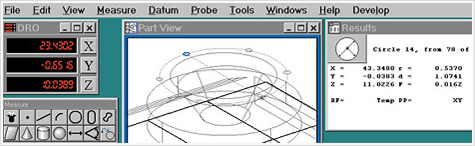

• Highly capable PC-based software with advanced data analysis and reporting
• High repeatable accuracy, value-for-money 3-axis video measuring machine



• Non-Contact Measuring Systems
• For inspection and measurement of 3-dimensional parts
• High repeatable accuracy 3-axis non-contact measurements
• Patented optical image clearly defines edges, offering superb resolution and contrast

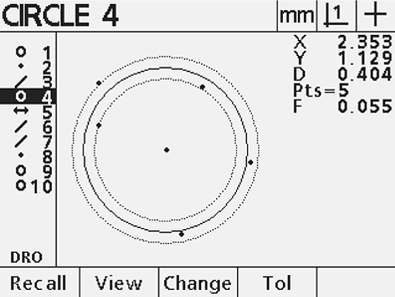

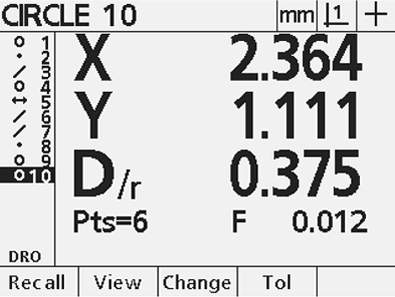

• Powerful and intuitive microprocessors deliver simple, fast results
• Optional video edge detection for higher throughput measurements
• Wide range of system configurations and options, including fully automated CNC control



• Comprised of a Mantis Elite optical head, with factory integrated and sealed high resolution† USB2.0 camera
• Permanently engaged digital camera permits simultaneous optical and digital viewing
• Image projection capability ideal for training purposes
• USB2.0 connectivity with easy-to-use PC-based software
• Simple image capture software allows for storage, reference and electronic communication
• Variety of image capture formats including: .bmp, .jpg and .png



• CMO (Common Main Objective) stereo microscopes
• High optical quality CMO stereo microscope
• Precision optics deliver high resolution, flat field and high contrast images with long working distances and large depth of field
• SX80: x8 - x64 standard magnification range (x256 max.)
• SX100: x8 - x80 standard magnification range (x320 max.)
• Modular systems for specific applications



• Exceptionally large field of view, up to 205mm wide
• 36:1 optical zoom permits detailed investigation of features (maximum magnification 60x*)
• Manual or automatic focus
• Full array of annotation tools, including text, arrows, markers and measurements
• Perform simple 2D measurements (point-to-point, circles, angles, projections, areas and circumferences)
• Save captured images in JPEG, BMP or TIFF format
• CAD file import option, allowing inspection with CAD overlay



• Routine Metallurgical Microscope
• x40 - x400 magnification range
• Brightfield and polarized light
• Optics offer superb image contrast and resolution
• Brightfield and polarized light illumination techniques
• Range of image capture options for documentation, analysis and reporting
• Compact stable design with infinity optical system



• High value, high specification patented design with superb optical performance
• x2 - x20 magnification options with quick change turret allows users to switch between low magnification inspection and high magnification fine detail tasks
• Patented eyepieceless optics maximize head freedom providing superb ergonomics and minimal eye fatigue
