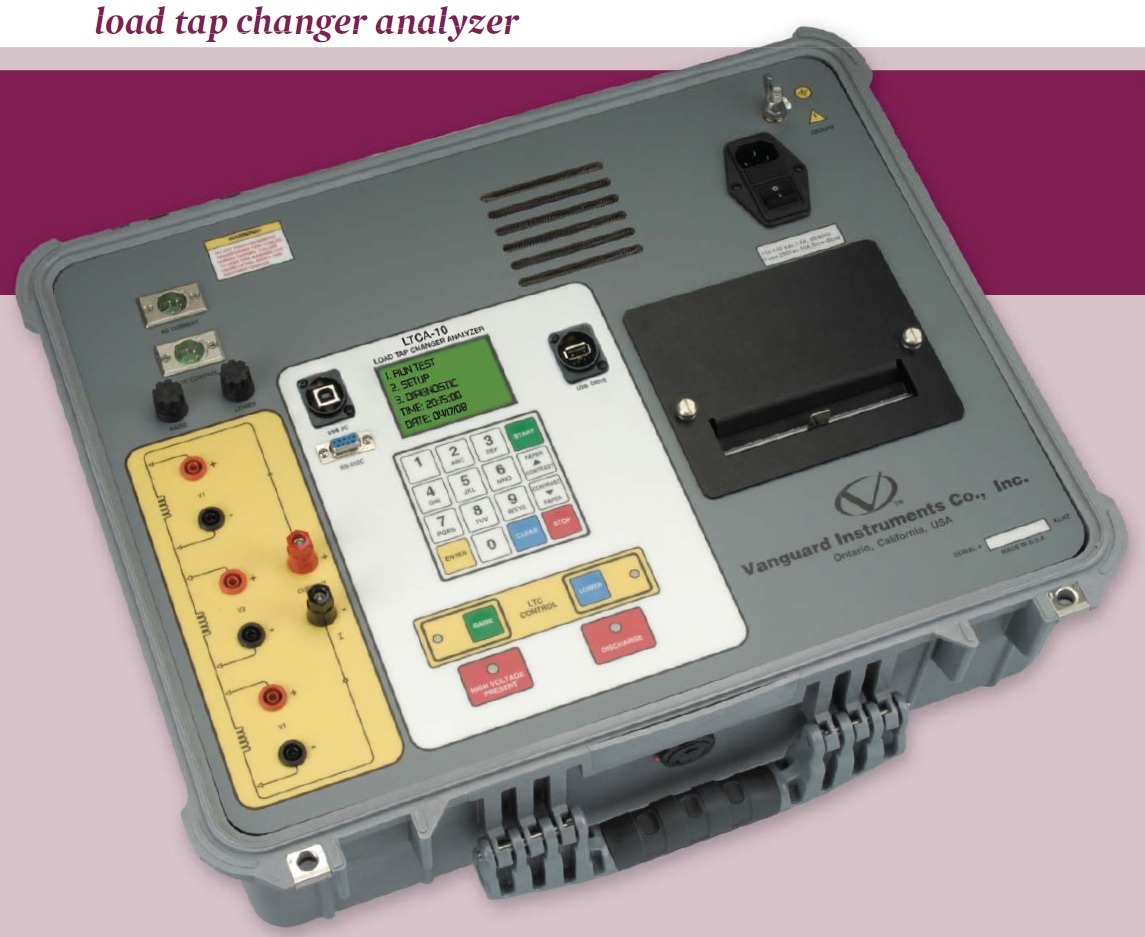

Analizor comutatoare ploturi in sarcina si rezistenta infasurari transformatoare Vanguard LTCA-10

Cod: Vanguard LTCA-10



Brosura produs PDF, 0.46 Mb


Descriere

  • Auto discharge circuit for operator safety
  • 3 resistance reading channels including one dynamic channel
  • Digital resistance reading from 1 micro-ohm to 500 ohms
  • Calculate equivalent resistance value at reference temperature
  • Stores 50 static records and 20 dynamic records
  • Built-in 4.5-inch thermal printer
  • Weighs less than 44 lbs.



The LTCA-10 Analyzer is a second generation load tap changer analyzer. The LTCA-10 accurately measures winding resistance of highly inductive power transformers. Triple resistance-reading channels allow the measurement of three winding resistances simultaneously. Four-wire (Kelvin) connections provide high accuracy and require no lead compensation. A special feature of this device is its ability to measure and graph the resistance trace of a transformer LTC during operation. Using a 60Vdc power supply, the LTCA-10 is capable of outputting 10 amperes.



Transformer Load Tap Changer

Control

Transformer tap positions can be changed remotely using

the unit’s built-in transformer load tap changer. This

remote-controlled tap changer feature eliminates the

need to manually change a transformer’s step-up and

step-down taps.



Resistance Reading Features

Three resistance-reading channels can measure resistance

from 1 micro-ohm to 500 ohms, and the test

current is programmable (1A, 5A, 10A). The LTCA-10

can also be used to measure EHV circuit-breaker contact

resistance, motor winding resistance or any low

resistance. If the transformer winding temperature is

entered, the LTCA-10 can calculate the equivalent resistance

value of the winding material (aluminum or copper)

at any standard reference temperature. Also, a special

test mode can run a test for up to 45 minutes while

saving resistance readings at one-minute intervals.



AC Motor Current Monitoring

One AC current monitoring channel is dedicated

to monitoring the LTC voltage regulator motor

current during operation. The motor current is

also printed on the resistance graph and can

help detect LTC voltage regulator motor problems.

An AC clamp-on current sensor is provided

with the LTCA-10.



Built-in Safety Features

At the end of each test, the LTCA-10 automatically

dissipates the stored energy in the transformer.

This discharge circuit will continue to

work even if the supply voltage is lost.



Dynamic Resistance Test

Features

One resistance reading channel is dedicated to

dynamic resistance testing. This test can monitor

the LTC voltage regulator contact resistance

during operation. A resistance graph, plotting

resistance over time, can be printed on the builtin

thermal printer and is very useful for detecting

LTC voltage regulator contact problems.



Built-in Thermal Printer

The built-in 4.5-inch wide thermal printer can

print the breaker contact analysis results in both

tabular and graphic formats.



Accesorii standard

Part number LTCA-10 LTCA-10, cables, software

Part number LTCA-10 CASE LTCA-10 shipping case

Part number TP4 4.5-inch wide thermal printer paper



Alte produse VANGUARD

MICRO-OHMMETRU REZISTENTA CONTACTE TRANSFORMATOR 600A VANGUARD DMOM-600

• 10 to 600A programmable test current
• Resitance range: 1.5m? at 600A to 450m? at 10A
• Measures circuit breaker contact resistance with safety ground on (with the Dual Ground option)
• Stores test records on-board or on external USB Flash drive
• Built-in 2.5" wide thermal printer


TESTER AUTOMAT RAPORT TRANSFORMARE TRANSFORMATOR TRIFAZIC TRIPOLAR VANGUARD ATRT-03A

• Capable of detecting 130 different 3-phase transformer types defined by ANSI, IEC, and Australian standards plus phase shifting transformers
• Store up to 128 transformer test-plans in Flash EEPROM
• Store up to 112 test records in Flash EEPROM
• Built-in USB Flash Drive Interface
• Computer Interface (RS-232C and USB Port)
• 4.5 Inch thermal printer
• Built-in transformer load tap changer


TRUSA TESTARE TRANSFORMATOARE DE CURENT DIGITALA PORTABILA VANGUARD EZCT-10

• measurement method ANSI/IEEE C57.12.90, IEC 60044-1 and ANSI/IEEE C57.13.1
• output test voltages 0..50 Vac @ 10A max; 0 - 200 Vac @ 10A max; 0 - 1200 Vac @ 1.5A max (5 min on, 10 min off)
• voltage reading range 0..1,250 Vac
• current ratio range 0.8..99: ±0.5%, 100..999: ±1.0%, 1,000..5,000: ±2%
• phase angle measurement 0..360 degrees
• Perform Saturation, Ratio and Polarity Tests
• Fully Automated
• Comprehensive Graphic and Tabulated Test Reports
• Plot Multiple Saturation Curves
• Computer Interface & pc software


TRUSA TESTARE TRANSFORMATOARE DE CURENT, RAPORT TRANSFORMARE, EXCITATIE, SATURATIE, POLARITATE VANGUARD EZCT-2000A

• Perform Saturation, Ratio and Polarity Tests
• Perform CT Winding Resistance Test
• Fully Automated
• Test record header information including company, substation name, circuit ID, manufacturer, CT serial number, operator name, and test record-comments
• Plot Multiple Saturation Curves
• Store 140 Records (of 10 Saturation Curves)
• Computer Interface
• USB Flash drive interface


ANALIZOR COMUTATOARE PLOTURI IN SARCINA SI REZISTENTA INFASURARI TRANSFORMATOARE VANGUARD LTCA-10

• Auto discharge circuit for operator safety
• 3 resistance reading channels including one dynamic channel
• Digital resistance reading from 1 micro-ohm to 500 ohms
• Calculate equivalent resistance value at reference temperature
• Stores 50 static records and 20 dynamic records
• Built-in 4.5-inch thermal printer
• Weighs less than 44 lbs.


TESTER REZISTENTE INFASURATORI TRANSFORMATOARE TRIFAZATE VANGUARD TRM-403

• accurately measure resistance from 1 micro-ohm to 500 Ohms
• Perform three phase test on a transformer without the need to switch cables
• Can provide individual Delta winding resistance values
• Can provide individual Wye (with no neutral) winding resistance values
• Demagnetize transformer after test
• Selectable test current from 1A to 40A
• Computer control via RS-232C, USB, or Bluetooth interface
• Built-in 2.5" wide thermal printer


TESTER AUTOMAT MASURA TRANSFORMARE TRANSFORMATOARE TRIFAZATE VANGUARD TRI-PHASE

• Generates its own 3-phase transformer test voltage from single-phase AC or DC Power input
• Capable of detecting 130 different 3-phase transformer types defined by ANSI, IEC,
• 64 x 128 graphic LCD screen
• Store up to 128 transformer test-plans in Flash EEPROM
• Store up to 112 test records in Flash EEPROM
• Built-in USB Flash Drive Interface
• Computer Interface (RS-232C and USB Port)
• 4.5 Inch thermal printer
• Built-in transformer load tap changer


TRUSA INJECTIE CURENTI PRIMARI 600A AC TESTARE RELEE DE PROTECTIE VANGUARD PCI-600

• Results displayed on a 4-line by 20-character backlit LCD
• Test currents from 10 to 600 amperes AC
• Also has an external-current input (0-10 A)
• timer reading range 1 m.. 2 hours


TRUSA TESTARE TRANSFORMATOARE DE CURENT, RAPORT TRANSFORMARE, CURBA EXCITATIE, GRAFIC SATURATIE VANGUARD EZCT-2000C PLUS

• Performs CT excitation, current-ratio, polarity, and phase angle tests
• Measures insulation resistance and winding resistance of the CT seconday windings
• Measures the CT's secondary burden
• Test record header information including company, substation name, circuit ID, manufacturer, CT serial number, operator name, and test record-comments
• Built-in 4.5-inch wide thermal printer
• Plot Multiple Saturation Curves
• Stores up to 128 CT test plans and 140 test records internally
• USB, Bluetooth, and USB Flash drive interface


ANALIZOR INTRERUPATOARE CU CARCASA TURNATA SI RELEE PROTECTIE SUPRASARCINA MOTOR VANGUARD MCCB-250

• 250 Ampere current source
• 4 current-source outputs (i.e., 5 A @ 120 Vac, 25 A @ 24 Vac, 120 A @ 6 Vac, 250 A @ 3 Vac)
• 4-line by 20-character LCD display
• Provides external current input (0-10 A)
