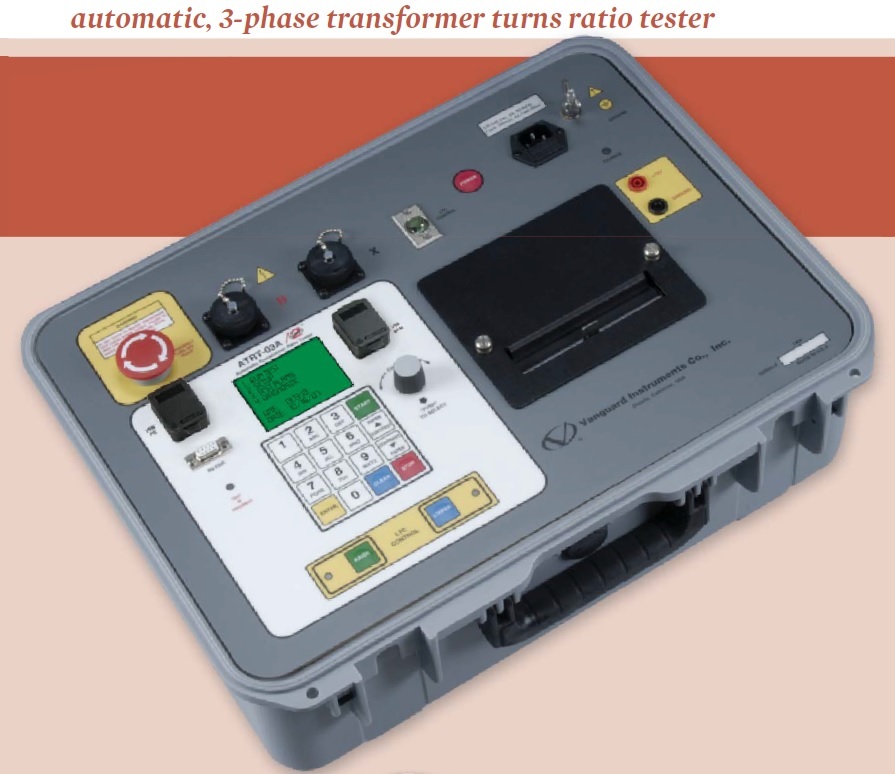

Tester automat raport transformare transformator trifazic tripolar Vanguard ATRT-03A

Cod: Vanguard ATRT-03A



Brosura produs PDF, 0.54 Mb


Descriere

  • Capable of detecting 130 different 3-phase transformer types defined by ANSI, IEC, and Australian standards plus phase shifting transformers
  • Store up to 128 transformer test-plans in Flash EEPROM
  • Store up to 112 test records in Flash EEPROM
  • Built-in USB Flash Drive Interface
  • Computer Interface (RS-232C and USB Port)
  • 4.5 Inch thermal printer
  • Built-in transformer load tap changer
  • Powered from the built-in rechargeable lead acid batteries (3 hours) or a single phase 100-240 Vac 50/60 Hz.





The Vanguard Instruments Company Model ATRT-03A Series 2 is Vanguard's third generation, microprocessor-based, automatic, three phase transformer turns-ratio tester.

The ATRT-03A Series 2 determines the transformer turns ratio using the IEEE C57.12.90 measurement method. The ATRT-03A Series 2 generates and outputs an excitation voltage to the three transformer primary winding. The included secondary voltage is sensed and the transformer turns ratio is calculated.

The ATRT-03A Series 2 is capable of measuring turns ratios from 0.8 to 15,000. The transformer turns-ratio, excitation current and phase-angle readings are displayed on the LCD. The built-in transformer type detection feature allows the ATRT-03A Series 2 to detect and test 130 transformer types defined by ANSI, CEI/IEC and Australian standards.



The ATRT-03A S2 can be used as a standalone

unit or can be computer-controlled. It can be

operated locally using its alpha-numeric keypad

and rotary switch. Information is displayed

on a back-lit LCD screen (128 x 64 pixels) that

is viewable in both bright sunlight and low-light

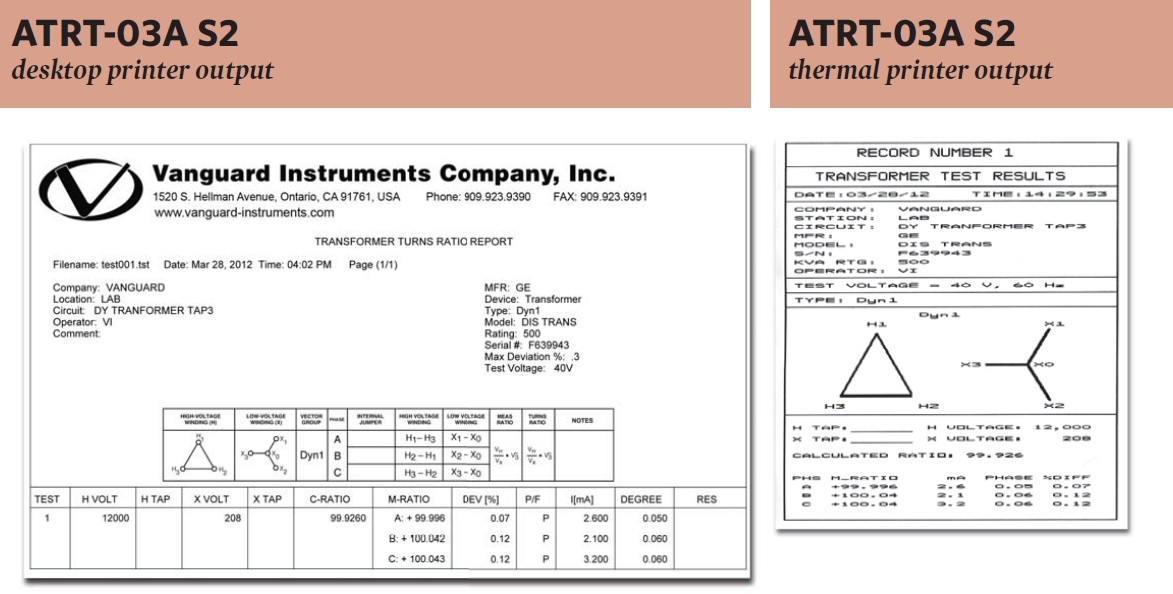

levels. Test reports can be printed in the fi eld on

the unit’s built-in 4.5-inch wide thermal printer.

The ATRT03A S2 can store up to 112 test records

and 128 test plans in Flash EEPROM. Test records

or test plans can be stored or transferred to and

from a PC via the available interfaces (RS-232C

port, USB port, USB Flash drive port).



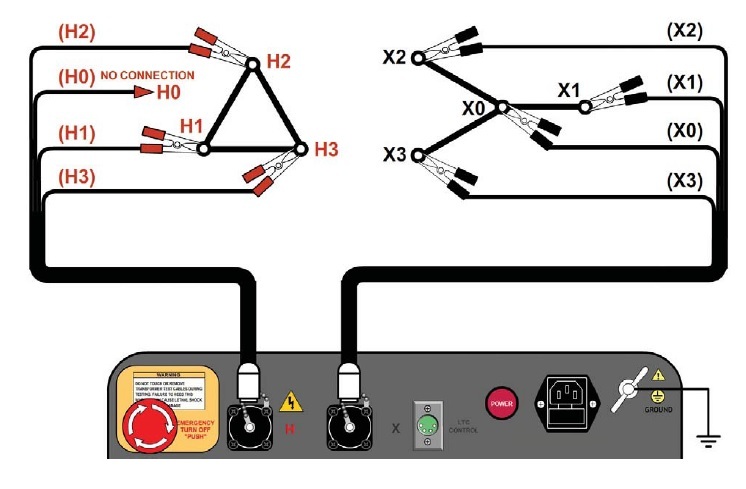

Transformer Test Voltages

The ATRT-03A S2 generates excitation test voltages

internally. Three test voltages (8 Vac, 40

Vac, 100 Vac) allow the ATRT-03A S2 to test

CT’s and PT’s, as well as power transformers.



Auto-Detect Transformer

Confi guration

The ATRT-03A S2 can automatically detect 130

different transformer types defi ned by ANSI,

CEI/IEC, and Australian standards.



Internal Test Record

Storage

Up to 112 test records can be stored in the ATRT-

03A S2’s Flash EEPROM memory. Each test

record may contain up to 99 turns-ratio, excitation

current, phase angle and nameplate voltage

readings. Test records can be recalled locally or

transferred to a PC via the available interfaces

(RS-232C port, USB port, USB Flash drive port).



Transformer Test Plans

The ATRT-03A S2 can store up to 128 transformer

test-plans in its Flash EEPROM. A testplan

is comprised of the transformer nameplate

voltages for each tap setting. The calculated

turns-ratio based on the nameplate voltages

is compared with the measured turns-ratio to

derive the percentage error and Pass/Fail results.

By using a test plan, a transformer can be

quickly tested and turns-ratio Pass/Fail reports

can be reviewed. Test plans can be created with

the PC software and can be transferred to the

ATRT-03A S2 via the available interfaces (RS-

232C port, USB port, USB Flash drive port).



Accesorii standard

Part number ATRT-03AS2 ATRT-03A S2, cables, and PC software

Part number ATRT-03AS2 CASE ATRT-03A S2 shipping case

Part number Paper-TP4 Thermal printer paper



Alte produse VANGUARD

MICRO-OHMMETRU REZISTENTA CONTACTE TRANSFORMATOR 600A VANGUARD DMOM-600

• 10 to 600A programmable test current
• Resitance range: 1.5m? at 600A to 450m? at 10A
• Measures circuit breaker contact resistance with safety ground on (with the Dual Ground option)
• Stores test records on-board or on external USB Flash drive
• Built-in 2.5" wide thermal printer


ANALIZOR CIRCUITE INTRERUPATOARE INALTA TENSIUNE VANGUARD DIGITMR PC

• dry-contact inputs 3 dry-contact channels
• timing windows 1 second, 10 seconds, or 20 seconds
• timing resolutions ±50 micro-seconds @ 1 sec. duration
• Inexpensive, PC-controlled EHV circuit breaker analyzer
• Optional "on-line" timing mode
• Small and light-weight
• Can test contact time, stroke, velocity, over-travel, and contact wipe


TRUSA INJECTIE CURENTI PRIMARI 600A AC TESTARE RELEE DE PROTECTIE VANGUARD PCI-600

• Results displayed on a 4-line by 20-character backlit LCD
• Test currents from 10 to 600 amperes AC
• Also has an external-current input (0-10 A)
• timer reading range 1 m.. 2 hours


TESTER AUTOMAT RAPORT TRANSFORMARE TRANSFORMATOARE TRIFAZICE TRIPOLARE VANGUARD ATRT-03 S2

• Highest ratio: 0.8 - 15,000
• Capable of detecting 130 different 3-phase transformer types defined by ANSI, IEC, and Australian standards
• 3 Test voltages available: 8Vac, 40Vac, 100Vac
• Phase angle and excitation current measuring
• Computer Interface (RS-232C and USB Port)
• USB flash drive interface
• Name-plate turns ratio calculation
• Computed % error based on measured and calculated ratio
• Optional 4.5" thermal printer


TESTER REZISTENTE INFASURATORI TRANSFORMATOARE TRIFAZATE VANGUARD TRM-403

• accurately measure resistance from 1 micro-ohm to 500 Ohms
• Perform three phase test on a transformer without the need to switch cables
• Can provide individual Delta winding resistance values
• Can provide individual Wye (with no neutral) winding resistance values
• Demagnetize transformer after test
• Selectable test current from 1A to 40A
• Computer control via RS-232C, USB, or Bluetooth interface
• Built-in 2.5" wide thermal printer


MICROOHMMETRU AUTOMATIC REZISTENTE DE CONTACT INTRERUPATOARE 200A VANGUARD AUTO-OHM 200 S3

• 1 to 200A programmable test current
• Resitance range: 1µ?..10m? at 200A to 1µ?..5? at 1A
• Very lightweight: 16.8 lbs. (7.6 Kg)
• Measures circuit breaker contact resistance with safety ground on (with the Dual Ground option)
• Stores test records on-board or on external USB Flash drive
• Rugged, 44-key "QWERTY" membrane keypad
• Windows XP/Vista/7 Analysis Software (included with purchase)


TESTER RAPORT TRANSFORMARE TRANSFORMATOARE DE TENSIUNE CAPACITIVE VANGUARD CVT-765

• Standalone or computer-controlled
• Can test CVT's rated up to 765 KV
• Displays turns-ratios from 75-15,000
• Calculates turns-ratio percentage error when nameplate voltages are provided


ANALIZOR COMUTATOR PLOTURI IN SARCINA SI REZISTENTA INFASURARE TRANSFORMATOR TRIFAZAT VANGUARD LTCA-40

• Auto discharge circuit for operator safety
• 3 resistance reading channels including one dynamic channel
• Digital resistance reading from 1 micro-ohm to 500 ohms
• 60Vdc power supply , outputting 40 amperes
• Calculate equivalent resistance value at reference temperature
• Stores 50 static records and 20 dynamic records
• Built-in 4.5-inch thermal printer


MICROHMMETRU REZISTENTE CONTACT INTRERUPATOARE 200A VANGUARD DMOM-200 S3

• 1 to 200A programmable test current
• Resitance range: 1µ?..10m? at 200A to 1µ?..5? at 1A
• Very lightweight: 19.8 lbs. (8.9 Kg)
• Measures circuit breaker contact resistance with safety ground on (with the Dual Ground option)
• Stores test records on-board or on external USB Flash drive
• Built-in 2.5" wide thermal printer


TRUSA TESTARE TRANSFORMATOARE DE CURENT DIGITALA PORTABILA VANGUARD EZCT-10

• measurement method ANSI/IEEE C57.12.90, IEC 60044-1 and ANSI/IEEE C57.13.1
• output test voltages 0..50 Vac @ 10A max; 0 - 200 Vac @ 10A max; 0 - 1200 Vac @ 1.5A max (5 min on, 10 min off)
• voltage reading range 0..1,250 Vac
• current ratio range 0.8..99: ±0.5%, 100..999: ±1.0%, 1,000..5,000: ±2%
• phase angle measurement 0..360 degrees
• Perform Saturation, Ratio and Polarity Tests
• Fully Automated
• Comprehensive Graphic and Tabulated Test Reports
• Plot Multiple Saturation Curves
• Computer Interface & pc software
