Cod: MSO5072 MSO5074 MSO5102 MSO5104 MSO5204 MSO5354
Brosura produs 1
PDF, 7.52 Mb
Descriere
MSO5354 (350 MHz, 8 GSa/s, 100 Mpts, 4+16 CH MSO)
MSO5204 (200 MHz, 8 GSa/s, 100 Mpts, 4+16 CH MSO)
MSO5104 (100 MHz, 8 GSa/s, 100 Mpts, 4+16 CH MSO)
MSO5102 (100 MHz, 8 GSa/s, 100 Mpts, 2+16 CH MSO)
MSO5074 (70 MHz, 8 GSa/s, 100 Mpts, 4+16 CH MSO)
MSO5072 (70 MHz, 8 GSa/s, 100 Mpts, 2+16 CH MSO)
Analog bandwidth: 350 MHz, 200 MHz, 100 MHz, and 70 MHz; bandwidth upgrade option supported
2 or 4 analog channels (upgradable), standard 16 digital channels(LA probe required)
Up to 8 GSa/s real-time sample rate
Up to 200 Mpts memory depth (option)
High waveform capture rate (over 500,000 wfm/s)
Auto measurement of 41 waveform parameters; full-memory hardware measurement function
A variety of serial protocol triggers and decodes
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
Independent search, navigation keys, and event table
Built-in advanced power analysis software (option)
Bode plot for loop test analysis
Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic
analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter,
a frequency counter and totalizer, and a protocol analyzer
9-inch capacitive multi-touch screen, 256-level intensity grading display, with color
persistence

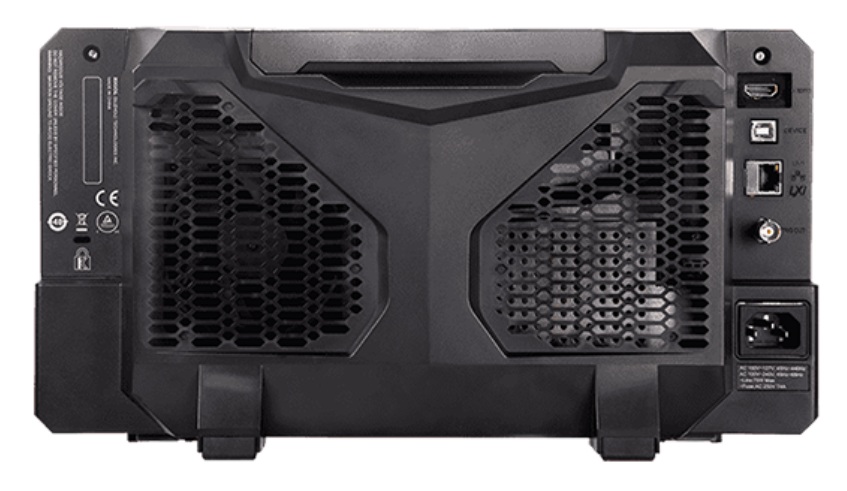

Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and
USB-GPIB
Web Control remote command
Unique online version upgrade
Novel and delicate industrial design, easy to operate

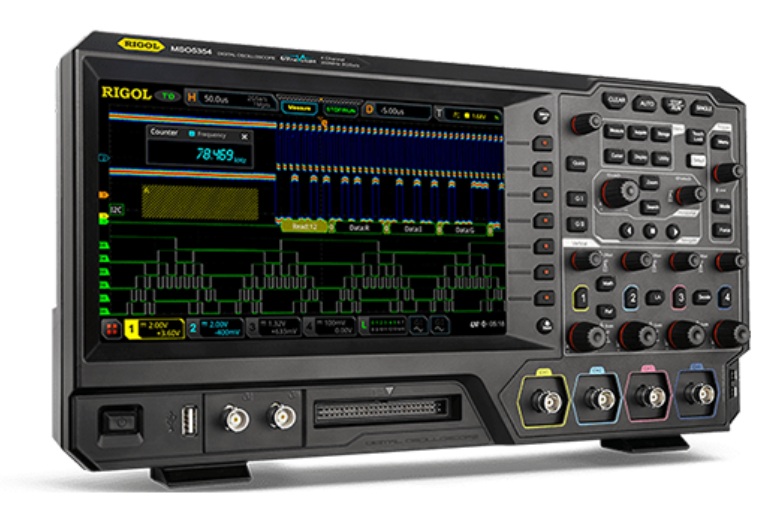

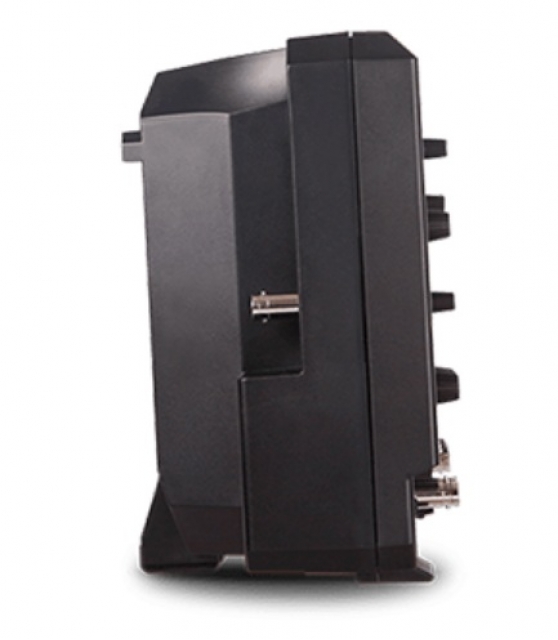

MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed
based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch
screen, the MSO5000 series integrates 7 independent instruments into one, delivering
super sample bandwidth ratio, extremely high memory depth, and other excellent
specifications. It is compact and portable in design, and all of the MSO series products
support multiple channels, bandwidths, and the upgrade of the analysis software. As it
integrates many functions of multiple instruments, different user groups can have more
choices in selecting their desired product based on their needs, helping them save their
budget to a large extent while enjoying the superior test support and user experience.
Accesorii standard
Standard Accessories
Power cord conforming to the standard of the destination country -
USB cable CB-USBA-USBB-FF-150
2 or 4 passive probes (350 MHz) PVP2350
Quick guide (hard copy) -
Optiuni recomandate
Optional Accessories
16 digital channels active logic probe (dedicated probe for MSO5000 series) PLA2216
Front panel cover MSO5000-FPC
Rack mount kit MSO5000-RM
USB-GPIB interface converter USB-GPIB
Near-field probe NFP-3
Power analysis phase difference correction jig RPA246
Digital oscilloscope demonstration plate DK-DS6000
Bandwidth Upgrade Option
Bandwidth upgrades from 70 MHz to 100 MHz MSO5000-BW0T1
Bandwidth upgrades from 70 MHz to 200 MHz MSO5000-BW0T2
Bandwidth upgrades from 70 MHz to 350 MHz MSO5000-BW0T3
Bandwidth upgrades from 100 MHz to 200 MHz MSO5000-BW1T2
Bandwidth upgrades from 100 MHz to 350 MHz MSO5000-BW1T3
Bandwidth upgrades from 200 MHz to 350 MHz MSO5000-BW2T3
Memory Depth Option
Maximum memory depth up to 200 Mpts MSO5000-2RL
Channel Number Upgrade Option
Upgrade the number of analog channels to 4 (only available for the MSO5XX2 model) MSO5000-4CH
Bundle Option
Function and application bundle option, including MSO5000-COMP, MSO5000-EMBD, MSO5000- AUTO, MSO5000-FLEX, MSO5000-AUDIO, MSO5000-AERO, MSO5000-AWG, and MSO5000- PWR
MSO5000-BND
Serial Protocol Analysis Option
PC serial bus trigger and analysis (RS232/UART) MSO5000-COMP
Embedded serial bus trigger and analysis (I2C and SPI) MSO5000-EMBD
Auto serial bus trigger and analysis (CAN and LIN) MSO5000-AUTO
FlexRay serial bus trigger and analysis (FlexRay) MSO5000-FLEX
Audio serial bus trigger and analysis (I2S, only available for the MSO5XX4 model or the model installed
with the MSO5000-4CH option) MSO5000-AUDIO
MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553) MSO5000-AERO
Measurement Application Option
Dual-channel 25 MHz arbitrary waveform generator MSO5000-AWG
Built-in Power Analysis MSO5000-PWR
