3 GHz Bandwidth
All digital IF Design
10 Hz Minimum Resolution Bandwidth
Standard Preamplifier for high performance noise levels down to DANL of -148 dBm
Save thousands of measurements and system configurations with 1 GB of internal storage
Options including Tracking Generator, Advanced Measurements, PreAmplifier, and Case

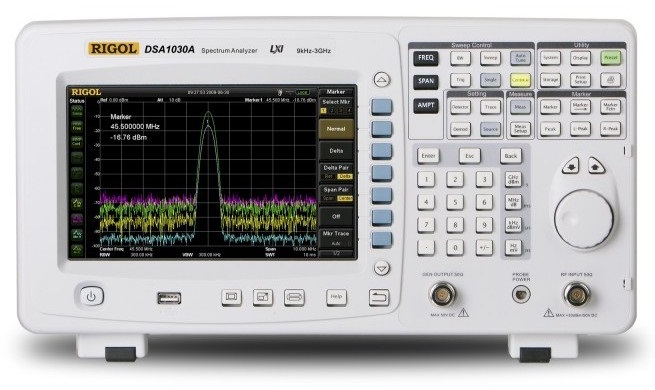

Model	DSA1030A
Frequency Range	9kHz - 3GHz
DANL*1	-148dBm
Phase Noise	-88dBc/Hz @10kHz offset typical
Total Amplitude Accuracy*2	<1.0dB
Minimum RBW	10Hz
RF Input Maximum Level	+30dBm
Interfaces	USB host & device, LXI-C (Ethernet), GPIB (optional), VGA output, 10 MHz REF In, 10 MHz REF Out, External Trigger In
Trigger Source	Free Run, Video, External
External Trigger Level	5 V TTL
Dimensions
Weight	6.2kg(without battery)

*1: 10Hz RBW, standard preamplifier on, typical
*2: 95% confidence level
