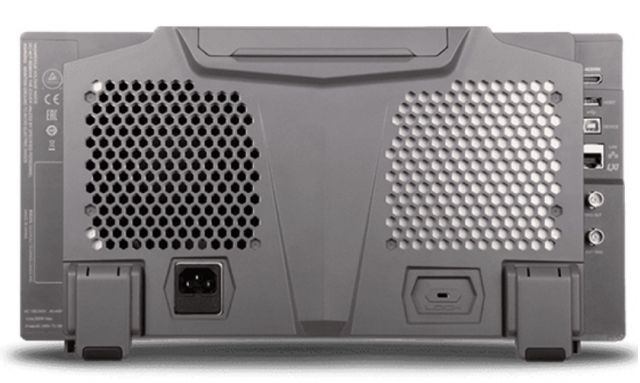

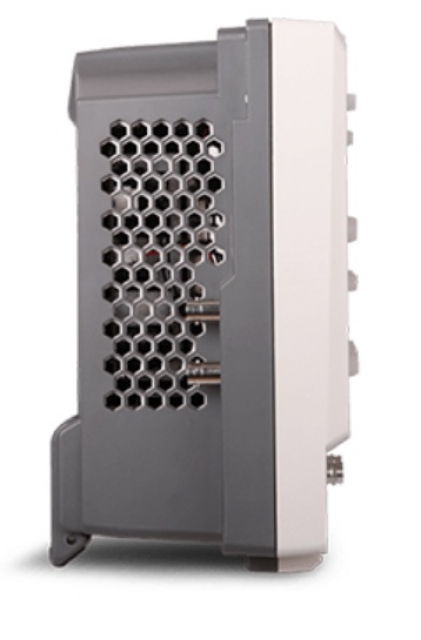

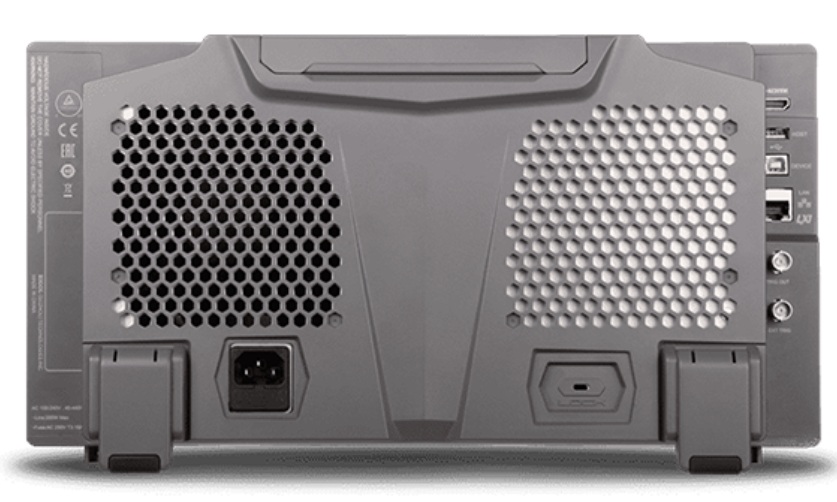

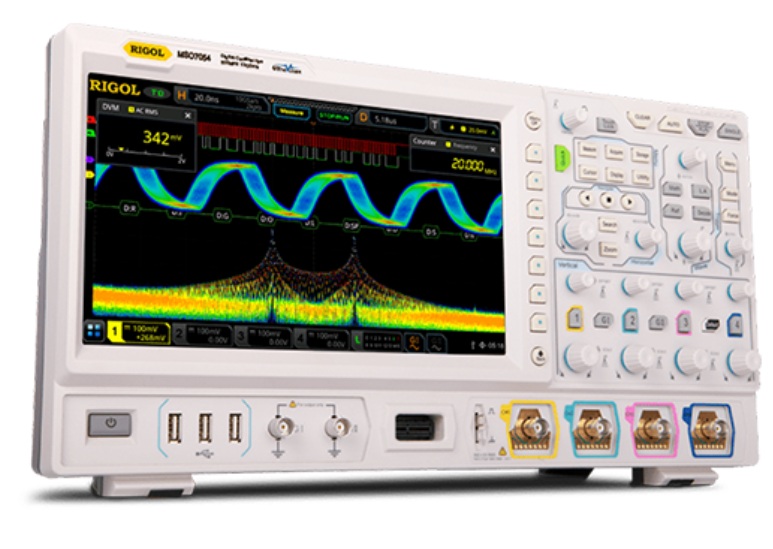

Osciloscop digital RIGOL MSO/DS7000

Cod: MSO7054 MSO7034 MSO7024 MSO7014 DS7054 DS7034 DS7024 DS7014



Brosura produs PDF, 5.21 Mb


Descriere

MSO7054 (500 MHz, 10 GSa/s, 100 Mpts, 4+16 CH MSO)
MSO7034 (350 MHz, 10 GSa/s, 100 Mpts, 4+16 CH MSO)
MSO7024 (200 MHz, 10 GSa/s, 100 Mpts, 4+16 CH MSO)
MSO7014 (100 MHz, 10 GSa/s, 100 Mpts, 4+16 CH MSO)
DS7054 (500 MHz, 10 GSa/s, 100 Mpts, 4CH DS)
DS7034 (350 MHz, 10 GSa/s, 100 Mpts, 4CH DS)
DS7024 (200 MHz, 10 GSa/s, 100 Mpts, 4CH DS)
DS7014 (100 MHz, 10 GSa/s, 100 Mpts, 4CH DS)


Analog bandwidth: 500 MHz, 350 MHz, 200 MHz, and 100 MHz; bandwidth upgrade option supported

4 analog channels, 1 EXT channel, and 16 digital channels (Option)

Up to 10 GSa/s real-time sample rate

Up to 500 Mpts memory depth (Option)

High waveform capture rate (over 600,000 waveforms per second)

Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions

Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer

A variety of serial protocol triggers and decodes

Auto measurement of 41 waveform parameters; full-memory hardware measurement function

A variety of math operations, built-in enhanced FFT analysis, and peak search function

Waveform histogram analysis (standard)

Independent search, navigation keys, and event table

Built-in advanced power analysis software (option)

User-defined one-key quick operation

10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence

Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB

Web Control remote command

Unique online version upgrade

Novel and delicate industrial design, easy to operate





MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope

designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 7

independent instruments into one, the MSO7000/DS7000 series is equipped with super high

sample bandwidth ratio, extremely high memory depth, clear display, excellent waveform

capture rate, and powerful data analysis functions. Many of its specifications have reached

the top level in the industry. With sound solutions for mainframes, optional&accessories,

and application software, it has aroused great attention from customers in the areas such as

industrial control, power supply, and automotive electronics.




Accesorii standard

Standard Accessories

Power cord conforming to the standard of the destination country -

USB cable CB-USBA-USBB-FF-150

4 passive probes (500 MHz) RP3500A

1 logic analyzer probe (only for MSO model) RPL2316

Front panel cover DS7000-FPC

Quick guide (hard copy) -



Optiuni recomandate

Recommended Accessories

Active differential probe (1.5 GHz BW) RP7150

Active differential probe (800 MHz BW) RP7080

Active single-ended probe (1.5 GHz BW) RP7150S

Active single-ended probe (800 MHz BW) RP7080S

Rack mount kit RM6041

USB-GPIB interface converter USB-GPIB

Near-field probe NFP-3

Power analysis phase difference correction jig RPA246

Digital oscilloscope demonstration plate DK-DS6000



Bandwidth Upgrade Option

Bandwidth upgrades from 100 MHz to 200 MHz DS7000-BW1T2

Bandwidth upgrades from 100 MHz to 350 MHz DS7000-BW1T3

Bandwidth upgrades from 100 MHz to 500 MHz DS7000-BW1T5

Bandwidth upgrades from 200 MHz to 350 MHz DS7000-BW2T3

Bandwidth upgrades from 200 MHz to 500 MHz DS7000-BW2T5

Bandwidth upgrades from 350 MHz to 500 MHz DS7000-BW3T5



Memory Depth Option

Maximum memory depth up to 250 Mpts DS7000-2RL

Maximum memory depth up to 500 Mpts DS7000-5RL



Bundle Option

Function and application bundle option, including DS7000-COMP, DS7000-EMBD, DS7000-AUTO,

DS7000-FLEX, DS7000-AUDIO, DS7000-AERO, MSO7000-AWG, and DS7000-PWR DS7000-BND

Serial Protocol Analysis Option

PC serial bus trigger and analysis (RS232/UART) DS7000-COMP

Embedded serial bus trigger and analysis (I2C, SPI) DS7000-EMBD

Auto serial bus trigger and analysis (CAN, LIN) DS7000-AUTO

FlexRay serial bus trigger and analysis (FlexRay) DS7000-FLEX

Audio serial bus trigger and analysis (I2S) DS7000-AUDIO

MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553) DS7000-AERO



Measurement Application Option

Dual-channel 25 MHz arbitrary waveform generator (only for MSO model) MSO7000-AWG

Built-in power analysis DS7000-PWR
