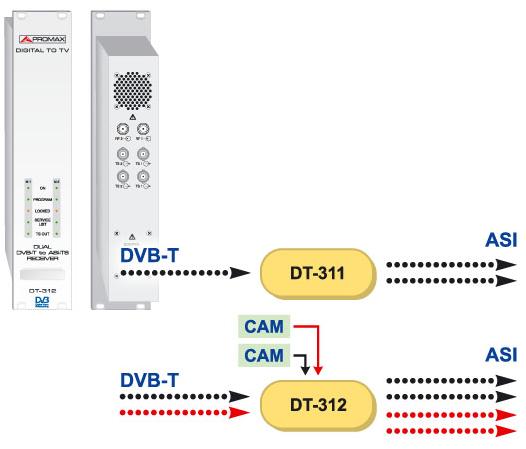

Les modules DT-312 sont des modulateurs COFDM compatibles avec le standard DVB-T (TNT). Ils permettent de recevoir un multiplex TNT et en extraire le flux numérique sous dorme de TS-ASI.

Chacun des deux récepteurs contenus dans le DT-312 poss�de deux sorties TS-ASI identiques.

RF INPUT
Connector

2 DVB-T independent inputs
F-Type female, Impedance 75 ?

TS OUTPUT
Connector

2 independent double DVB-ASI outputs
BNC female, Impedance 75 ?

CONFIGURATION AND
POWER SUPPLY

Through the DT-800 Control and Power module.

Control can be made remotely from a PC

Optiuni recomandate

DT-800B	Control unit and power supply.
DT-802	Control unit and redundant power supply modules.
DT-900	Rack and wall mounted structure.
DT-900B	Rack mounted structure.
DT-901	Empty module plates..
DT-902B	Power CAM modules for smart cards..
CC-043	Supply and control cable with 3 connexions for DT-800B (included)
CC-044	Supply and control cable with 4 connexions for DT-800B (included)
CC-143	Supply and control cable with 3 connexions for DT-802 (included)
CC-144	Supply and control cable with 4 connexions for DT-802 (included)
OP-XXX-V	Output in the range 170-650 MHz for modules with DVB-T..
OP-800-P	Option required to use DT-800B with 3 x DT-730 modules
OP-212-D	Dual independent output for DT-212B
OP-504-S	TS-ASI output option for DT-504B

	RECEIVERS WITH ASI-TS OUTPUT
DT-302	Dual DVB-S/S2 receiver with CAM, ASI-TS output.
DT-312	Dual DVB-T receiver, ASI-TS output.
DT-324-M	IP receiver to ASI-TS output (MPTS).
DT-324-S	IP receiver to ASI-TS output (SPTS).

	IP STREAMERS
DT-421-M	IP Streamer. ASI-TS inputs, IP output (MPTS)
DT-421-S	IP Streamer. ASI-TS inputs, IP output (SPTS)

	COMBINERS - AMPLIFIERS
DT-700	4x1 quadruple DVB-T combiner .
DT-710	8 input DVB-T combiner with a 117 dBuV (+10 dBm) one single output.
DT-722	4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm) one single output.
DT-730	DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).
DT-610	Optical transmitter module
DT-620	Optical receiver module
