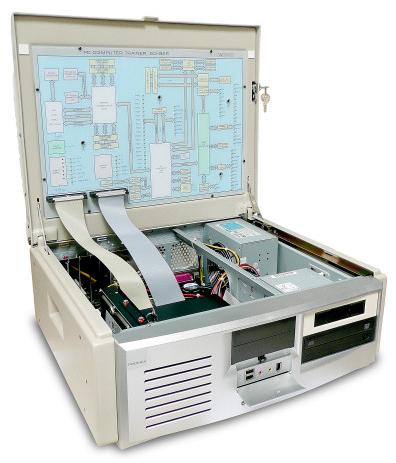

The EO-865 permits the assembly, installation and configuration of all the components composing a multimedia PC of latest generation. It is composed of widely spread and high reliability hardware components manufactured with the latest technology. Its multiple test points enable the main electrical signals, with the aim that the student may establish failure diagnostic and repairing methods.

SYSTEM FEATURES	INTEL motherboard, Intel Core™ 2 Duo 2,2 GHz processor 1 GB DDR2 (800 MHz) 3 x PCI Express slots + 2 x PCI slots 8 USB ports + 1 serial port + 1 parallel port 8 Serial ATA channels High Definition AC'97 audio system PCI Express video card (64 MB) SATA 500 GB hard disk 3½ 1,44 MB disk drive + DVD IDE x16 Internal 56,000 bps Modem/Fax Multimedia 15" color monitor
TEST POINTS	Accessible from the Block Diagram
FAULT SIMMULATOR	By micro-switches on a locked compartment
DOCUMENTATION	Theory, practical and professor manuals
